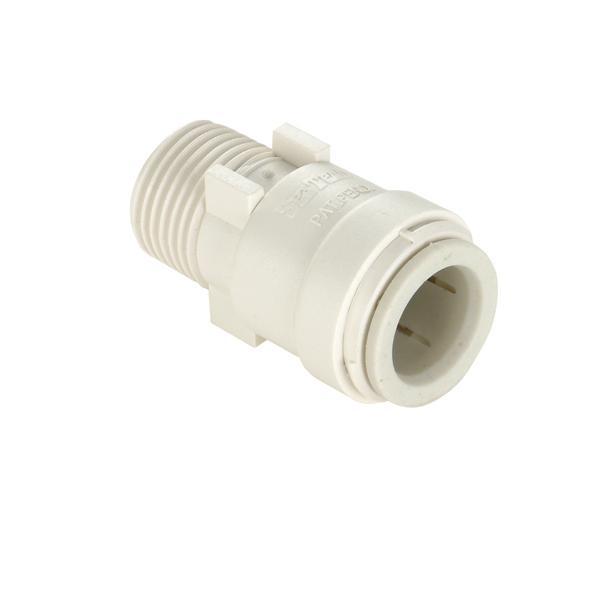

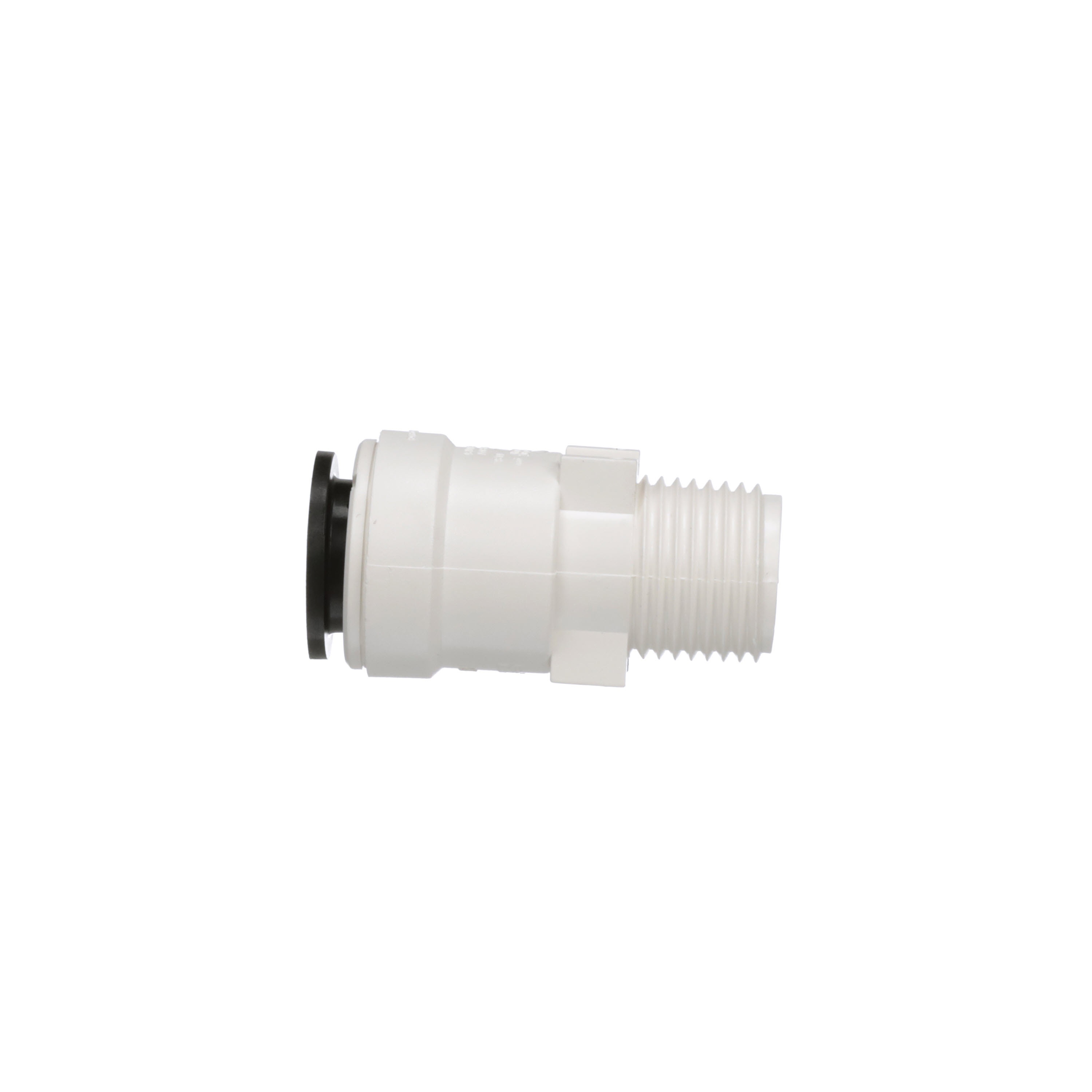

Sea Tech® 0959033 35 Series Type 01 Quick-Connect Male Adapter, 3/8 in Nominal, CTS x MNPT End Style, Polysulfone, Import
This 3/8 inch CTS x 3/8 inch NPT AquaLock(TM) plastic male adapter works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
-
BrandSea Tech®
-
UPC098268298567
-
Manufacturer Part Number0959033
-
CountryUSA
-
Temperature Rating75 deg F
-
MaterialPolysulfone
-
Fitting/Connector TypeAdapter
-
Pressure Rating250 psi
-
ColorOff-White
-
TypeType 01 Quick-Connect
-
Nominal Size3/8 in
-
Series35 Series
-
Dimensions1-3/4 in L x 1 in H
-
Domestic/ImportImport
-
End StyleCTS x MNPT
- Works with copper, CPVC, PEX and CTS rated pipe
- Zero leak connections
- Connects to multiple materials
- Rotates under pressure after installed for high flexibility during installation
- No tools necessary for installation or removal
- Higher flow compared to barb fittings, no internal restrictions
- The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25%) of lead by weight
- Can be used for hot and cold water applications, including behind the wall applications
-
Alternative Part Number3501-0806
-
UNSPSC40183102
-
Package DescriptionEACH
-
Standards/ApprovalsASSE 1061|ASTM F877|CSA B137.5|NSF 14|NSF 61|UPC Listed|PROP65: This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
-
Warranty10 Years Limited
-
Catalog
-
Specification Sheet
