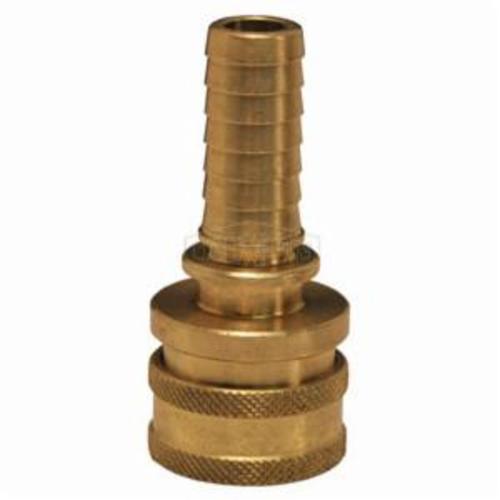

Dixon® 8ES8-B E Series Straight Through Interchange Hose Coupling, 1 in Nominal, Hose Barb, Brass, Domestic
Dixon® 8ES8-B E Series Straight Through Interchange Hose Coupling, 1 in Nominal, Hose Barb, Brass, Domestic
-
BrandDixon®
-
UPC089109820597
-
Manufacturer Part Number8ES8-B
-
CountryUSA
-
MaterialBrass
-
Pressure Rating1200 psi
-
TypeStraight Through Interchange
-
Nominal Size1 in
-
SeriesE Series
-
Domestic/ImportDomestic
-
Length4.58 in
-
End StyleHose Barb
- Straight through Pressure-Wash interchange
- Interchanges with Parker ST-Series, Foster FST-Series, Tomco Series-ST, Hansen ST-Series
- These couplers have no internal valves, providing maximum flow with minimum pressure drop
- Machined components are manufactured using solid brass
- 4800 psi burst pressure
- Do not disconnect with pressure in line
- Dixon® cannot assume liability for misapplication of production resulting in equipment down-time, lost production, and/or personal injury including death
- Operating pressures for the standard hose barbs utilizing hose barb end connection may be dramatically reduced to that of the hose rating and/or hose and end connection combination
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
-
UNSPSC27121701
-
Package Description1/BX
-
WarrantyLimited
-
