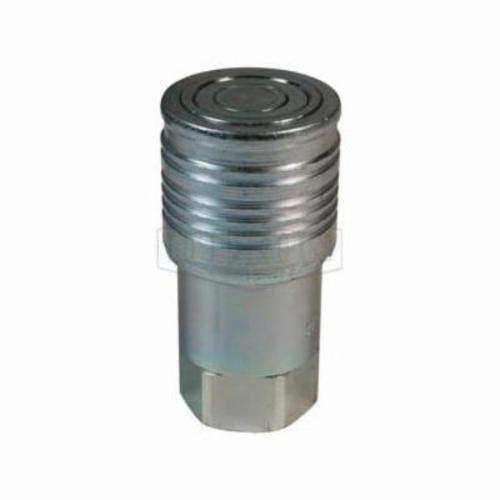

Dixon® 8HTF8 HT Series Flush Face Quick Connect Coupling, 1-11-1/2 Nominal, FNPT, Steel, Domestic
Dixon® 8HTF8 HT Series Flush Face Quick Connect Coupling, 1-11-1/2 Nominal, FNPT, Steel, Domestic
-
BrandDixon®
-
UPC089109828524
-
Manufacturer Part Number8HTF8
-
CountryUSA
-
Temperature Rating-40 to 250 deg F
-
MaterialSteel
-
Pressure Rating5000 to 20000 psi
-
TypeFlush Face
-
Nominal Size1-11-1/2
-
Hex Size1-3/4 in
-
SeriesHT Series
-
Domestic/ImportDomestic
-
Length4.24 in
-
End StyleFNPT
- High flow performance, compact profile
- Easily rebuildable
- Bulkhead mountable sleeve for breakaway, multi-plate or Blindmate installations
- DORS (dual opposing retention spheres) retention system prevents valve stem ejection during surge flow and pressure spike conditions
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS compliant trivalent chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- Couplers have polyurethane valve stem O-Ring, with a temperature range of -65 to 212 deg F
- Ancillary coupler seals are Nitrile (Buna-N), with a temperature range of -40 to 250 deg F
- PTFE or TPC-ET anti-extrusion ring protects main coupling valve seal from dynamic impulse pressure damage
- Interchangeable to ISO16028
- Compatible with Parker FEM-Series, Snap-Tite 74-Series, Hansen FF, Aeroquip/Eaton FD89, Stucchi A/FIRG, faster FFH/2FFN/2FFI and Safeway FF49-Series
- Warning: this product contains a chemical known to the State of California to cause birth defects or other reproductive harm
- Do not use in connection with drinking water
- Wash hands after handling
-
UNSPSC40172600
-
Package Description10/BX
-
WarrantyLimited
-
