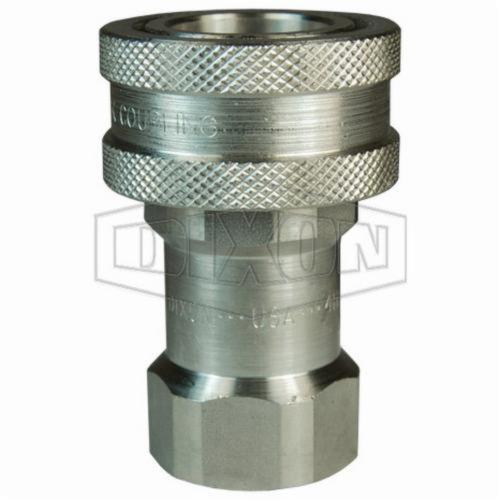

Dixon® 6HF6-SS H Series Interchange Poppet Valve Coupling, 3/4-14 Nominal, FNPT, 316 Stainless Steel
Dixon® 6HF6-SS H Series Interchange Poppet Valve Coupling, 3/4-14 Nominal, FNPT, 316 Stainless Steel
-
BrandDixon®
-
Manufacturer Part Number6HF6-SS
-
CountryUSA
-
Temperature Rating-40 to 250 deg F
-
Material316 Stainless Steel
-
Pressure Rating3000 psi
-
TypeInterchange
-
Nominal Size3/4-14
-
Hex Size1-5/16 in
-
SeriesH Series
-
Dimensions2.22 in OD
-
Length3.55 in
-
End StyleFNPT
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Steel componentry is plated using ROHS compliant trivalent chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- Nitrile (Buna-N) seals are standard
- PTFE anti-intrusion ring
- Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
- 21500 psi burst pressure
-
UNSPSC27121701
-
Package Description1/BX
-
Standards/ApprovalsRoHS Compliant
-
Warranty1/BX
