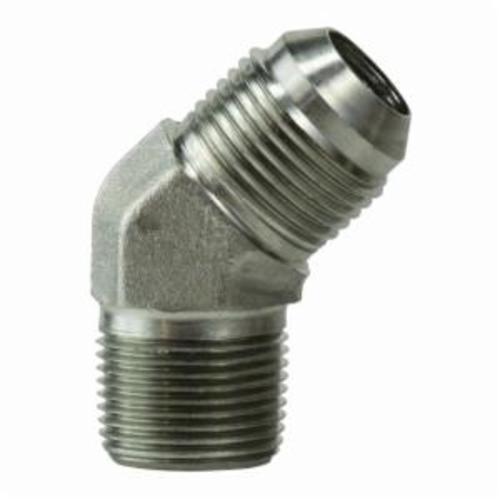

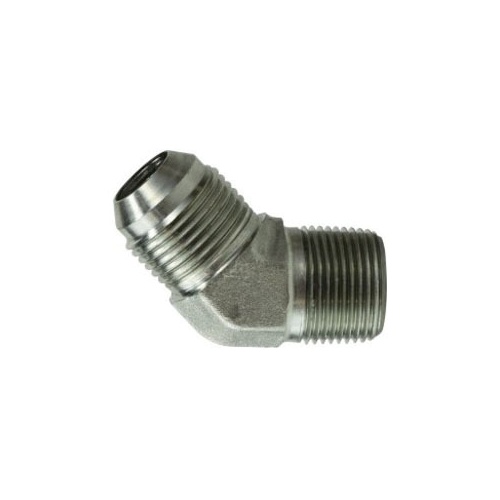

HCI Preferred Supplier 25031616 Hydraulic Elbow, 1-5/16-12 x 1 in Nominal, 37 deg SAE Male JIC Flare, Steel
HCI Preferred Supplier 25031616 Hydraulic Elbow, 1-5/16-12 x 1 in Nominal, 37 deg SAE Male JIC Flare, Steel
-
BrandGeneric
-
Manufacturer Part Number25031616
-
CountryUSA
-
MaterialSteel
-
Pressure Rating3000 psi
-
Nominal Size1-5/16-12 x 1 in
-
Angle45 deg
-
End Style37 deg SAE Male JIC Flare
- Flared fitting or tube assembly is tightened against the cone with a swivel nut
- By forcing the flare against the cone during the torquing process, the nose cone is slightly deformed and meshes to create a metal to metal seal between the flare and the cone
-
UNSPSC27121705
-
Package Description1/PK
-
