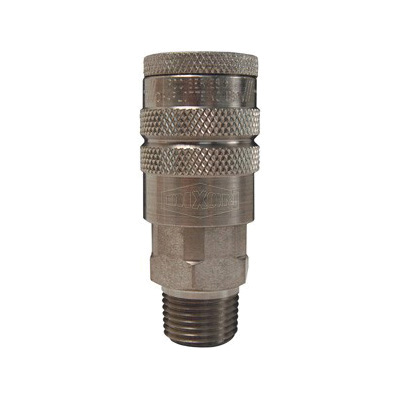

Dixon® 4FM4-S DF Series Industrial Male Quick Connect Coupler, 1/2-14 Nominal, Quick Disconnect Coupler x NPTF, 300 psi Pressure, 303 Stainless Steel, Domestic
Dixon® 4FM4-S DF Series Industrial Male Quick Connect Coupler, 1/2-14 Nominal, Quick Disconnect Coupler x NPTF, 300 psi Pressure, 303 Stainless Steel, Domestic
-
BrandDixon®
-
Manufacturer Part Number4FM4-S
-
CountryUSA
-
Temperature Rating-40 to 250 deg F
-
Material303 Stainless Steel
-
Pressure Rating300 psi
-
TypeIndustrial
-
Nominal Size1/2-14
-
Hex Size1 in
-
SeriesDF Series
-
Dimensions1.19 in OD
-
Domestic/ImportDomestic
-
Length3.07 in
-
End StyleQuick Disconnect Coupler x NPTF
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and springs maximize corrosion resistance and extend service life
- Nitrile seals are standard
- Steel componentry is plated using ROHS compliant trivalent chrome
- Steel sleeve and steel tubular valve
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 99525752 |
-
Alternative Part NumberDC9S
-
UNSPSC27131613
-
Package Description5/BX
-
Standards/ApprovalsROHS Compliant
-
WarrantyLimited
-
