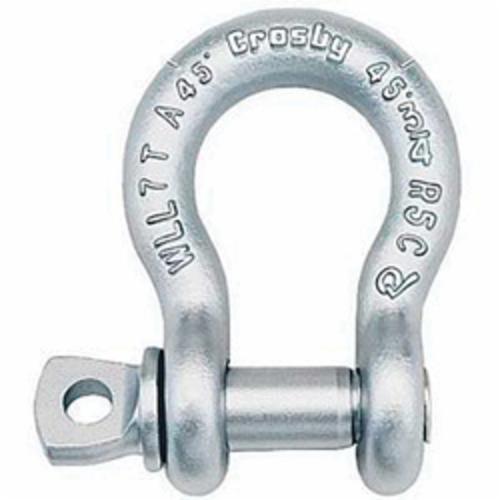

Crosby® 1017538 209-A-3/4 Anchor Shackle, 7 ton Load, 3/4 in, 0.88 in Dia Screw Pin, Hot Dipped Galvanized
Crosby® 1017538 Anchor Shackle, 7 ton Load, 3/4 in, 0.88 in Dia Screw Pin, Hot Dipped Galvanized
-
BrandCrosby®
-
UPC662547035275
-
Manufacturer Part Number1017538
-
CountryUSA
-
Load Capacity7 ton
-
FinishHot Dipped Galvanized
-
SeriesG-209A
-
Inner Length2.81 in
-
Inner Width2 in
-
Size3/4 in
-
Opening Size1-1/4 in
-
Body MaterialForged Alloy Steel
-
Overall Length4.97 in
-
Overall Width3.97 in
-
Eye Outer Size1.81 in
-
Pin Diameter0.88 in
-
Pin MaterialAlloy Steel
-
Pin TypeScrew
- Forged alloy steel - quenched and tempered, with alloy pins
- Working load limit permanently shown on every shackle
- Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
- Approved for use at -40 to 204 deg C
- Meets or exceeds all requirements of ASME B30.26 including identification, ductility, design factor, proof load and temperature requirements
- Importantly, these shackles meet other critical performance requirements including fatigue life, impact properties and material traceability, not addressed by ASME B30.26
- Capacities 2 - 21 metric tons
- Meets performance requirements of grade 8 shackles
- Load rated
- +/-0.25 in L tolerance
- +/-0.06 in W tolerance
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 48FR15 |
-
UNSPSC24101641
-
Standards/ApprovalsASME B30.26|RR-C-271F Type IVA|Grade B|Class 2
