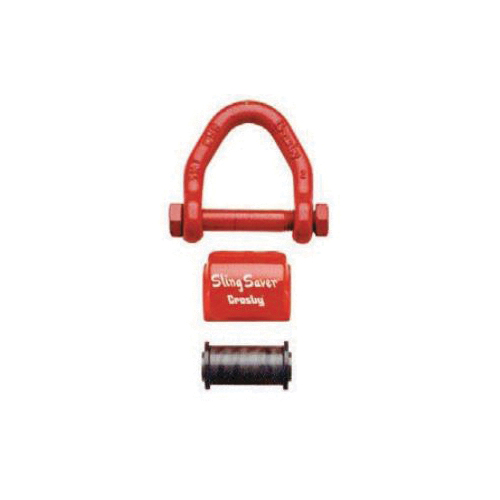

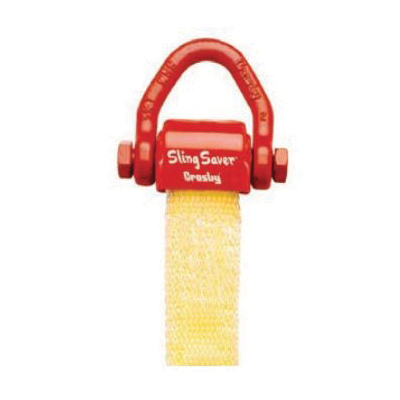

Crosby® 1021700 Web Connecting Shackle, 6.25 ton Load, 4 in, 7/8 in Dia
Crosby® 1021700 Web Connecting Shackle, 6.25 ton Load, 4 in, 7/8 in Dia
-
BrandCrosby®
-
Manufacturer Part Number1021700
-
CountryUSA
-
Load Capacity6.25 ton
-
SeriesSling Saver® S-280
-
Inner Length1.66 in
-
Size4 in
-
Opening Size2.69 in
-
Body MaterialAlloy
-
Eye Outer Size1.62 in
-
Pin Diameter7/8 in
-
Pin MaterialAlloy
- Durable vinyl cover that protects sling at eye, keeps sling positioned correctly on spool
- Connects synthetic web and synthetic round slings to conventional Crosby® hardware including - 320N eye hook, additional Crosby® grade 8 fittings, master links, rings and shackles
- Makes a field assembled bridle quick and easy
- No retaining pin to snag sling material
- Increased radius of spool gives wider sling bearing surface resulting in an increased area for load distribution
- Increasing synthetic sling efficiency as compared to standard anchor and chain shackle bows and conventional eye hooks, this allows 100% of the slings rated working load limit to be achieved
- Allowing better load distribution on internal fibers
- Designed for use with type III, class 7, 2-ply webbing & synthetic round slings also accommodates single ply and endless slings
-
UNSPSC24101641
-
