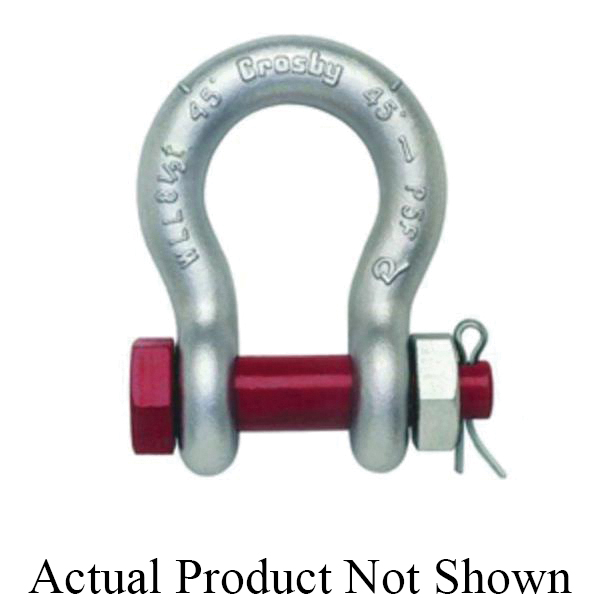

Crosby® 1018400 Anchor Shackle, 0.75 ton Load, 5/16 in, 0.38 in Dia Screw Pin, Self-Colored
Crosby® 1018400 Anchor Shackle, 0.75 ton Load, 5/16 in, 0.38 in Dia Screw Pin, Self-Colored
-
BrandCrosby®
-
UPC662547068174
-
Manufacturer Part Number1018400
-
CountryUSA
-
Load Capacity0.75 ton
-
FinishSelf-Colored
-
SeriesMaxtough® S-209
-
Inner Length1.22 in
-
Inner Width0.84 in
-
Size5/16 in
-
Opening Size0.53 in
-
Body MaterialCarbon Steel
-
Overall Length2.09 in
-
Overall Width1.71 in
-
Eye Outer Size3/4 in
-
Pin Diameter0.38 in
-
Pin MaterialAlloy Steel
-
Pin TypeScrew
- Forged quenched and tempered with alloy pins
- Working load limit and grade "6 in permanently shown on every shackle
- Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
- Approved for use at -40 to 204 deg C
- Capacities 1/3 thru 55 metric tons, grade 6
- The tests are conducted by Crosby® and 3.1 test certification is available upon request
- +/-0.06 in L tolerance
- +/-0.06 in W tolerance
- Fatigue rated
- Load rated
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 29WP48 |
-
UNSPSC24101641
-
Standards/ApprovalsASME B30.26|ABS 2007|DNV Certified|CE Certified
-
