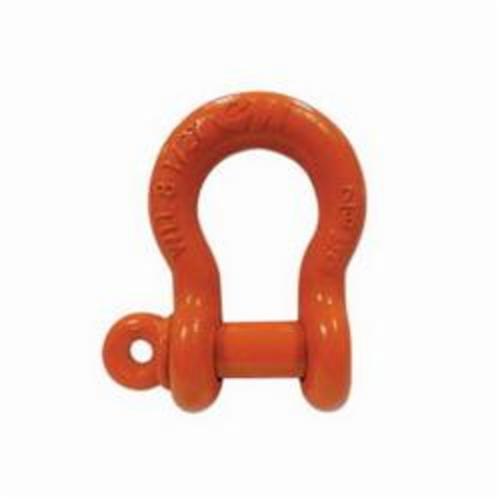

CM® M658P Super Strong Anchor Shackle, 35 ton Load, 2 in, 2-1/4 in Dia Screw Pin, Orange Powder Coated
Screw pin anchor/chain shackles allow quick and easy removal of the screw pin and can be useful in applications where the shackle is frequently removed, but not so much in applications where the pin is subject to torque or twisting.
-
BrandCM®
-
UPC043927400607
-
Manufacturer Part NumberM658P
-
CountryUSA
-
Load Capacity35 ton
-
FinishOrange Powder Coated
-
TypeSuper Strong
-
Inner Length7-3/4 in
-
Inner Width5-1/4 in
-
Size2 in
-
Opening Size3-1/4 in
-
Body MaterialCarbon Steel
-
Eye Outer Size5-1/4 in
-
Pin Diameter2-1/4 in
-
Pin MaterialAlloy Steel
-
Pin TypeScrew
- Manufactured from technically advanced micro alloy steel with optimal hardness for strength and ductility
- Shackles show major deformation before failure
- Working load limit and traceability codes shown as permanent markings on body
- All shackles have alloy quenched and tempered pins
- Shock load testing of assemblies at -30 deg F consistently demonstrate microalloy outperforms quenched and tempered carbon material
- Anchor shackles can be side loaded or used for multiple connections
- 6:1 design factor
- Orange powder coat painted finish
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 43493 |
-
UNSPSC24101641
-
Package Description1/PK
-
Standards/ApprovalsFederal Specification RR-C-271D
-
