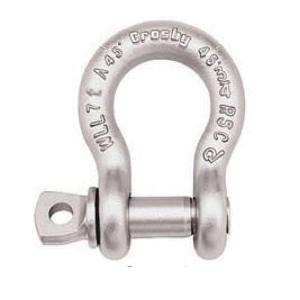

Crosby® 1017450, G-209-A-3/8, Anchor Shackle, 2 ton Load, 3/8 in, 0.44 in Dia Screw Pin, Hot Dipped Galvanized
Crosby® 1017450 Anchor Shackle, 2 ton Load, 3/8 in, 0.44 in Dia Screw Pin, Hot Dipped Galvanized
-
BrandCrosby®
-
Manufacturer Part Number1017450
-
CountryUSA
-
Load Capacity2 ton
-
FinishHot Dipped Galvanized
-
SeriesG-209A
-
Inner Length1-7/16 in
-
Inner Width1.03 in
-
Size3/8 in
-
Opening Size0.66 in
-
Body MaterialForged Alloy Steel
-
Overall Length2.49 in
-
Overall Width2.03 in
-
Eye Outer Size0.91 in
-
Pin Diameter0.44 in
-
Pin MaterialAlloy Steel
-
Pin TypeScrew
- Meets performance requirements of grade 8 shackles
- Working load limit permanently shown on every shackle
- Approved for use at -40 to 400 deg F
-
UNSPSC24101641
-
Standards/ApprovalsABS/DNV/Lloyds/CE Certified|ASME B30.26|Federal Spec RR-C271F|Type IVA|Grade B|Class 2
-
