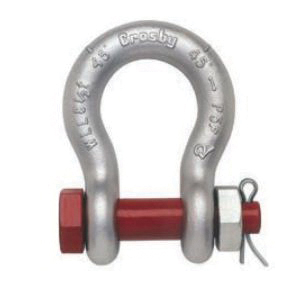

Crosby® 1019472 2130-1/2 Anchor Shackle, 2 ton Load, 1/2 in, 0.64 in Dia Bolt Pin, Hot Dipped Galvanized
Crosby® 1019472 Anchor Shackle, 2 ton Load, 1/2 in, 0.64 in Dia Bolt Pin, Hot Dipped Galvanized
-
BrandCrosby®
-
Manufacturer Part Number1019472
-
CountryUSA
-
Load Capacity2 ton
-
FinishHot Dipped Galvanized
-
SeriesG-2130
-
Inner Length1-7/8 in
-
Inner Width1-5/16 in
-
Size1/2 in
-
Opening Size0.81 in
-
Body MaterialCarbon Steel
-
Overall Length3.28 in
-
Overall Width2.8 in
-
Eye Outer Size1.19 in
-
Pin Diameter0.64 in
-
Pin MaterialAlloy
-
Pin TypeBolt
- Working load limit and grade 6 permanently shown on every shackle
- Approved for use at -40 to 400 deg F
- 3.1 Certification as standard available for charpy and statistical proof test from 3.25 ton up to 25 tons to DNV2.7-1 and EN13889
- Crosby® 3.25 ton through 25 ton G2130OC anchor shackles are type approved to DNV certification notes 2.7-1 offshore containers
- The Crosby® shackles are statistical proof and impact tested to 42 J min average at -4 deg F
- All other 2130 shackles can meet charpy requirements of 42 J average at -4 deg F when requested at time of order
- Look for the Red Pin® the mark of genuine Crosby® quality
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 216FG3 |
-
UNSPSC24101641
-
Standards/ApprovalsASME B30.26|ABS 2007 Steel Vessel Rule 1-11-17.7|DNV2.7-1 Certified|EN13889|Federal Spec RR-C271F|Type IVA|Grade A|Class 3
-
