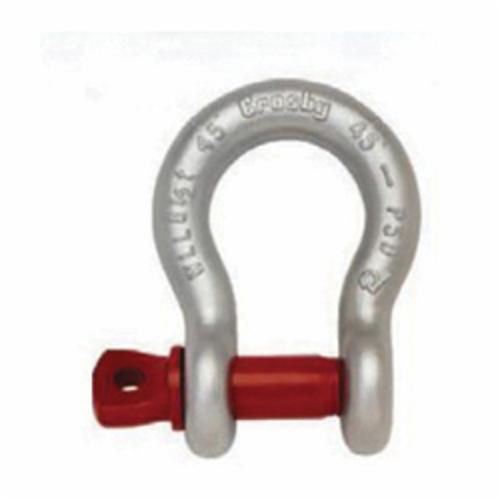

Crosby® 1018419, G209-3/8, Anchor Shackle, 1 ton Load, 3/8 in, 0.44 in Dia Screw Pin, Hot Dipped Galvanized
Crosby® 1018419 Anchor Shackle, 1 ton Load, 3/8 in, 0.44 in Dia Screw Pin, Hot Dipped Galvanized
-
BrandCrosby®
-
UPC696728316679
-
Manufacturer Part Number1018419
-
CountryUSA
-
Load Capacity1 ton
-
FinishHot Dipped Galvanized
-
SeriesMaxtough® G-209
-
Inner Length1.44 in
-
Inner Width1.03 in
-
Size3/8 in
-
Opening Size0.66 in
-
Body MaterialCarbon Steel
-
Overall Length2.49 in
-
Overall Width2.02 in
-
Eye Outer Size0.91 in
-
Pin Diameter0.44 in
-
Pin MaterialAlloy Steel
-
Pin TypeScrew
- Forged quenched and tempered with alloy pins
- Working load limit and grade
- Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
- Approved for use at -40 to 204 deg C
- Capacities 1/3 thru 55 metric tons, grade 6
- The tests are conducted by Crosby® and 3.1 test certification is available upon request
- +/-0.13 in L tolerance
- +/-0.06 in W tolerance
- Fatigue rated
- Load rated
- 3.25 - 25 ton G209 anchor shackles are type approved to DNV certification Notes 2.7-1- Offshore containers
- These shackles are statistical proof and impact tested to 42 joules min average at -20 deg C
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 29WP61 |
-
UNSPSC24101641
-
Standards/ApprovalsASME B30.26|RR-C-271F Type IVA|Grade A|Class 2|ABS 2007|DNV Certified|CE Certified
-
