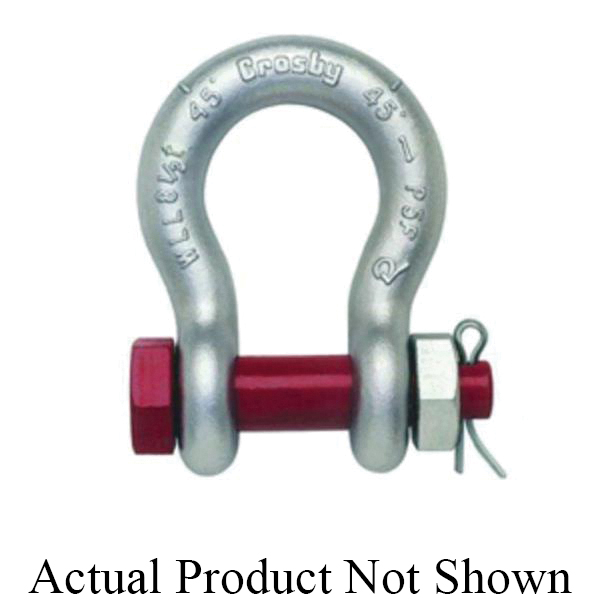

Crosby® 1018623 G209 1-1/2 Anchor Shackle, 17 ton Load, 1-1/2 in, 1.63 in Dia Screw Pin, Self-Colored
Crosby® 1018623 Anchor Shackle, 17 ton Load, 1-1/2 in, 1.63 in Dia Screw Pin, Self-Colored
-
BrandCrosby®
-
UPC662547076117
-
Manufacturer Part Number1018623
-
CountryUSA
-
Load Capacity17 ton
-
FinishSelf-Colored
-
SeriesMaxtough® S-209
-
Inner Length5-3/4 in
-
Inner Width3.88 in
-
Size1-1/2 in
-
Opening Size2.38 in
-
Body MaterialCarbon Steel
-
Overall Length10 in
-
Overall Width7.33 in
-
Eye Outer Size3.63 in
-
Pin Diameter1.63 in
-
Pin MaterialAlloy Steel
-
Pin TypeScrew
- Forged quenched and tempered with alloy pins
- Working load limit and grade
- Shackles can be furnished proof tested with certificates to designated standards, such as ABS, DNV, Lloyds or other certification
- Approved for use at -40 to 204 deg C
- Capacities 1/3 thru 55 metric tons, grade 6
- The tests are conducted by Crosby® and 3.1 test certification is available upon request
- +/-0.25 in L tolerance
- +/-0.13 in W tolerance
- Fatigue rated
- Load rated
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 48FR31 |
-
UNSPSC24101641
-
Standards/ApprovalsASME B30.26|ABS 2007|DNV Certified|CE Certified
-
