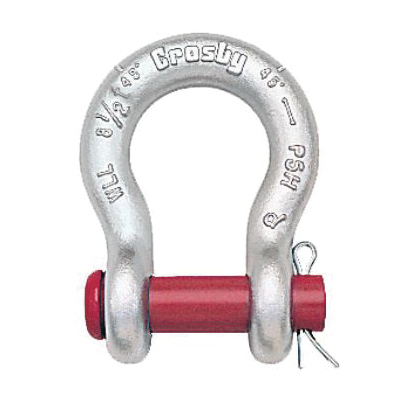

Crosby® 1018017, G-213-1/4, Anchor Shackle, 0.5 ton Load, 1/4 in, 5/16 in Dia Round Pin, Hot Dipped Galvanized
Crosby® 1018017 Anchor Shackle, 0.5 ton Load, 1/4 in, 5/16 in Dia Round Pin, Hot Dipped Galvanized
-
BrandCrosby®
-
Manufacturer Part Number1018017
-
CountryUSA
-
Load Capacity0.5 ton
-
FinishHot Dipped Galvanized
-
SeriesG-213
-
Inner Length1.13 in
-
Inner Width0.78 in
-
Size1/4 in
-
Opening Size0.47 in
-
Body MaterialCarbon Steel
-
Overall Length1.84 in
-
Overall Width1.34 in
-
Eye Outer Size0.61 in
-
Pin Diameter5/16 in
-
Pin MaterialAlloy
-
Pin TypeRound
- Working load limit permanently shown on every shackle
- Shackles are quenched and tempered and can meet DNV impact requirements of 42 J at -20 deg C
- Look for the Red Pin® the mark of genuine Crosby® quality
-
UNSPSC24101641
-
Standards/ApprovalsABS/DNV/Lloyds/CE Certified|Federal Spec RR-C-271F|Type IVA|Grade A|Class 1
-
