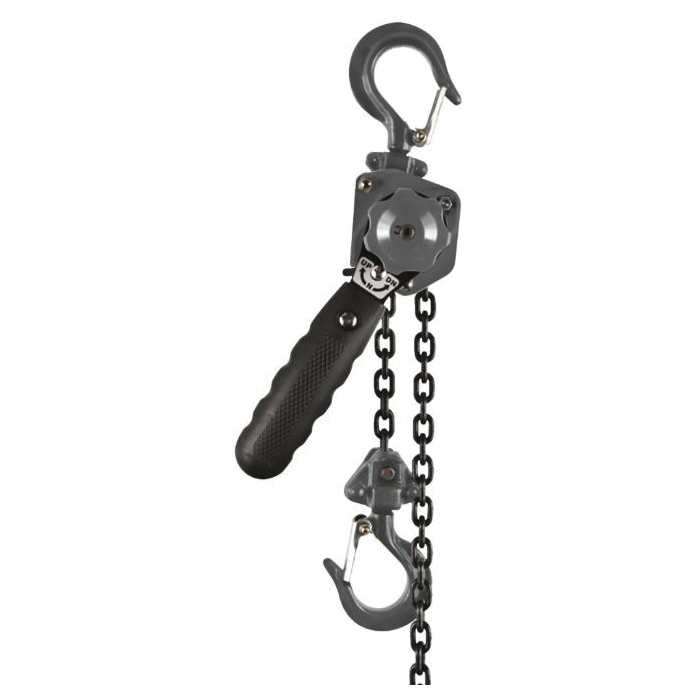

1/4-TON 5'-LIFT MINI-PULLERS JET187740
JET® JLP-A series lever hoists combine safety, reliability and durability that are designed to perform in light to medium duty industrial applications. The patented brake wear indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A lever hoist is available in 1/4 to 6 ton capacities with standard lifts of 5, 10, 15 and 20 ft (custom lifts available). The JET® JLP-A series is the perfect choice for a contractor grade lever hoist.
-
BrandJET®
-
UPC731325473001
-
Manufacturer Part NumberJT9-287100
-
CountryUSA
-
Load Capacity1/4 ton
-
Pull to Lift Rated Load60 lb
-
Reeving1
-
Minimum Between Hooks8-1/4 in
-
TypeMini-Puller
-
SeriesJLP-A
-
Hook Opening1-2/5 in
-
Dimensions3-1/9 in W
-
Brake TypeWeston Style Double Ratchet Pawl
-
Lever Length6 in
-
Lifting Height5 ft
- Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security
- Industrial rated alloy steel hooks rotate 360 deg for easy rigging
- Hooks slowly stretch to indicate an overload situation increasing jobsite safety
- Cast steel safety latches are secured with Allen screws and locknuts
- Grade 80 black oxide coated for added durability
- Needle bearing design increases efficiency and promotes smooth operation
- Compact design smaller body and lightweight design for low headroom applications and use in confined areas
- This product complies with ANSI/ASME B30.21 and HST-3 impact-resistant all steel construction for added durability and protection
- Load tested to 125% of capacity with certificate
| Competitor Name | Cross-Reference Number |
|---|---|
| Fastenal | 0576956 |
-
Alternative Part Number287100
-
UNSPSC24101602
-
Standards/ApprovalsPROP65: CANCER AND REPRODUCTIVE HARM|ANSI/ASME B30.21|HST-3
-
WarrantyLifetime
-
Owners/User Manual
-
Specification Sheet
