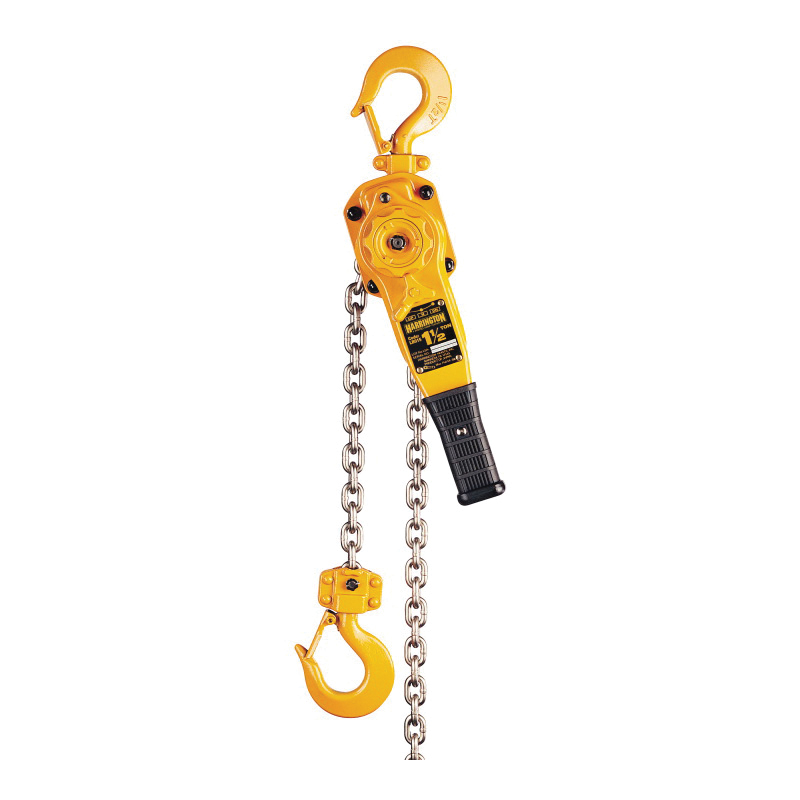

HARRINGTON LB015 Heavy Duty Lever Chain Hoist, 1-1/2 ton Load, 5 ft H Lifting, 64 lb Rated, 1.3 in Hook Opening

0 Ratings
$1,222.44
Out of Stock
SKU: HRHLB015
noimage_new

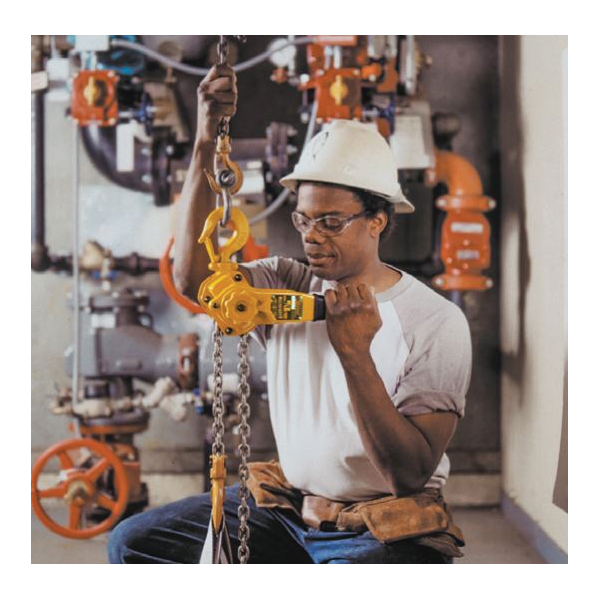

Our LB lever hoist forged an entirely new, industry leading benchmark by being smaller, lighter and stronger than any other lever hoist on the market. This hoist can be used horizontally, vertically, inverted or at any other load angle and its proven strength and durability stand up in an endless array of applications.

In Stock
HCI of Jackson: 0
HCI of Dyersburg: 0
HCI of Humboldt: 0
HCI of Union City: 0
HCI of Gallatin: 0
My Wishlist
Compare
Main specs
  • Brand
    HARRINGTON
  • Manufacturer Part Number
    LB015
  • Country
    USA
Specification
  • Load Capacity
    1-1/2 ton
  • Chain Material
    Steel
  • Pull to Lift Rated Load
    64 lb
  • Reeving
    1
  • Minimum Between Hooks
    13.2 in
  • Type
    Heavy Duty
  • Handle Type
    Rubber Grip
  • Series
    LB Series
  • Hook Opening
    1.3 in
  • Brake Type
    Weston-Type Load
  • Lever Length
    10.4 in
  • Lifting Height
    5 ft
Features
  • Body - rugged, high impact, all steel construction weighs less than comparable aluminum models
  • Compact and lightweight design
  • Open design for easy inspection and cleaning without dismantling the unit
  • Hooks - forged, heat treated alloy steel hooks open gradually without fracturing under excessive load
  • Top and bottom hooks have heavy duty hook latch
  • Top and bottom hooks rotate 360 deg
  • Operation - rubber grip handle for non-slip operation
  • Operate in close quarters with short handle and 15-degree recovery stroke
  • Patented spring loaded freewheel mechanism for easy adjustment of the load chain and protection against accidental freewheeling under load
  • Gears - highly durable, split-load double reduction gears
  • Induction heat treated and case-hardened
  • Enclosed to protect from dust and moisture
  • Load chain - nickel plated for corrosion resistance
  • Grade 100 heat treated
  • Brake - Weston style load brake with four braking surfaces, two brake pads and two brake pawls for added safety
  • The totally enclosed brake mechanism protects from dirt and moisture
Additional Information
  • UNSPSC
    24101602
  • Standards/Approvals
    ANSI/ASME B30.21|ANSI/ASME HST-3M
