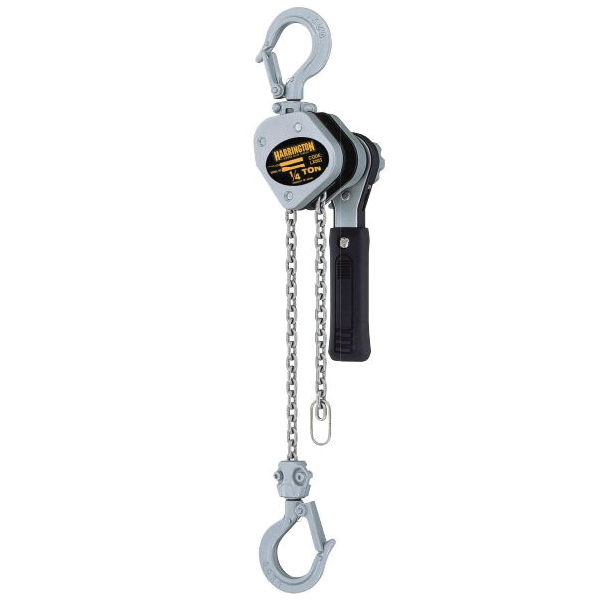

HARRINGTON LX003 LX Mini Lever Chain Hoist, 1/4 ton Load, 5 ft H Lifting, 40 lb Rated, 0.8 in Hook Opening
Don't be fooled by its award winning toolbox sized design, our LX mini puller is no lightweight. Its robust aluminum housing, heat treated gears and nickel plated load chain make this a small hoist that delivers huge durability and performance. Our LX is capable of positioning your load exactly where you want it making it the ideal lever hoist for work in tight quarters or in elevated locations.
-
BrandHARRINGTON
-
Manufacturer Part NumberLX003
-
CountryUSA
-
Load Capacity1/4 ton
-
Pull to Lift Rated Load40 lb
-
Reeving1
-
Minimum Between Hooks8.1 in
-
Handle TypeRubber Grip
-
SeriesLX Mini
-
Hook Opening0.8 in
-
Brake TypeWeston-Type Load
-
Lever Length5.9 in
-
Lifting Height5 ft
- Body - durable die cast aluminum body with steel frame is compact and lightweight
- Low headroom for use in tight spaces
- Effortless to transport, install and store
- Hooks - top and bottom hooks have heavy duty hook latch
- Top and bottom hooks rotate 360 deg
- Load chain - grade 100, abrasion and corrosion-resistant heat treated nickel plated finish
- Brake - Weston style load brake
- Totally enclosed to protect from dirt, dust and rain
- Gears - single step reduction gear assures load holding performance
- Operation - rubber grip handle for non-slip operation
- Free-chain mechanism allows for quick adjustments
- Extremely low pulling force is required for operation
- Load chain guide mechanism permits smooth and quiet guiding of chain
-
UNSPSC24101602
-
Standards/ApprovalsANSI/ASME B30.21|ANSI/ASME HST-3M
-
Catalog
-
Owners/User Manual
