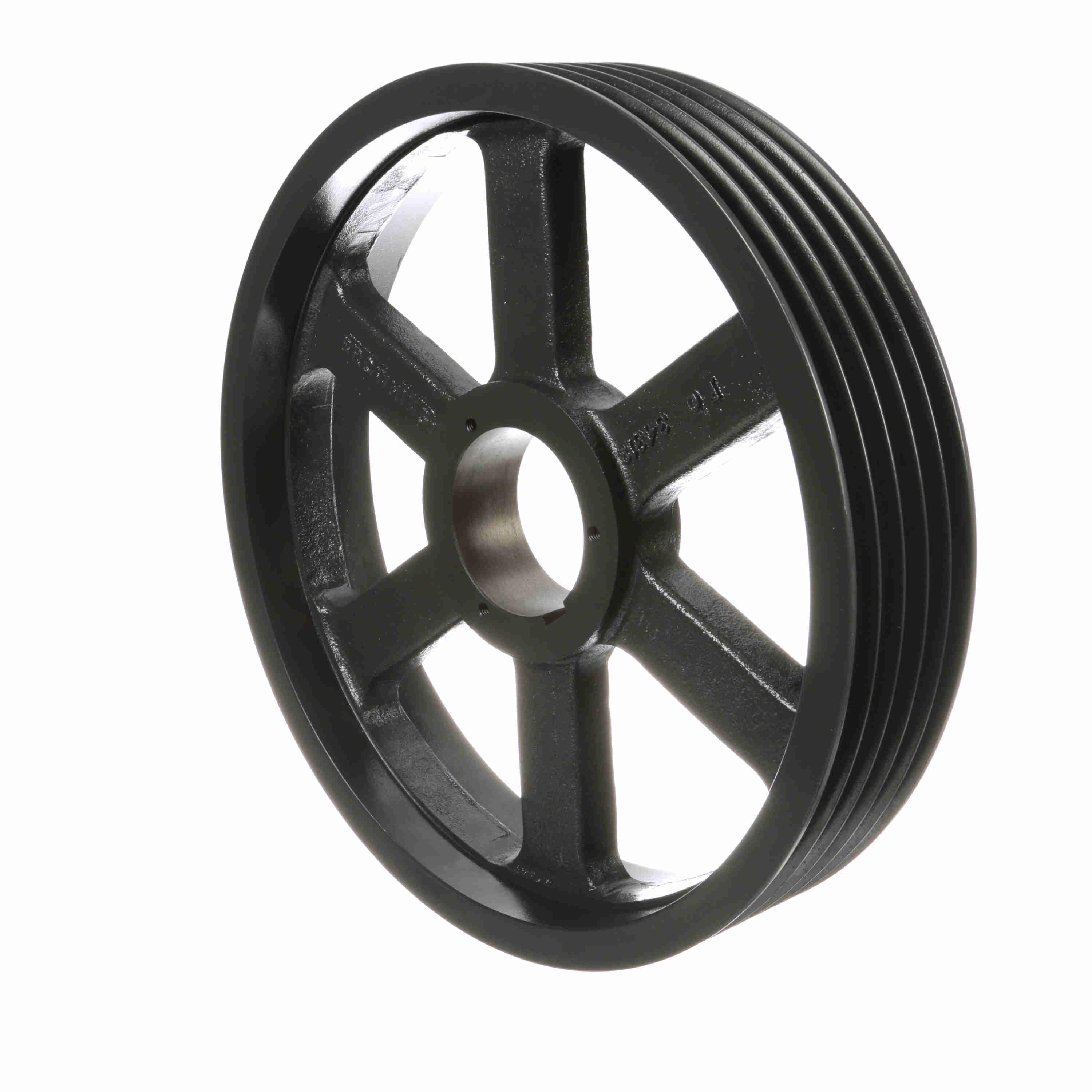

Browning® 1969252 B5V® Type 6 Arm Multiple Sheave, 1.13 to 3.75 in Split Taper Bore, 18.68 in OD, 5 Grooves, 18.2 in (A)/18.7 in (B) Dia Pitch, 3-7/8 in W Face
Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662460344348
-
Manufacturer Part Number1969252
-
CountryUSA
-
Face Width3-7/8 in
-
Bushing TypeR1
-
Pitch Diameter18.2 in (A)/18.7 in (B)
-
MaterialCast Iron
-
TypeType 6 Arm
-
SeriesB5V®
-
Number of Grooves5
-
Outside Diameter18.68 in
-
Bore Diameter1.13 to 3.75 in
-
Bore TypeSplit Taper
-
Overall Length4-3/32 in
-
Suitable For Use WithGripBelt® A and B, 5V Cross Section V-Belt
- Combination Groove - All Browning B5V Sheaves permit the running of A, 4L, B, 5L and 5V Belts to be run in them, thus providing a variety of different pitch diameters and horsepowers
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- New Casting design - The B5V castings were developed using CAD and Finite Elements Analysis to determine where to add and eliminate material
- Broad horsepower coverage - The B5V is available in 1 through 6 grooves allowing it to cover from 5 to 125 horsepower drives
-
Alternative Part Number5B5V184
-
UNSPSC26111806
-
Package DescriptionEACH
-
Standards/ApprovalsABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards
-
Warranty1 Year
-
Warranty Information
-
Instruction/Installation Manual
