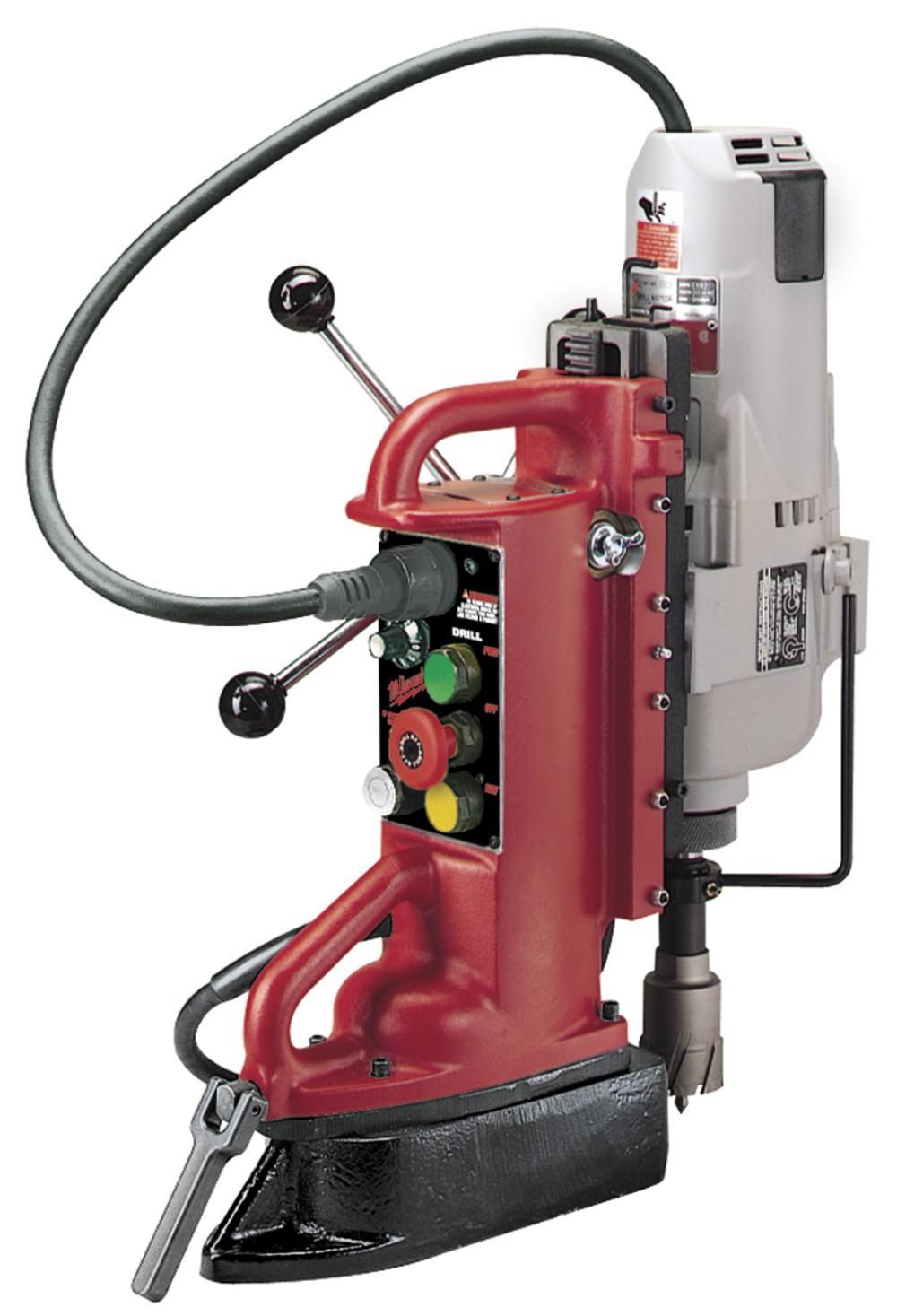

Milwaukee® 4208-1 Adjustable Position Heavy Duty Electromagnetic Drill Press, 1-1/4 in Chuck, 2 hp, 4-3/8 in Drill to Center From Base, 250/500 rpm Spindle Speed, 120 V AC
This combination unit features the 4203 adjustable position, variable speed base and the 4297-1 1-1/4 in. drill motor. All you need is a bit and you are ready to drill into any ferrous material 1/2 in. and thicker.
-
BrandMilwaukee®
-
UPC045242012831
-
Manufacturer Part Number4208-1
-
CountryUSA|Canada
-
Chuck Size1-1/4 in
-
TypeAdjustable Position Heavy Duty
-
Voltage Rating120 V AC
-
Amperage Rating12.5 A
-
Horsepower2 hp
-
Number of Spindle Speeds1
-
Spindle Speed250/500 rpm
-
Spindle Taper#3 Morse
-
Spindle Travel11 in
-
Drill Point Pressure1530/1600 lb
-
Drill to Center From Base4-3/8 in
-
Overall Height25-1/4 in
- Powerful, 11.5 A motor, engineered for the toughest applications
- Dual-mount gear case/reverse mount, permits tight quarter drilling
- Maximum force develops up to 1600 lb of drill point pressure with a 1 in steel plate
- Solid state electronic switching, offers faster, smoother and quieter switching for a longer product lifespan
- Line lockout prevents tool from operating if voltage is restored to an interrupted line
- Motor magnet lockout prevents de-mag during operation
- Full wave holding power
- Grounded construction
- 1-1/4 in capacity - taps up to 1 in, 14-threaded holes
| Competitor Name | Competitor Part Number |
|---|---|
| Grainger | 4A940 |
| Grainger | 4A940 |
-
Alternative Part Number8564668
-
UNSPSC23241801
-
IDEA Index ID8564668
-
Package DescriptionEACH
-
WarrantyLimited Lifetime
