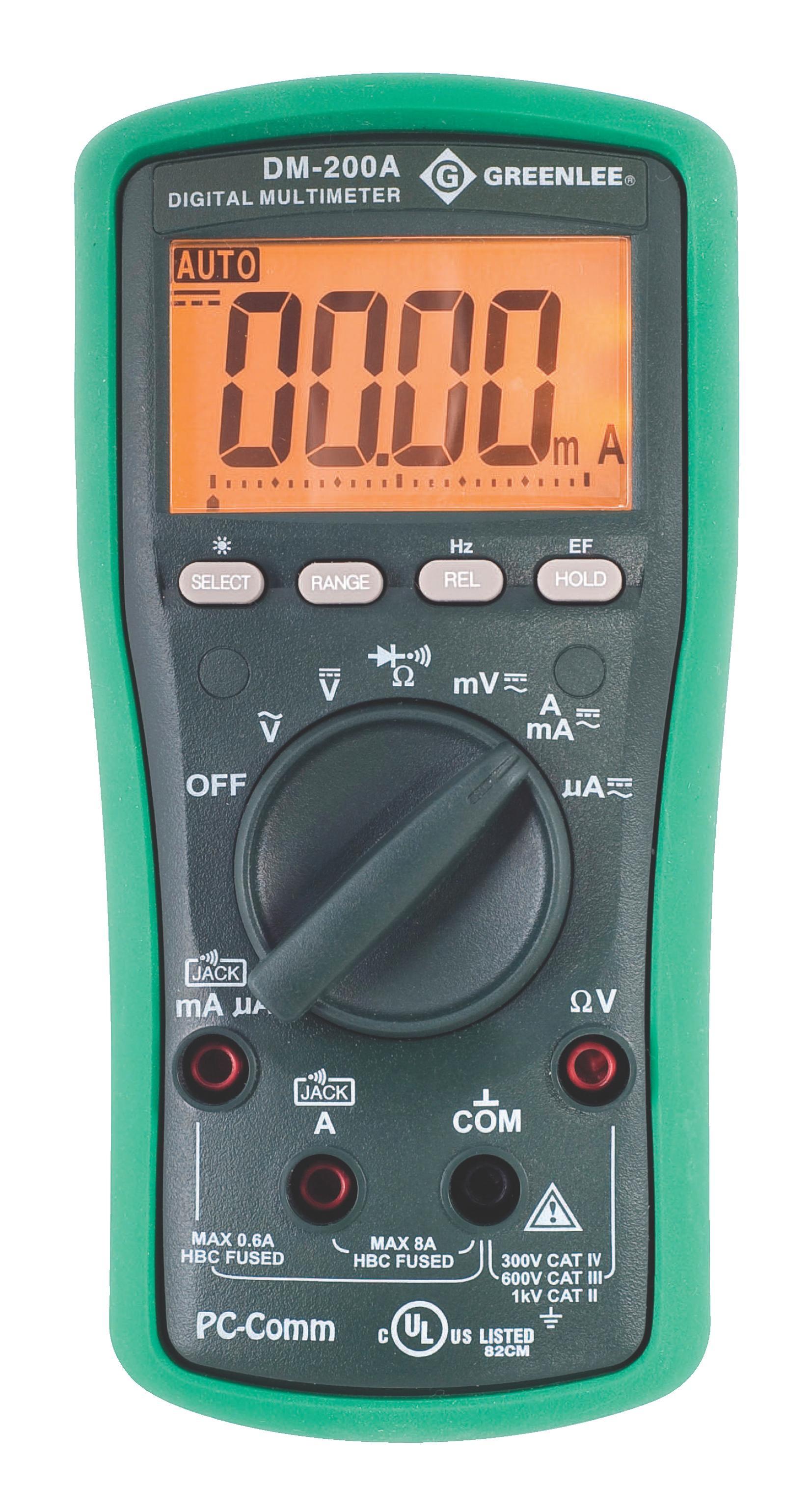

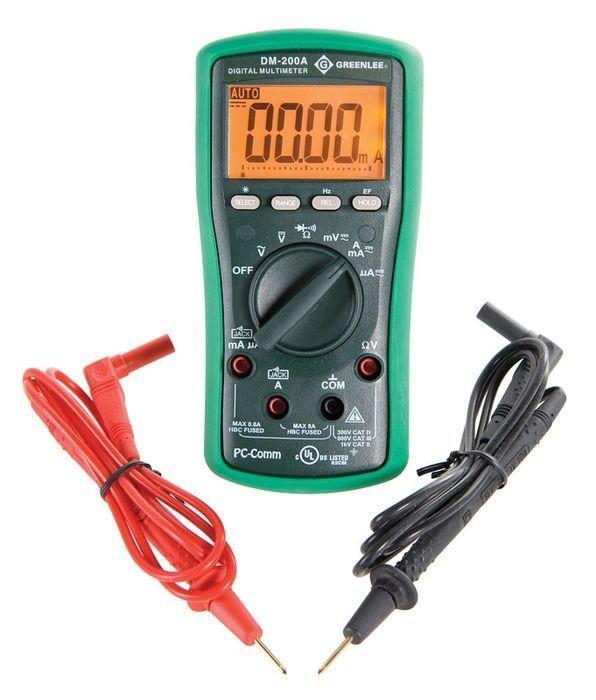

Greenlee® ESM™ DM-200A Digital Multimeter, 60 mV to 1000 V AC/DC, 600 mA to 10 A, 600 Ohm to 60 MOhm, 600 nF to 300 uF Measuring, 600 Ohm, 6/60/600 kOhm, 6/60 MOhm, Backlit LCD Display
200A series was designed to provide all of the critical day to day features of handheld multimeters in a smaller, ergonomic design. Look to this series for CAT IV 300 VAC, CAT III 600 VAC and CAT II 1000 VAC applications. Backed by Greenlee® lifetime limited warranty, the 200A series multimeters offer the professional electrician superior value when compared to the competition.
-
BrandGreenlee®
-
UPC783310087403
-
Manufacturer Part NumberDM-200A
-
CountryUSA|Canada
-
Capacitance60/600 nF, 6/60/600/3000 uF
-
Temperature Rating-58 to 1832 deg F
-
Measuring Range60 mV to 1000 V AC/DC, 600 mA to 10 A, 600 Ohm to 60 MOhm, 600 nF to 300 uF
-
Resistance600 Ohm, 6/60/600 kOhm, 6/60 MOhm
-
Safety RatingCAT IV 300 V AC, CAT III 600 V AC, CAT II 1000 V AC
-
Series200A
-
Battery Type(2) 1.5 VDC AAA
-
Display TypeBacklit LCD
- Measures voltage, current, resistance and frequency
- Tests continuity and diodes
- Two voltage detection modes - non-contact or using a single test lead
- BeepJack warns when test leads are incorrectly inserted in current measurement terminals
- Automatic and manual range selection
- Relative offset mode to see changes in measurements
- Data hold
- Use optional USB/RS-232 interface DMSC-2U for direct-to-PC logging
-
Alternative Part Number10991984
-
UNSPSC41113630
-
IDEA Index ID10991984
-
Package DescriptionEACH
-
Standards/ApprovalsARRA Compliant|cULus Listed|CE Certified
-
Warranty1 Year Limited
-
Warranty Information
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
