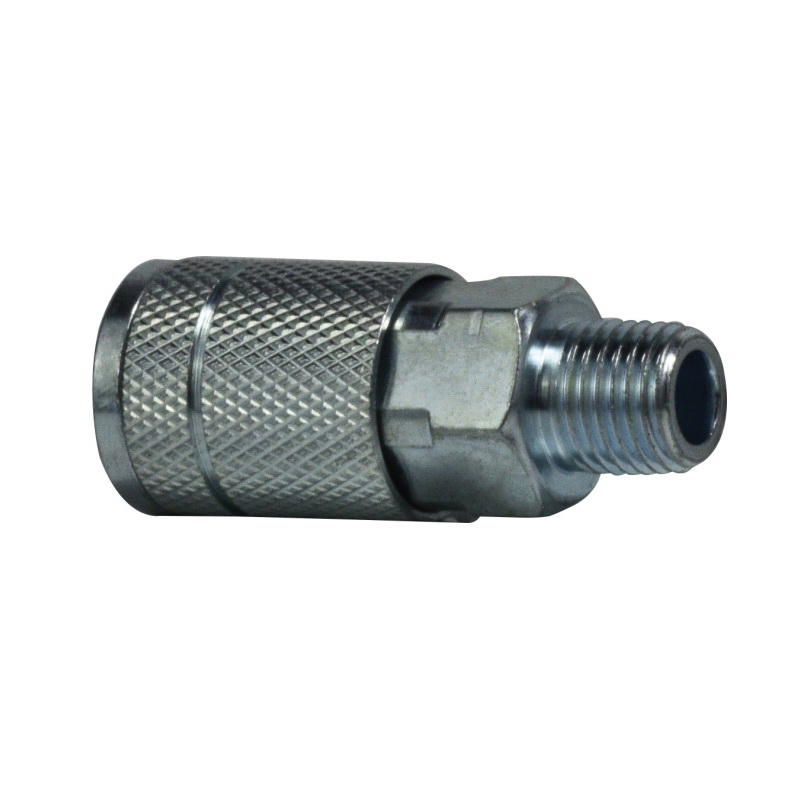

HCI Preferred Supplier 28516S Automotive/Parker Interchange Quick-Disconnect Coupler, 1/4 in Nominal, MNPT, 300 psi Pressure, Steel
1/4 in MNPT T-style Couplers have a brass body and a Buna-N seal. Milton® T-style Couplers have a 1/4 in basic flow size and a maximum of 300 psi. Offers air flow of up to 40 scfm.
-
BrandGeneric
-
Manufacturer Part Number28516S
-
CountryUSA
-
Temperature Rating250 deg F
-
MaterialSteel
-
Pressure Rating300 psi
-
TypeAutomotive/Parker Interchange
-
Nominal Size1/4 in
-
Series700
-
Dimensions15/16 in W x 15/16 in H
-
Domestic/ImportImport
-
Length2 in
-
End StyleMNPT
-
FinishZinc Plated
-
ColorGreen Blue
- Steel couplers are steel bodies with steel valves, six stainless steel locking balls, NBR seal and stainless steel springs
- Unique design has been field proven as a long lasting, high performance coupling especially when used with pneumatic tools
-
UNSPSC31163101
-
Package Description1/PK
-
Standards/ApprovalsPROP65: This product can expose you to chemicals, including cobalt, which are known to the state of California to cause cancer and birth defects or other reproductive harm. For more information, visit www.P65Warnings.ca.gov
-
WarrantyLimited
-
