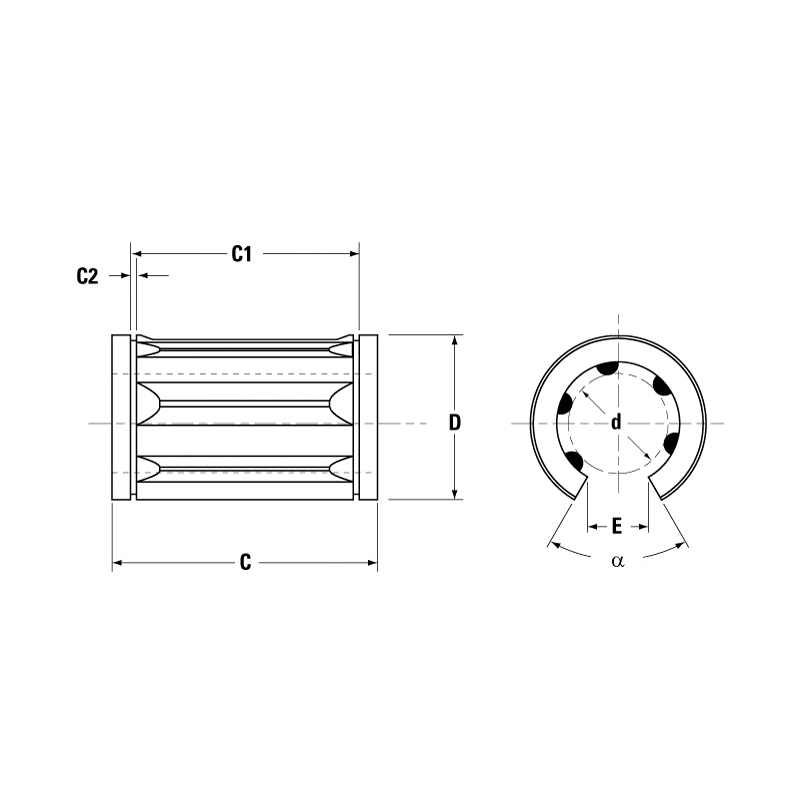

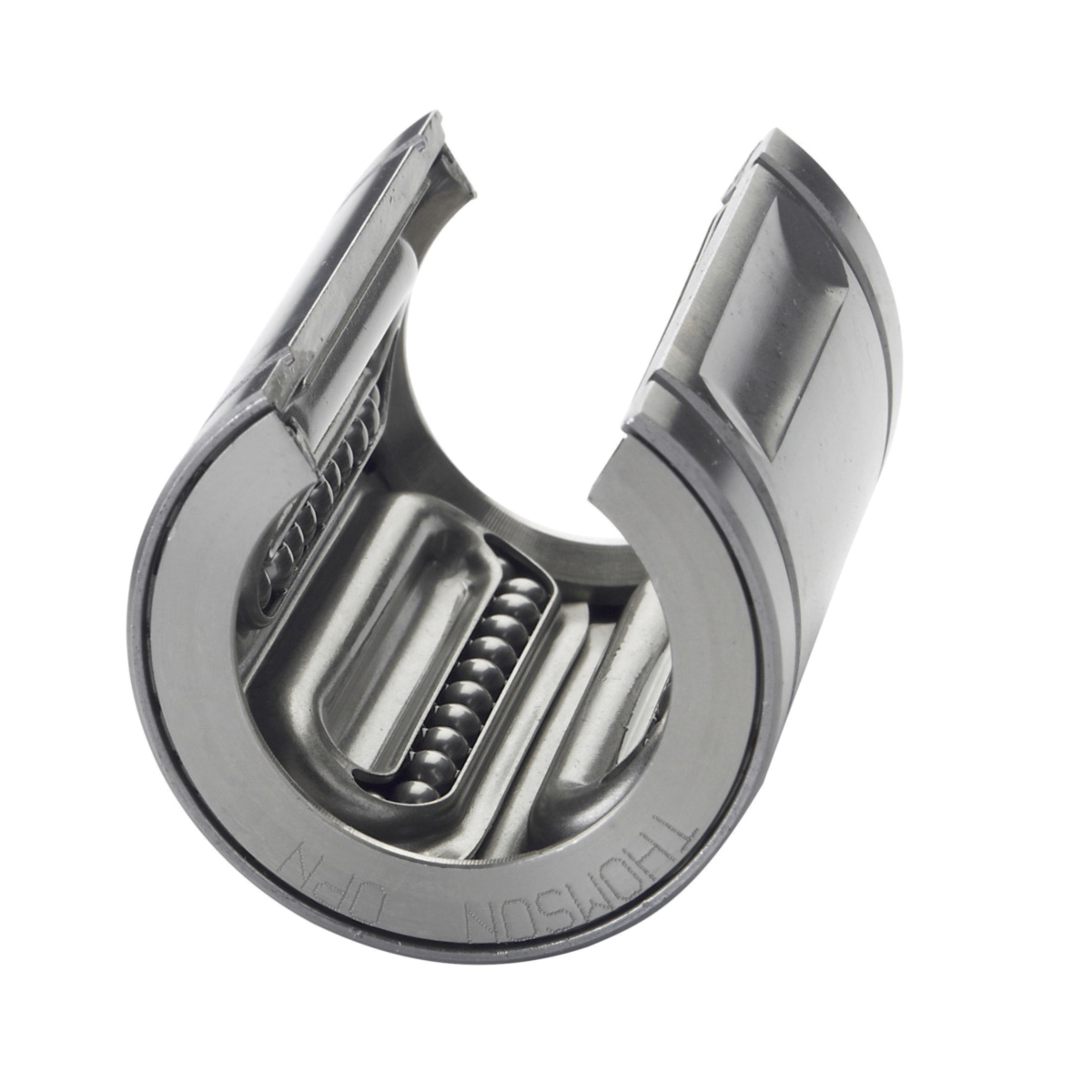

Thomson LINEAR BEARINGS 3/4 in Dia Shaft, 1-1/4 in OD, 1-5/8 in L THP OPN-122026
Precision Steel Ball Bushing® bearings offer great improvements in efficiency, productivity and accuracy over high-friction plain bearings flat-ways. The all-steel design makes the bearing product line perfect for replacing plain bearings in high temperature applications. Rigid construction makes them very durable compared to ball bushing bearings with polymer components. When installed in a standard Thomson® pillow block, the Precision Steel Ball Bushing® bearing can self-align up to 3 deg in all directions.
-
BrandThomson®
-
UPC662486100874
-
Manufacturer Part NumberOPN122026
-
CountryUSA
-
Load Capacity140 lb Dynamic
-
Temperature Rating500 deg F
-
TypeAdjustable Open
-
Shaft Diameter3/4 in
-
Bearing MaterialSteel
-
Outside Diameter1-1/4 in
-
Length1-5/8 in
- The RoundRail™ advantage which minimizes installation time and cost
- Steady state travel speeds up to 10 ft/s and accelerations to 450 ft/sq-s without the use of derating factors
- An operating temperature up to 600 deg F/315 deg C
- Replace high-friction plain bearings
- Lasting precision alignment
- High travel speeds
- Ease of installation
- Protection from contamination
- Precision steel Ball Bushing® bearings offer great improvements in efficiency, productivity and accuracy over high friction plain bearings flat-ways
- The all steel design makes the bearing product line perfect for replacing plain bearings in high temperature applications
- The steel sleeve anti-friction recirculating ball bushing provides rigid low drag movement 100x lower drag coefficient than a plain contact bearing
- A coefficient of friction as low as 0.001 when replacing high friction plain bearings, Precision Steel Ball Bushing® bearings dramatically improve machine productivity and efficiency
- For class L shafting
- No seal
- Not self-aligning
-
UNSPSC31171506
-
Package Description1/PK
-
