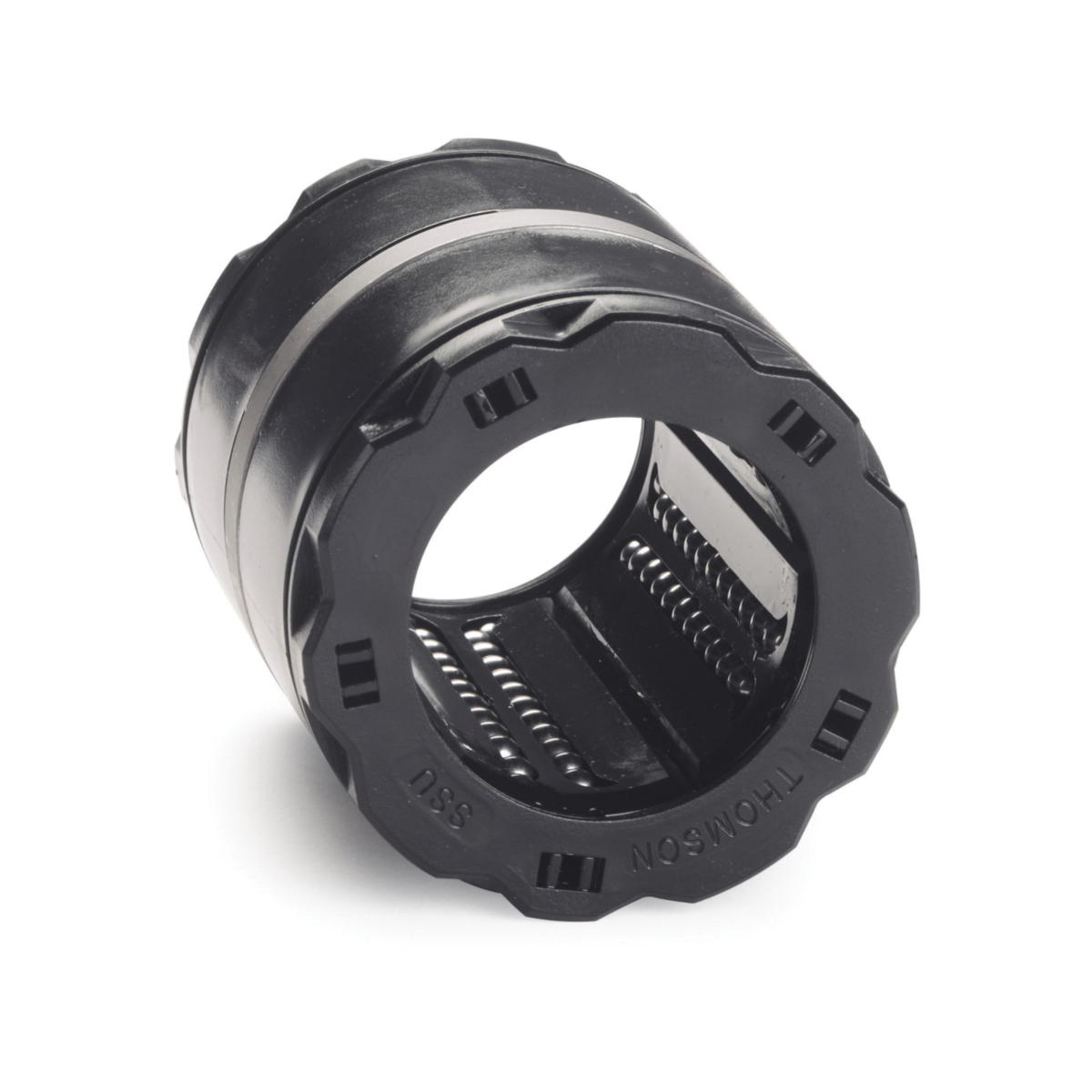

Thomson THOMSON LINEAR BALL BUSHINGS THP SSU-16
The Super Smart Ball Bushing® bearing family represents a major advancement in linear bearing technology worldwide. These patented and universally self-aligning bearings offer twice the load capacity or eight times the travel life of our industry standard Super Ball Bushing® bearing. To minimize installation time and cost, the Super Smart Ball Bushing® bearing can be ordered factory-installed in an industry standard single or twin pillow block.
-
BrandThomson®
-
UPC662486109860
-
Manufacturer Part NumberSSU16
-
CountryUSA
-
Load Capacity2200 N Dynamic/2400 N Static
-
Temperature Rating185 deg F
-
TypeAdjustable Closed
-

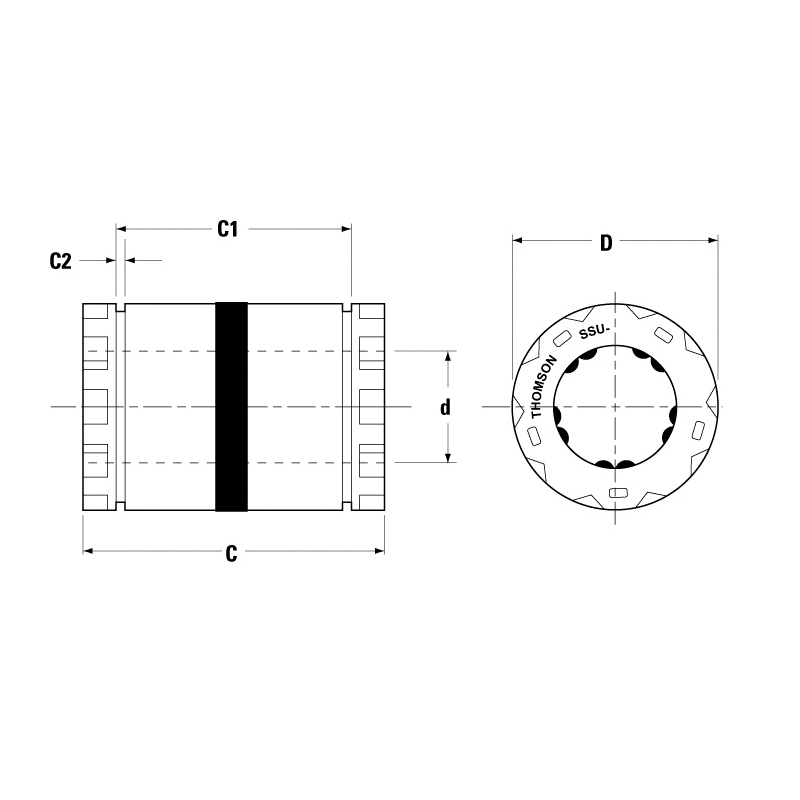

Shaft Diameter1 in
-
Bearing MaterialSteel
-
Outside Diameter1-9/16 in
-
Length2-1/4 in
- A precision, super finished, dual track bearing plate for optimum system smoothness and performance
- Longer travel life and minimal machine downtime when replacing conventional linear bearings or the industry standard Super Ball Bushing® bearing
- RoundRail™ advantage combined with universal self-alignment, eliminating the need for derating factors commonly required when using linear guides
- A coefficient of friction as low as 0.001 and allows the use of smaller, less expensive motors, belts, gears and ball screws when replacing high-friction, plain bearings
- Double-lip integral wipers that keep out dirt while retaining lubrication and travel life is maximized
- Steady state travel speeds up to 10 ft/s and accelerations to 450 ft/s without the use of derating factors
- The bearing plate is designed to rock 0.5 deg about the hardened precision ground outer ring
- The second key design feature of the Super Smart Ball Bushing® bearing plate is its ability to roll
- The shape formed by the rock and roll features allows the Super Smart Ball Bushing® bearing plate to rotate about its center
- The Super Smart Ball Bushing® bearing provides twice the load capacity of the industry standard Thomson® Super Ball Bushing® bearing and six times the load capacity of conventional linear bearings
- The Super Smart Ball Bushing® bearing provides eight times the travel life of the industry standard Thomson® Super Ball Bushing® bearing and 216 times the travel life of conventional linear bearings
- Its unique design with the steel band enables the bearing to preserve it's ID fit-up and self-aligning capability over extended use
- A universal self-alignment feature optimizes load distribution between ball tracks and assures uniform ball loading over the entire length of the bearing plate
- This patented product provides smooth, quiet, low drag linear movement at 6x the load capacity or 216 x the L10 travel life of a conventional steel linear ball bushing bearing
- These universally self-aligning bearings offer twice the load capacity or eight times the travel life of our Super Ball Bushing® bearing
- For class L, end supported shafting
- Self-aligning
- No wipers
-
UNSPSC31171506
-
Package Description1/PK
-
