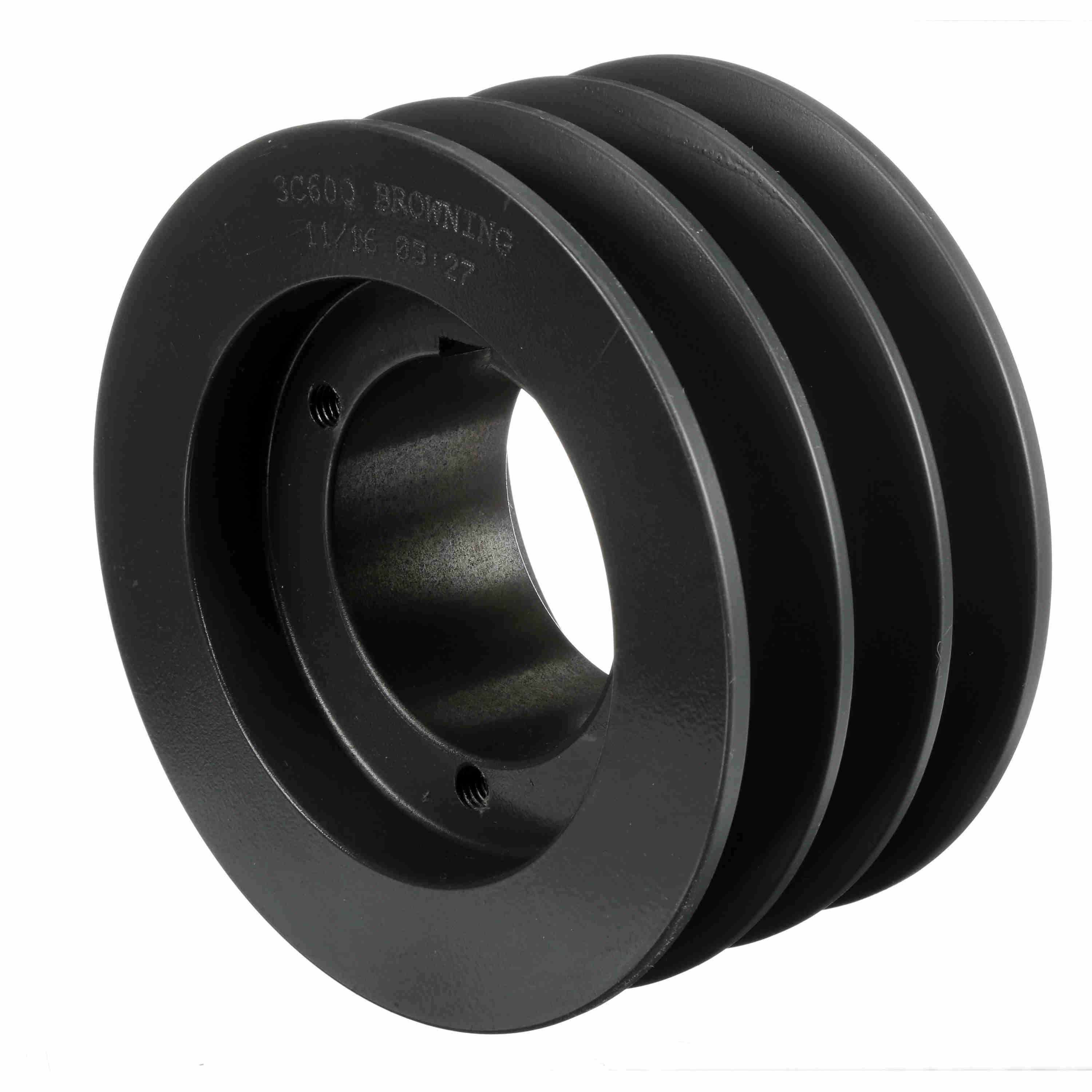

Browning® 1011998 Type 13 Web Multiple Sheave, 3/4 to 2-11/16 in Split Taper Bore, 6.4 in OD, 3 Grooves, 6.4 in Dia Pitch, 3-1/4 in W Face
Browning® offers an extensive multi groove sheave offering. This includes Browning® SPLIT TAPER® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time! Our exclusive B5V® sheaves have a patented design that offers 5 V hp in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.
-
BrandBrowning®
-
UPC662289295784
-
Manufacturer Part Number1011998
-
CountryUSA
-
Face Width3-1/4 in
-
Bushing TypeQ1
-
Pitch Diameter6.4 in
-
MaterialCast Iron
-
TypeType 13 Web
-
Hub Projection3/32 in
-
Number of Grooves3
-
Outside Diameter6.4 in
-
Bore Diameter3/4 to 2-11/16 in
-
Bore TypeSplit Taper
-
Overall Length3-37/64 in
-
Suitable For Use WithGripbelt® C Cross Section Belt
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
- Incorporates Browning Split Taper Bushing - The only bushing system that provides a true Key-to-Key drive to both the shaft and the hub
- Sheaves are Statically Balanced - All sheaves are statically balanced to assure smooth, vibration free performance
- Close Grain Cast iron - Close grain cast iron allows Browning to machine our sheaves to the closest tolerances possible
-
Alternative Part Number3C60Q
-
UNSPSC24101610
-
Package DescriptionEACH
-
Warranty1 Year
-
Instruction/Installation Manual
