LEVITON ELECTRIC LAMPHOLDERS LEV 523

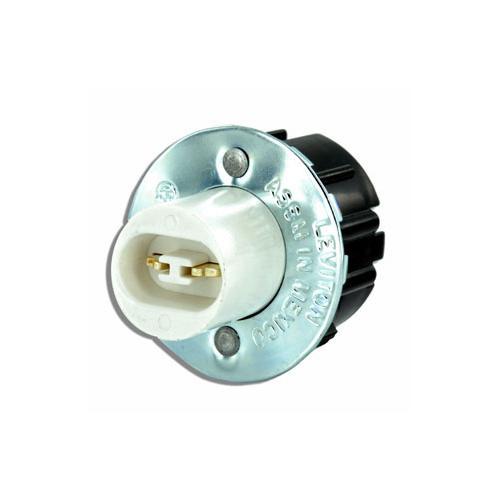

Leviton® 523 Plunger End Standard Lampholder, 660 W Lamp, 600 VAC, Double Contact Fluorescent Lamp
-
BrandLeviton®
-
UPC078477107713
-
Manufacturer Part Number523
-
CountryUSA
-
MaterialThermoset
-
ColorWhite
-
TypePlunger End Standard
-
Connection TypeQuick-Connect
-
Mounting TypeSnap-In
-
Voltage Rating600 V AC
-
Lamp Base TypeDouble Contact
-
Lamp TypeFluorescent
-
Lamp Wattage660 W
- Thermoplastic base
- Silver plated copper alloy contact
- 0.035 to 0.05 in THK panel
- Plunger contact
- 18 AWG wire size
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 3ZL08 |
-
Alternative Part Number7342990
-
UNSPSC39101605
-
IDEA Index ID7342990
-
Package DescriptionEACH
-
Standards/ApprovalsUL File No. E5833|CSA File No. LR5863
-
Warranty1 Year Limited
-
Specification Sheet
-
Instruction/Installation Manual
Recently Viewed
Leviton® 523 Plunger End Standard Lampholder, 660 W Lamp, 600 VAC, Double Contact Fluorescent Lamp
Sylvania QUICKTRONIC® Professional™ QTP-3X32T8/UNV-ISN-SC/49945 Universal Voltage Electronic Ballast, 32 W Lamp, 120 V AC, Instant, 0.88 Ballast Factor
Sylvania QUICKTRONIC® Professional QTP-3X32T8/UNV-ISN-SC/49945 Electronic Ballast, T8 Lamp, 32 W Lamp, 120 VAC, Instant, 0.88 Ballast Factor
Sylvania QHE4X54T5HOUNVPSNHTSCLDOE/52665 Start Electronic Ballast, 54 W Lamp, 120/277 V AC, Programmed/Rapid, 1.02 Ballast Factor
Sylvania QHE4X54T5HOUNVPSNHTSCLDOE/52665 Start Electronic Ballast, FP54T5HO Lamp, 120/277 VAC, Programmed/Rapid, 1.02 Ballast Factor
Leviton® newly re-designed pedestal type fluorescent lamp holders simplify fixture design and increase options for OEMs. The medium bi-pin and high output 800 mA and 1500 mA recessed double contact lamp holders are molded out of high temperature, arc resistant thermoplastic with a 94-V-0 flammability rating. Adding a new dimension, the previously round plunger area has been reshaped into a rectangle, resulting in smoother travel during lamp insertion. Now available shunted for use with instant start ballasts, the lamp holders fit the same 20 ga. Panel openings as previous Leviton® models.
