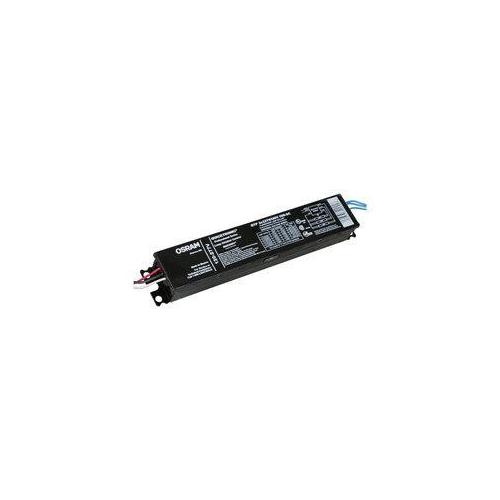

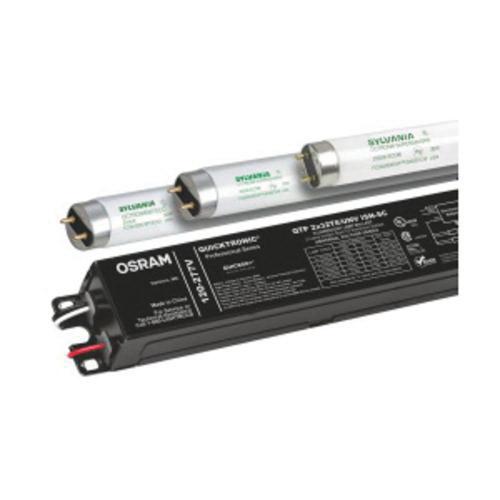

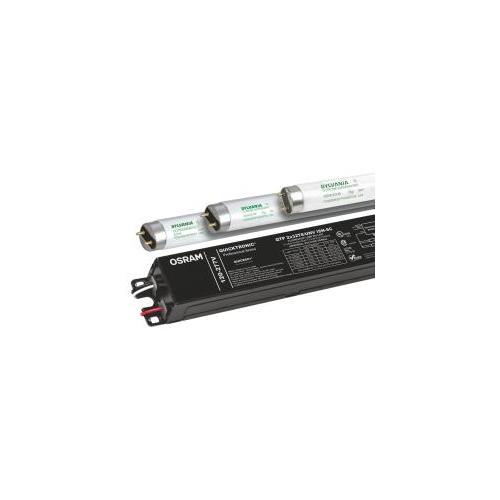

Sylvania QUICKTRONIC® Professional™ QTP-3X32T8/UNV-ISN-SC/49945 Universal Voltage Electronic Ballast, 32 W Lamp, 120 V AC, Instant, 0.88 Ballast Factor
Sylvania QUICKTRONIC® Professional QTP-3X32T8/UNV-ISN-SC/49945 Electronic Ballast, T8 Lamp, 32 W Lamp, 120 VAC, Instant, 0.88 Ballast Factor
-
BrandSylvania
-
UPC046135499456
-
Manufacturer Part NumberQTP-3X32T8/UNV-ISN-SC/49945
-
CountryUSA|Canada
-
Temperature Range70 deg C
-
Power Factor>0.97
-
Total Harmonic Distortion<10 %
-
Minimum Starting Temperature-20 deg F
-
Voltage Rating120 V AC
-
Ballast Factor0.88
-
Number of Lamps3
-
Dimensions9.469 in L x 1.681 in W x 1.181 in H
-
Start TypeInstant
-
Lamp TypeT8
-
Lamp Wattage32 W
-
Frequency Rating50/60 Hz
-
TypeUniversal Voltage
-
Amperage Rating0.26 A
- Normal ballast factor
- Universal voltage
- Lowest power T8 plus systems
- Virtually eliminates lamp flicker
-
Alternative Part Number49945|8133106|49945|QTP-3x32T8/UNV-ISN-SC|8952222
-
UNSPSC39111801
-
IDEA Index ID8133106
-
Standards/ApprovalsFCC 47 CFR Part 18|Non-Consumer Compliant|RoHS Compliant
-
Package DescriptionEACH
-
Warranty Information
-
Specification Sheet
