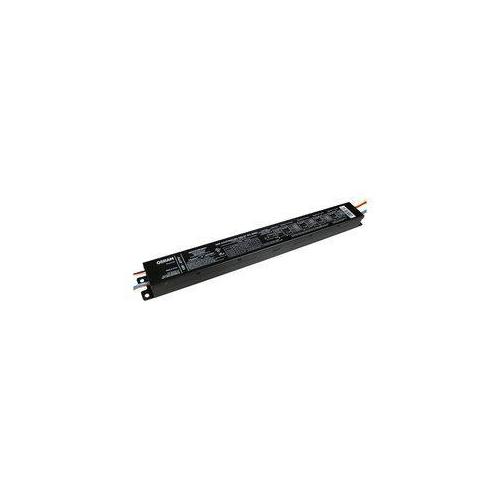

Sylvania QHE4X54T5HOUNVPSNHTSCLDOE/52665 Start Electronic Ballast, 54 W Lamp, 120/277 V AC, Programmed/Rapid, 1.02 Ballast Factor
Sylvania QHE4X54T5HOUNVPSNHTSCLDOE/52665 Start Electronic Ballast, FP54T5HO Lamp, 120/277 VAC, Programmed/Rapid, 1.02 Ballast Factor
-
BrandSylvania
-
UPC046135526657
-
Manufacturer Part NumberQHE4X54T5HOUNVPSNHTSCLDOE/52665
-
CountryUSA|Canada
-
Temperature Range70 deg C
-
Power Factor>0.98
-
Total Harmonic Distortion<10% %
-
Frequency Rating50/60 Hz
-
Minimum Starting Temperature-20 deg F
-
Voltage Rating120/277 V AC
-
Wattage233 W
-
Amperage Rating0.85 A
-
Ballast Factor1.02
-
Number of Lamps4
-
Dimensions16.732 in L x 1.697 in W x 1.106 in H
-
Start TypeProgrammed/Rapid
-
Lamp TypeFP54T5HO
-
Thermal ProtectionClass P
-
Mounting TypeRemote
-
Lamp Wattage54 W
-
Enclosure TypeNEMA 1
- High power factor, Lightweight
- QUICKSENSE® ballast technology (end of lamp life sensing)
- 18972 mean lumens
- Less than 1.6 lamp crest factor
- Series lamp connection
- 0.4 ballast efficiency factor
- Lead-free solder, printed circuit board and manufacturing process
- Low harmonic distortion
- Operates at >42 kHz to reduce potential interference with infrared control systems
- High efficiency systems over 90% efficient
- 5000 rated lumens
- PROStart® programmed rapid start
- 88 lumens per watt system efficiency

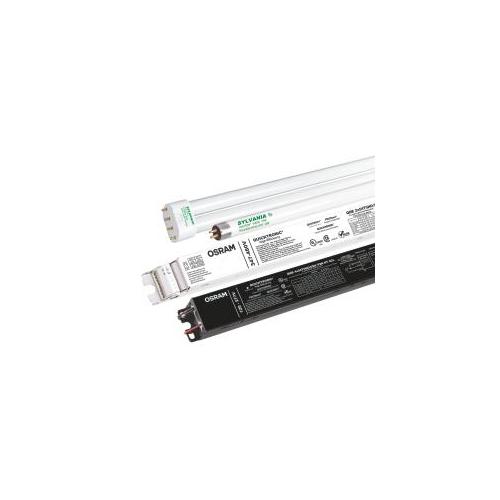

- QUICKTRONIC® T5HO HT ballast are also compatible with other lamp manufacturers equivalent lamp types that meet ANSI specifications
-
Alternative Part NumberQHE4X54T5HOUNVPSNHTSCLDOE|13213331|52665|52665|13145056
-
UNSPSC39111801
-
IDEA Index ID13145056
-
Standards/ApprovalsCSA, CC Certified|UL Listed|FCC 47CFR Part 18|ANSI C62.41|RoHS Compliant
-
