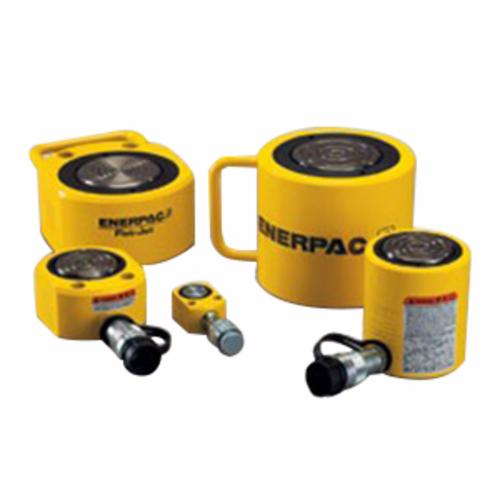

Enerpac® RSM-100 Low Height Single Acting Spring Return Portable Hydraulic Cylinder, 10 ton Capacity, 0.44 in L Stroke, 10000 psi
Enerpac® RSM-100 Low Height Single Acting Spring Return Portable Hydraulic Cylinder, 10 ton Capacity, 0.44 in L Stroke, 10000 psi
-
BrandEnerpac®
-
UPC662005302352
-
Manufacturer Part NumberRSM-100
-
CountryUSA
-
Capacity10 ton
-
FinishBaked Enamel/Polished Chrome
-
Port Size3/8-18 NPTF
-
Pressure Rating10000 psi
-
TypeLow Height Single Acting Spring Return
-
SeriesRSM
-
Housing MaterialChromium Steel
-
Dimensions3.25 x 2.19 in
-
Stroke Length0.44 in
- Compact, flat design for use where other cylinders will not fit
- Mounting holes permit easy fixturing
- Hard chrome plated high quality steel plungers
- Grooved plunger ends require no saddle
- 2.24 sq-in cylinder effective
- 1.69 in collapsed height
- 2.13 in extended height
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 101614365 |
-
UNSPSC27121602
