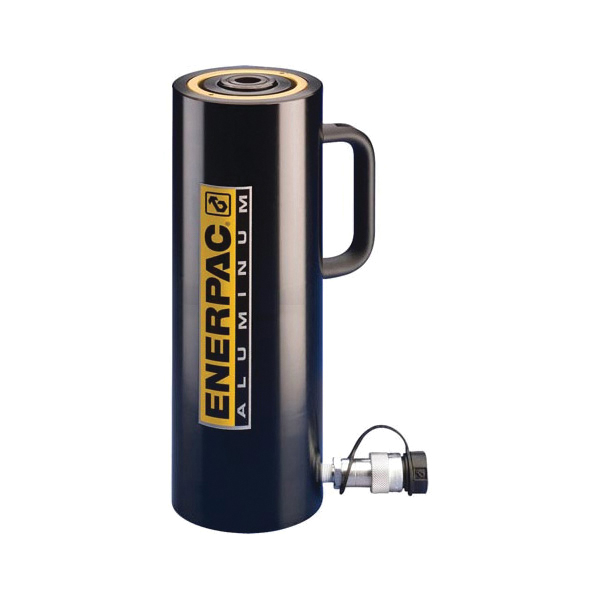

Enerpac® RAC506 Single Acting Solid Plunger Spring Return Hydraulic Cylinder, 54.9 ton Advance Capacity, 3.74 in Bore, 5.91 in L Stroke, 11.26 in Retract, 1.97 in Dia Rod, 10000 psi Pressure
Enerpac® RAC506 Single Acting Solid Plunger Spring Return Hydraulic Cylinder, 54.9 ton Advance Capacity, 3.74 in Bore, 5.91 in L Stroke, 11.26 in Retract, 1.97 in Dia Rod, 10000 psi Pressure
-
BrandEnerpac®
-
UPC662005125784
-
Manufacturer Part NumberRAC506
-
CountryUSA
-
Capacity54.9 ton Advance
-
Port Size3/8-18 NPTF
-
Pressure Rating10000 psi
-
TypeSingle Acting Solid Plunger Spring Return
-
Retract11.26 in
-
Rod Diameter1.97 in
-
Mounting TypeBase
-
SeriesRAC Series
-
Housing MaterialAluminum
-
Dimensions5.12 in OD x 17.17 in H
-
Stroke Length5.91 in
-
Bore Size3.74 in
- Composite bearings prevent metal to metal contact, increasing cylinder life and resistance to side loads of up to 10%
- Hard coat finish on all surfaces resists damage and extends cylinder life
- For protection against load induced damage, a saddle is standard on all models and a steel baseplate is standard on models 20 ton and above
- Integral stop ring prevents plunger over travel and is capable of withstanding the full cylinder capacity
- High strength return spring for rapid cylinder retraction
-
UNSPSC27121602
-
Includes(1) CR400 High Flow Female Half Hydraulic Coupler, Dust Cap and Handle
-
Standards/ApprovalsASME B-30.1|EAR99|ETC Certified
-
WarrantyLimited
-
Warranty Information
-
Specification Sheet
-
Instruction/Installation Manual
-
Line Drawing
