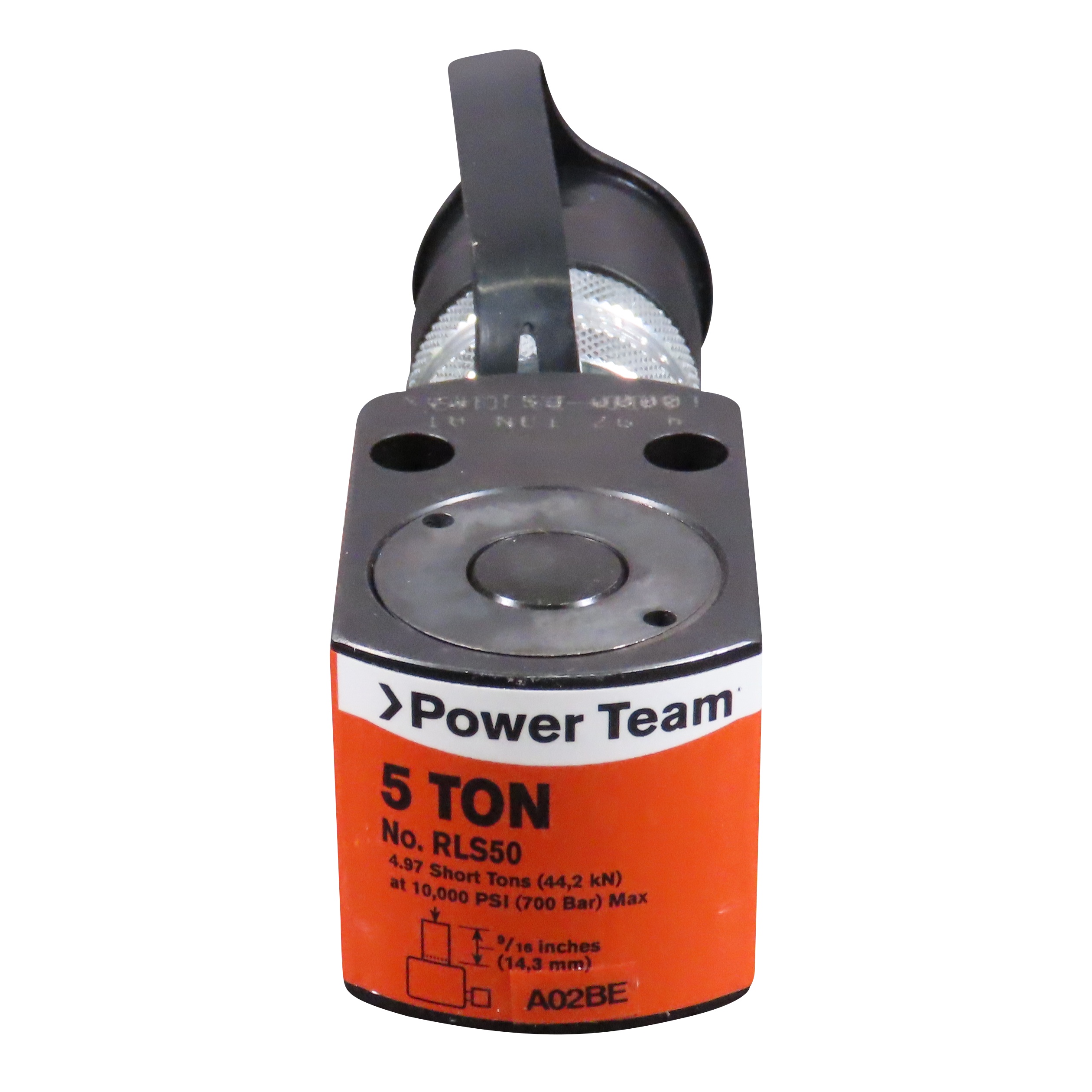

Power Team® RLS50 Low Height Low Profile Single Acting Spring Return Hydraulic Cylinder, 5 ton Capacity, 1-1/8 in Dia Bore, 9/16 in L Stroke, 1-5/8 in H Retract, 5/8 in Dia Rod, 10061 psi
Power Team® RLS50 Low Height Low Profile Single Acting Spring Return Hydraulic Cylinder, 5 ton Capacity, 1-1/8 in Dia Bore, 9/16 in L Stroke, 1-5/8 in H Retract, 5/8 in Dia Rod, 10061 psi
-
BrandPower Team®
-
UPC662536003186
-
Manufacturer Part NumberRLS50
-
CountryUSA|Canada
-
Capacity5 ton
-
Port Size3/8 in NPTF
-
Pressure Rating10061 psi
-
TypeLow Height Low Profile Single Acting Spring Return
-
Retract1-5/8 in H
-
Rod Diameter5/8 in
-
Mounting TypeBase
-
SeriesRLS
-
Housing MaterialSteel
-
Dimensions1-5/8 x 2-9/16 in OD
-
Stroke Length9/16 in
-
Bore Size1-1/8 in Dia
- Ideal for confined areas from 1-5/8 to 4 in clearance
- Cylinder body, piston and gland nut power Tech treated for corrosion and abrasion resistance
- Standard domed piston rod (5-30 ton) or swivel cap (50 to 150 ton) minimize effects of off-center loading
- Unique heavy duty spring provides fast piston return
- A 9796 3/8 in NPTF female half coupler is standard with cylinder
- Couplers on all cylinders, except RLS50, are angled upward for extra clearance
-
UNSPSC27121602
-
Standards/ApprovalsASME B30.1
-
Instruction/Installation Manual
-
Catalog
