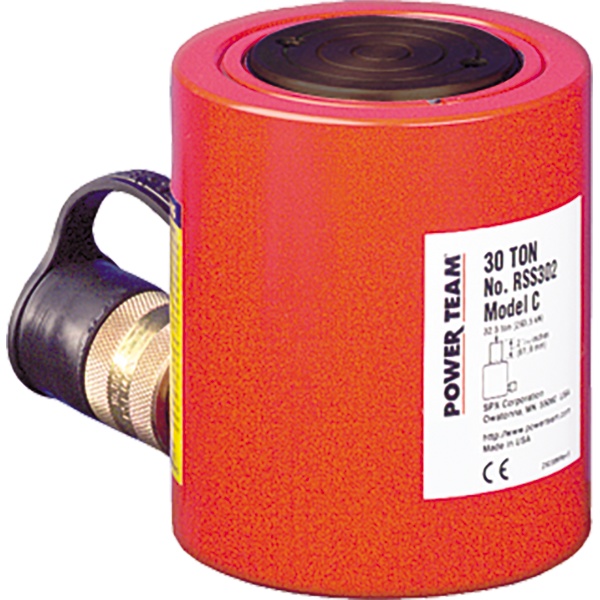

Power Team® RSS302 Shorty Single Acting Spring Return Hydraulic Cylinder, 30 ton Capacity, 2-7/8 in Dia Bore, 2-7/16 in L Stroke, 4-5/8 in H Retract, 2-1/2 in Dia Rod, 9243 psi
Power Team® RSS302 Shorty Single Acting Spring Return Hydraulic Cylinder, 30 ton Capacity, 2-7/8 in Dia Bore, 2-7/16 in L Stroke, 4-5/8 in H Retract, 2-1/2 in Dia Rod, 9243 psi
-
BrandPower Team®
-
UPC662536003582
-
Manufacturer Part NumberRSS302
-
CountryUSA|Canada
-
Capacity30 ton
-
Pressure Rating9243 psi
-
TypeShorty Single Acting Spring Return
-
Retract4-5/8 in H
-
Rod Diameter2-1/2 in
-
SeriesRSS
-
Housing MaterialSteel
-
Dimensions4 in OD
-
Stroke Length2-7/16 in
-
Bore Size2-7/8 in Dia

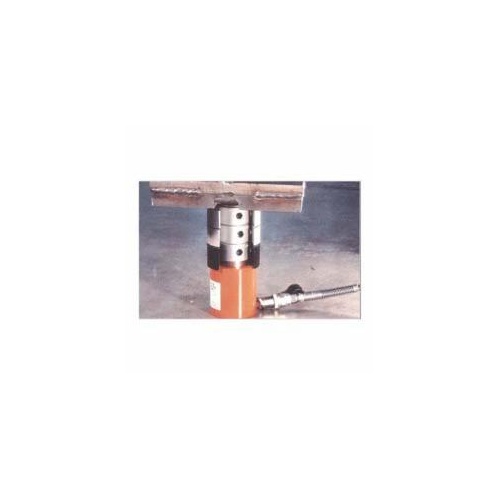

- Ideal for confined areas from 3-1/2 in to 11-7/16 in clearance
- Power Tech plated piston rods and gland nuts resist scoring and corrosion
- Heavy duty return spring (except for double-acting models) provides fast piston return and low collapsed height
- Coupler on 10 thru 50 ton models is angled upward 5 deg for added clearance
- Grooved piston top keeps load from sliding
- Cylinders can be dead-ended at full capacity
-
UNSPSC27121602
-
Standards/ApprovalsASME B30.1
-
Catalog
-
Instruction/Installation Manual
