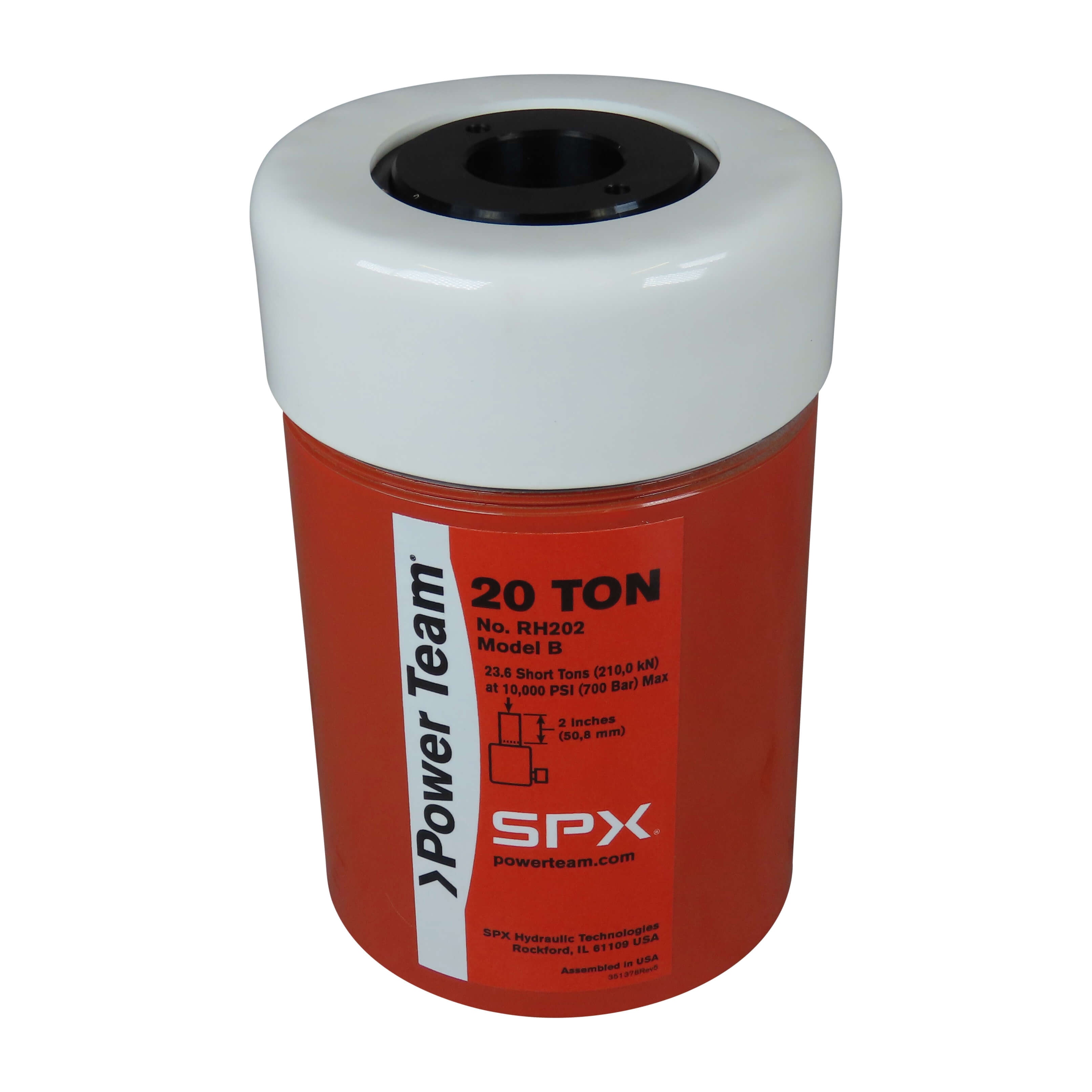

Power Team® RH202 RH Series Center Hole Welded Hydraulic Cylinder, 20 ton, 2 in L Stroke, 6-1/8 in H Retract, 2-1/8 in Dia Rod, 8466 psi
Power Team® RH202 RH Series Center Hole Welded Hydraulic Cylinder, 20 ton, 2 in L Stroke, 6-1/8 in H Retract, 2-1/8 in Dia Rod, 8466 psi
-
BrandPower Team®
-
Manufacturer Part NumberRH202
-
CountryUSA|Canada
-
Capacity20 ton
-
Port Size1 in
-
Pressure Rating8466 psi
-
TypeCenter Hole Welded
-
Retract6-1/8 in H
-
Rod Diameter2-1/8 in
-
SeriesRH Series
-
Dimensions3-7/8 in OD
-
Stroke Length2 in
- Interchangeable piston head inserts provide versatility of application
- Single acting models feature threaded collar
- Withstands full dead end load
- Corrosion-resistant standpipe has power tech treatment
- All cylinders except RH120 are furnished with a 9796 3/8 in NPT female half coupler
- Aluminum cylinder body and piston are featured on the RHA306 cylinder
-
UNSPSC27121602
-
Standards/ApprovalsASME B30.1|CE Certified
-
