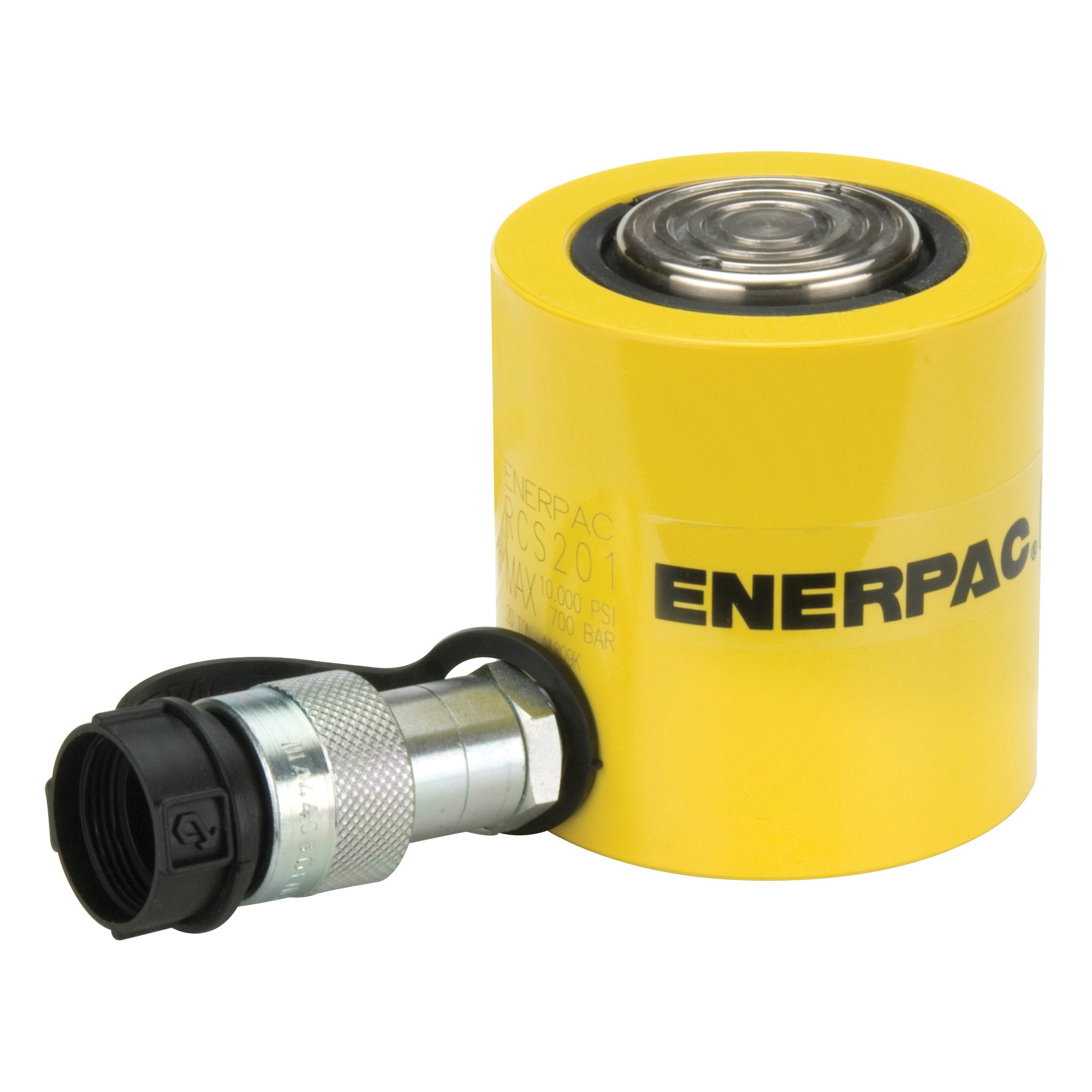

Enerpac® Flat-Jac® RCS-201 Low Height Single Acting Spring Return Hydraulic Cylinder, 20 ton Capacity, 2.38 in Dia Bore, 1-3/4 in L Stroke, 3.88 in H Retract, 2 in Dia Rod, 10000 psi
Enerpac® Flat-Jac® RCS-201 Low Height Single Acting Spring Return Hydraulic Cylinder, 20 ton Capacity, 2.38 in Dia Bore, 1-3/4 in L Stroke, 3.88 in H Retract, 2 in Dia Rod, 10000 psi
-
BrandEnerpac®
-
UPC662005302109
-
Manufacturer Part NumberRCS-201
-
CountryUSA
-
Capacity20 ton
-
FinishBaked Enamel
-
Pressure Rating10000 psi
-
TypeLow Height Single Acting Spring Return
-
Retract3.88 in H
-
Rod Diameter2 in
-
SeriesRCS
-
Housing MaterialSteel
-
Dimensions3.63 in OD
-
Stroke Length1-3/4 in
-
Bore Size2.38 in Dia
- Lightweight, low profile design for use in confined spaces
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
- Grooved plunger end with threaded holes for mounting tilt saddles
- Plated steel plungers
- Maximum power to height ratio
| Competitor Name | Competitor Part Number |
|---|---|
| Applied Industrial Technologies | 101967544 |
-
UNSPSC27121602
-
Package Description1/PK
-
WarrantyLimited
-
Warranty Information
-
Catalog
-
Instruction/Installation Manual
