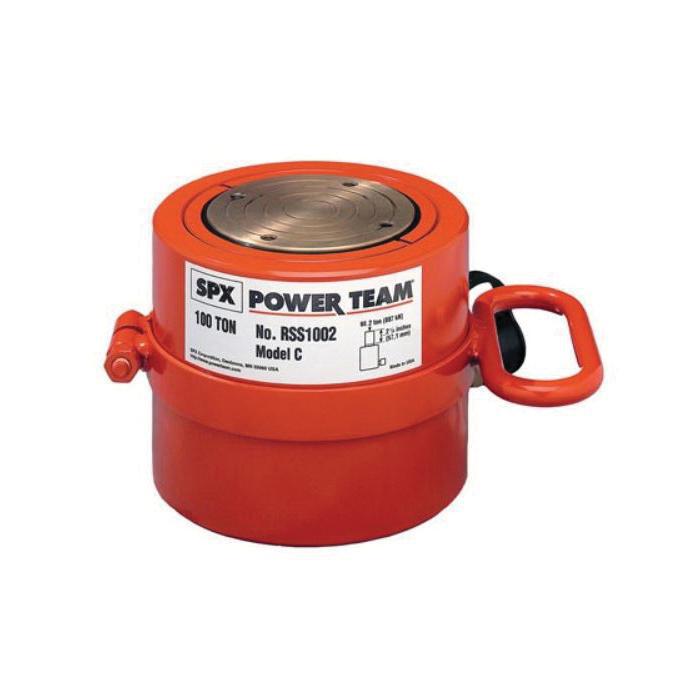

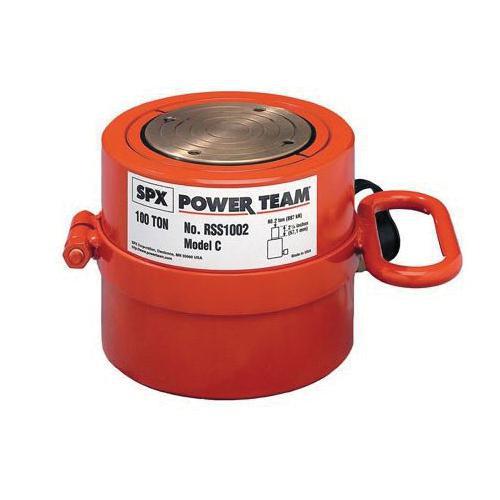

Power Team® RSS1002 RSS Heavy Duty Shorty Welded Hydraulic Cylinder, 100 ton Capacity, 5 in Bore, 2-1/4 in L Stroke, 5-1/2 in H Retract, 4-3/8 in Dia Rod, 10186 psi Pressure
Power Team® RSS1002 RSS Heavy Duty Shorty Welded Hydraulic Cylinder, 100 ton Capacity, 5 in Bore, 2-1/4 in L Stroke, 5-1/2 in H Retract, 4-3/8 in Dia Rod, 10186 psi Pressure
-
BrandPower Team®
-
UPC662536279277
-
Manufacturer Part NumberRSS1002
-
CountryUSA|Canada
-
Capacity100 ton
-
Port Size15/16 in
-
Pressure Rating10186 psi
-
TypeHeavy Duty Shorty Welded
-
Retract5-1/2 in H
-
Rod Diameter4-3/8 in
-
SeriesRSS
-
Dimensions6-5/8 in OD
-
Stroke Length2-1/4 in
-
Bore Size5 in
- Coupler on 10 through 50 ton models is angled upward 5 deg for added clearance
- Power-Tech™ plated piston rods and gland nuts resist scoring and corrosion
- Heavy duty return spring (except for double acting models) provides fast piston return and low collapsed height
- Grooved piston top keeps load from sliding
- Cylinders can be dead ended at full capacity
- Removable carrying handle on 100 ton and 250 ton models
-
Alternative Part NumberRSS1002V
-
UNSPSC27121602
-
Standards/ApprovalsASME B30.1|CE Certified
-
