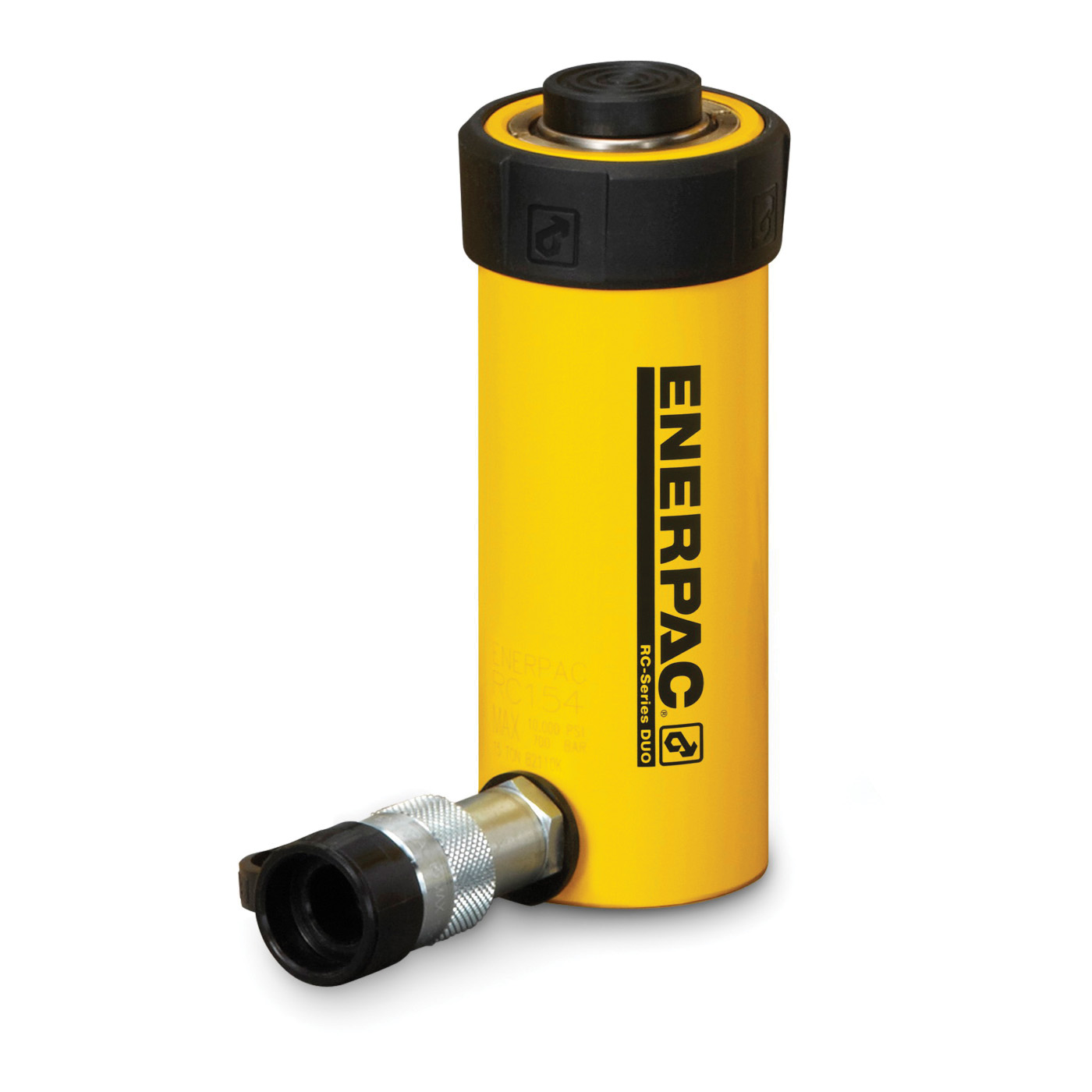

Enerpac® RC-104 DUO General Purpose Single Acting Hydraulic Cylinder, 10 ton Capacity, 1.69 in Dia Bore, 4.13 in L Stroke, 6-3/4 in H Retract, 1-1/2 in Dia Rod, 700 bar
Enerpac® RC-104 DUO General Purpose Single Acting Hydraulic Cylinder, 10 ton Capacity, 1.69 in Dia Bore, 4.13 in L Stroke, 6-3/4 in H Retract, 1-1/2 in Dia Rod, 700 bar
-
BrandEnerpac®
-
UPC662005300808
-
Manufacturer Part NumberRC-104
-
CountryUSA
-
Capacity10 ton
-
FinishBaked Enamel
-
Pressure Rating700 bar
-
TypeDUO General Purpose Single Acting
-
Retract6-3/4 in H
-
Rod Diameter1-1/2 in
-
Mounting TypeBase
-
SeriesRC
-
Housing MaterialAlloy Steel
-
Dimensions2-1/4 in OD
-
Stroke Length4.13 in
-
Bore Size1.69 in Dia
- Enerpac® RC series single acting hydraulic cylinders set the industry standard for general purpose cylinders
- Unique GR2 bearing design, reduces wear, extending life
- Collar threads, plunger threads and base mounting holes enable easy fixturing
- Designed for use in all positions
- High strength alloy steel for durability
- Redesigned cylinder thread protector for ease of use
- Heavy duty, pretensioned spring improves retraction speed
- Baked enamel finish for increased corrosion resistance
- Plunger wiper reduces contamination, extending cylinder life
| Competitor Name | Cross-Reference Number |
|---|---|
| Applied Industrial Technologies | 101949931 |
-
UNSPSC27121602
-
Package Description1/PK
-
WarrantyLimited
-
Catalog
-
Warranty Information
-
Instruction/Installation Manual
