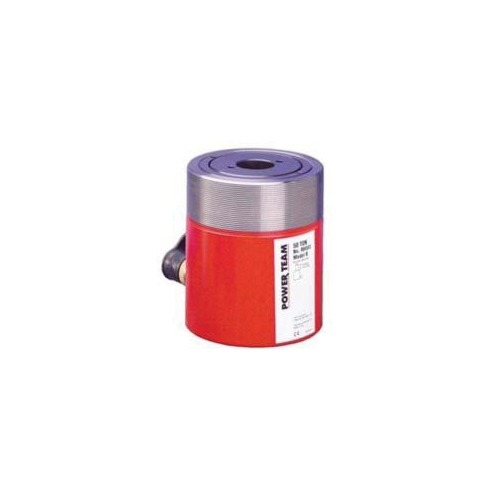

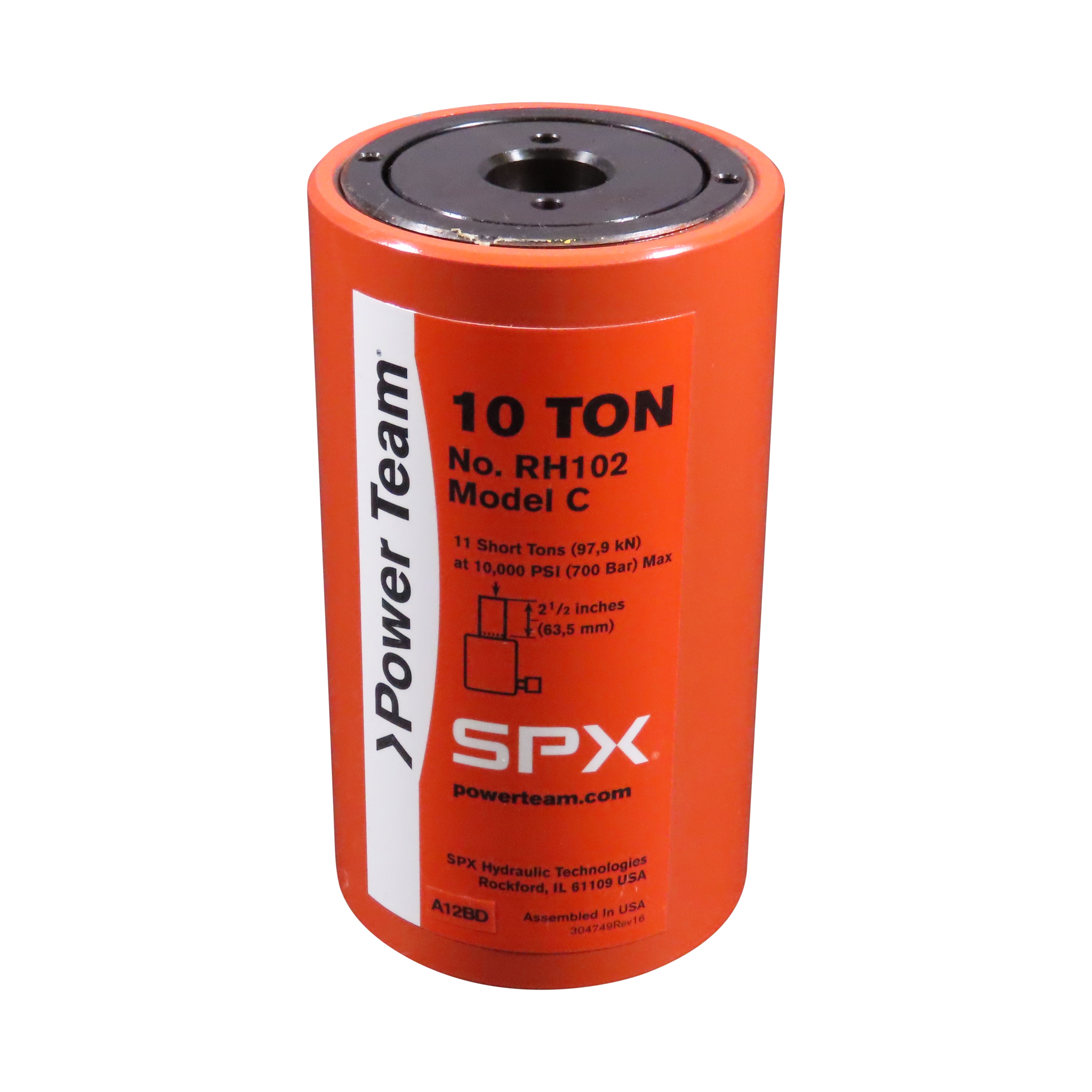

Power Team 10-TON CENTER-HOLE HYDRAULIC RAMS PTD RH-102
Power TeamĀ® RH102 Center Hole Single Acting Spring Return Hydraulic Cylinder, 10 ton Capacity, 1.677 in Dia Bore, 2-1/2 in L Stroke, 5-5/16 in H Retract, 2-1/16 in Dia Rod, 9054 psi
-
BrandPower TeamĀ®
-
UPC662536002981
-
Manufacturer Part NumberRH102
-
CountryUSA|Canada
-
Capacity10 ton
-
Port Size3/8 in NPTF
-
Pressure Rating9054 psi
-
TypeCenter Hole Single Acting Spring Return
-
Retract5-5/16 in H
-
Rod Diameter2-1/16 in
-
SeriesRH
-
Housing MaterialAluminum
-
Dimensions3 in OD
-
Stroke Length2-1/2 in
-
Bore Size1.677 in Dia
- Most models feature threaded collar, excludes the RH203 and RHA306 models
- All cylinders are furnished with a 9796 3/8 in NPT female half coupler, except the rh120
- Aluminum cylinder body and piston are featured on the RHA306 cylinder
- Aluminum cylinder body and piston are featured on the RHA306 cylinder
- Featured aluminum cylinder body and piston
- Feature plain collar
-
UNSPSC27121602
-
Standards/ApprovalsASME B30.1
-
Catalog
-
Instruction/Installation Manual
