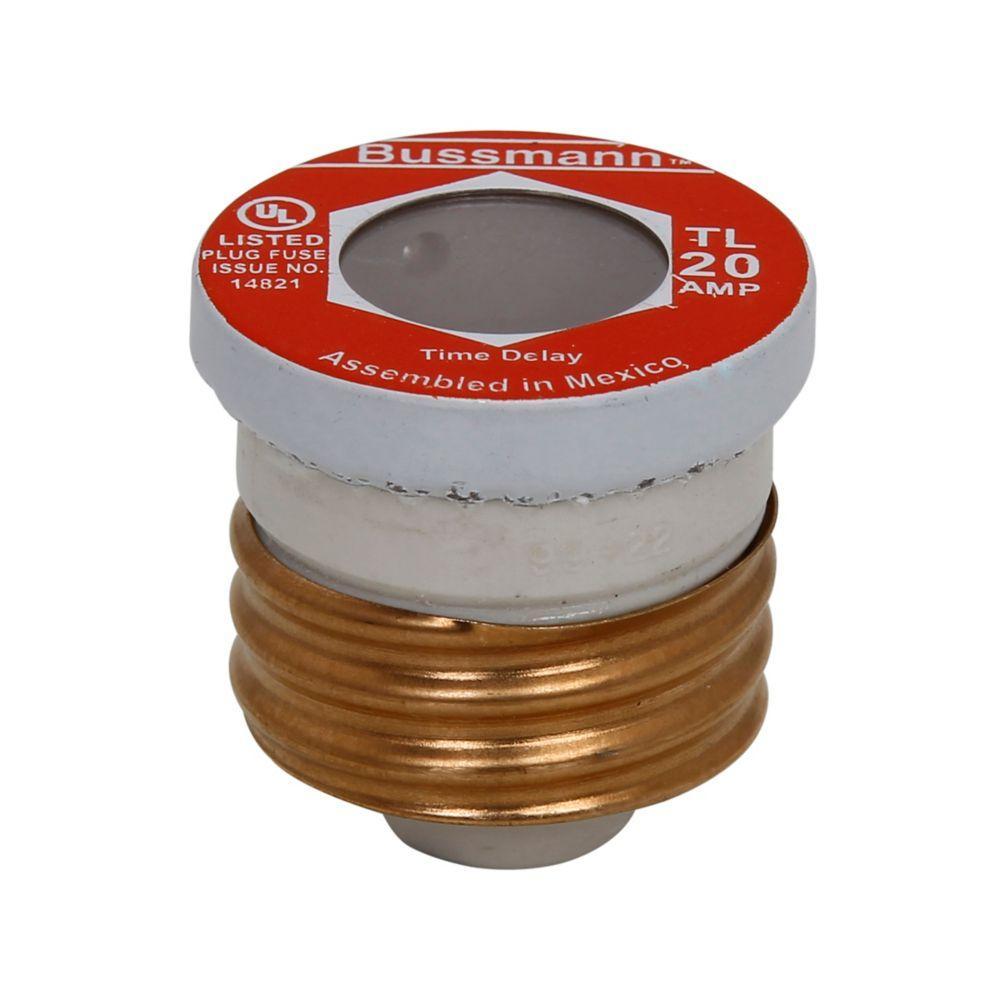

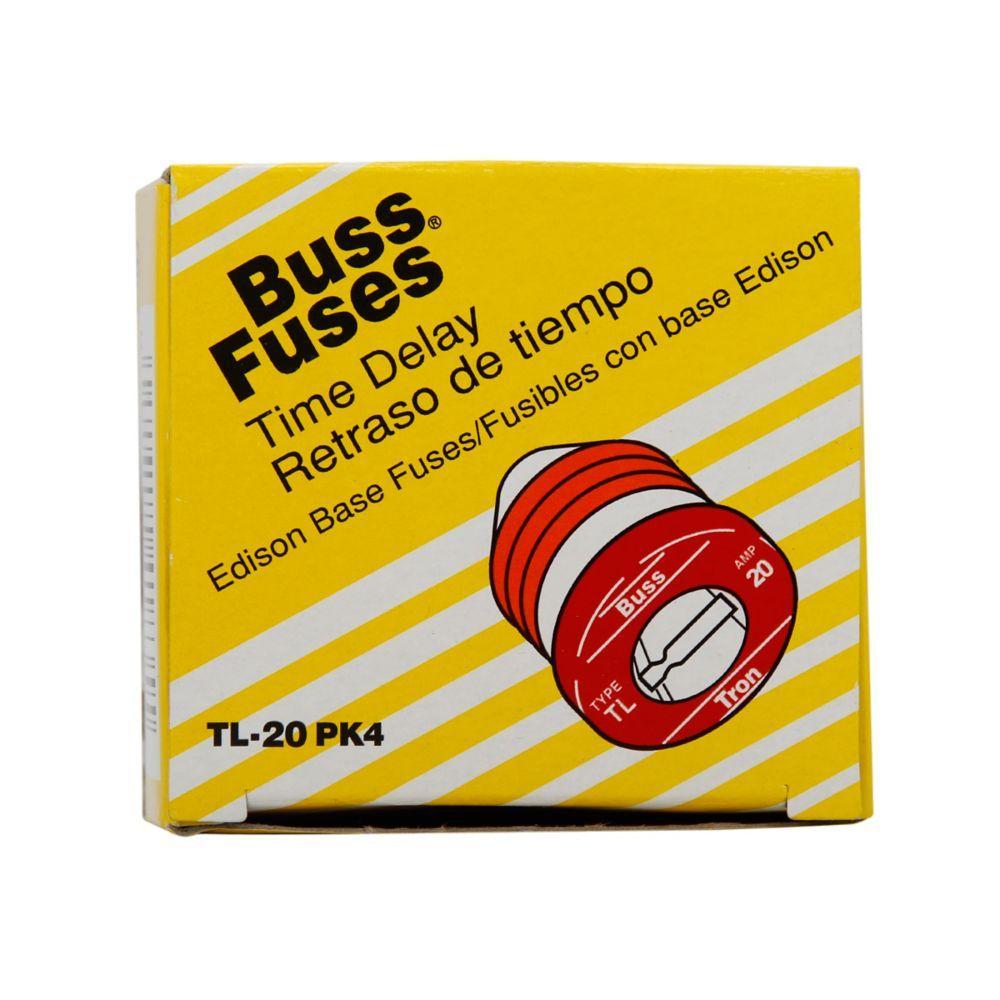

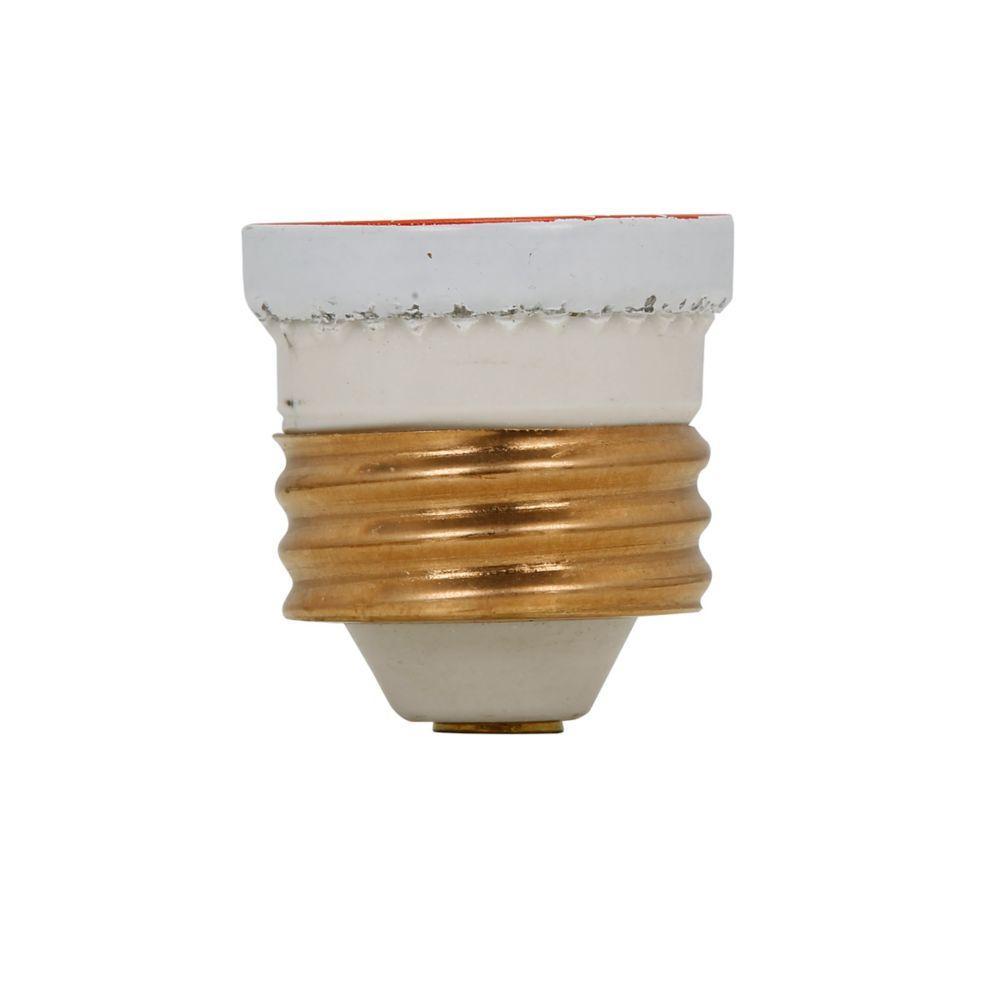

Bussmann TL-20PK4 Type TL Time Delay Plug Fuse, 20 A, 125 V AC, 10 kA Interrupt
Bussmann TL-20PK4 Type TL Time Delay Plug Fuse, 20 A, 125 VAC, 10 kA Interrupt
-
BrandBussmann
-
UPC051712418355
-
Manufacturer Part NumberTL-20PK4
-
CountryUSA
-
MaterialPlastic
-
TypeType TL Time Delay
-
Mounting TypeThreaded
-
Voltage Rating125 V AC
-
Amperage Rating20 A
-
Interrupt Rating10 kA
-
Body Size1-1/4 in L x 1-1/4 in W x 1-1/4 in H
- Small motor and high inductive load circuits with high in-rush current levels, box cover units to provide equipment protection, residential or light
- Edison base
- Medium duty time delay plug fuse
- Will withstand typical motor starting surges
- Use in residential or light duty circuits that contain electric motors
- These fuses thread into fuse receptacles or box cover units for supplemental protection
- Brass thread
| Cross-Reference Number |
|---|
| 511510 |
-
Alternative Part Number15972826
-
UNSPSC39121605
-
IDEA Index ID15972826
-
Package DescriptionEACH
-
Standards/ApprovalsContact factory
-
Specification Sheet
