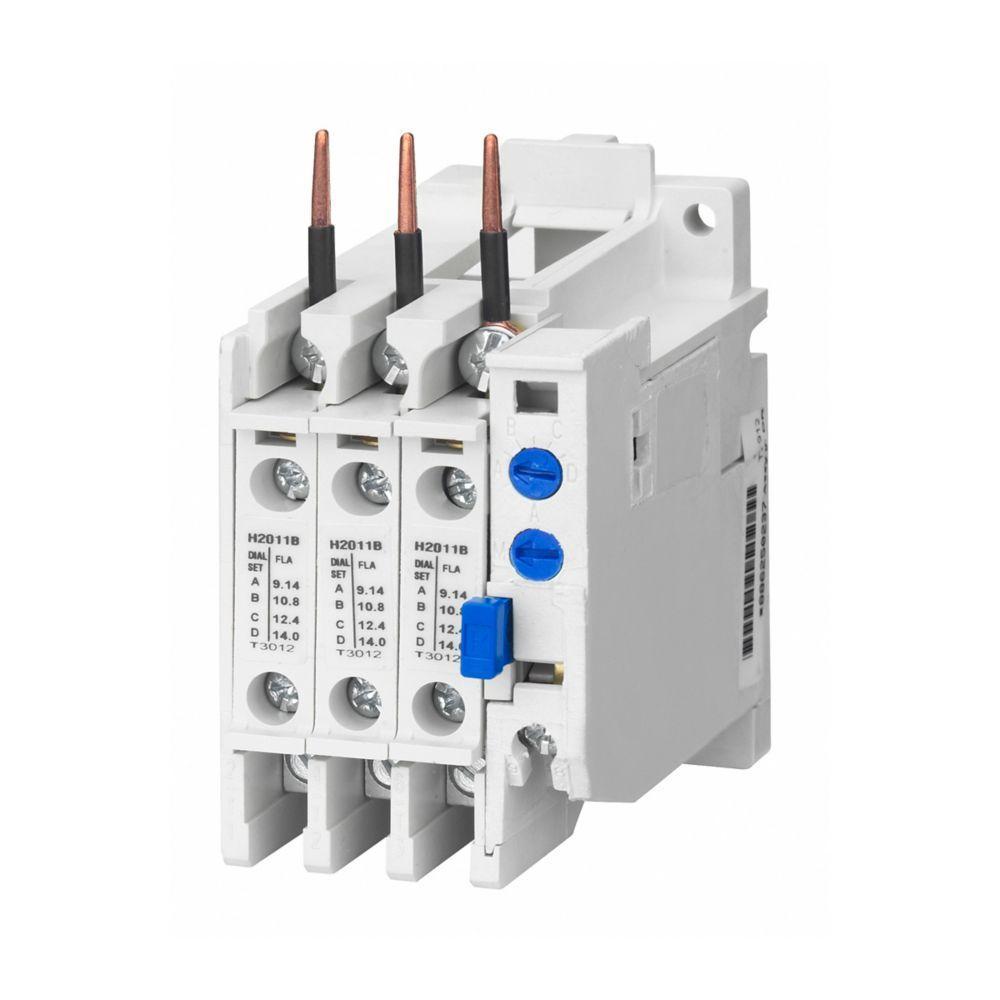

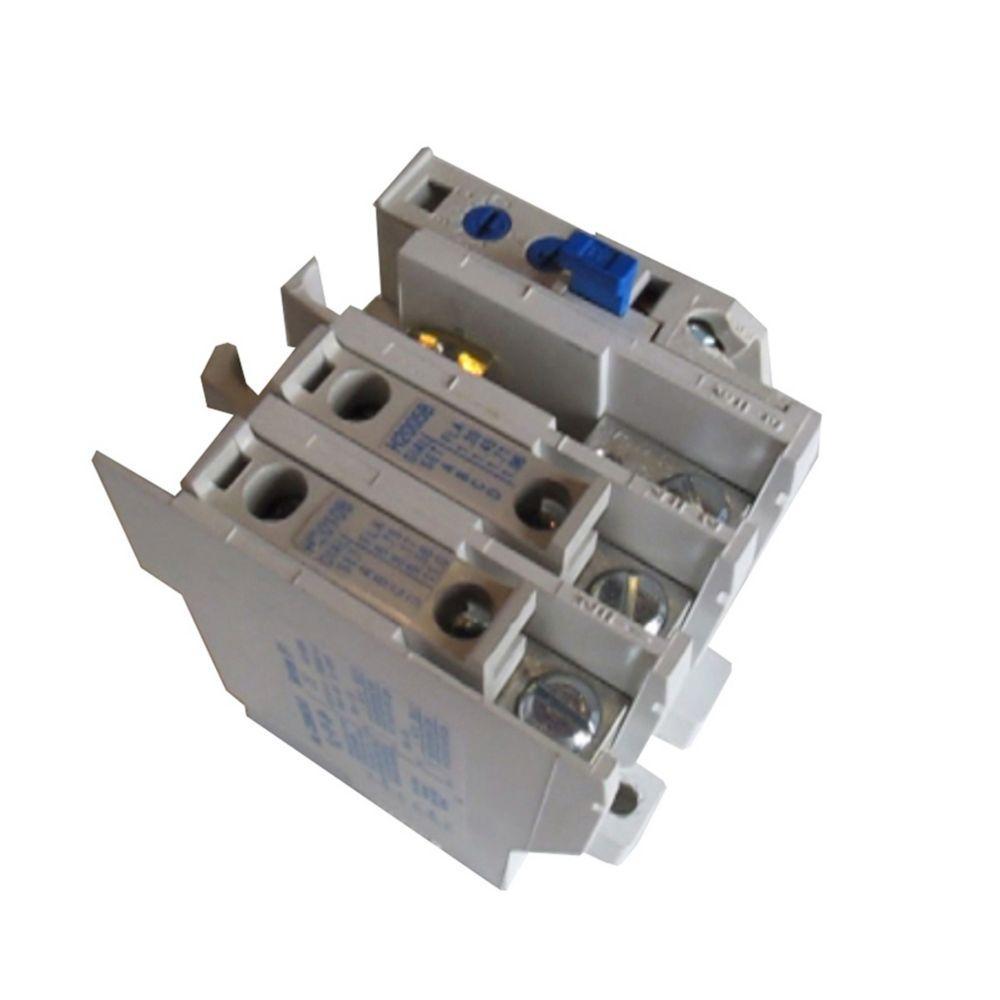

EATON C306DN3B Freedom Thermal Overload Relay, 20 to 39 A
C306 overload relays are designed for use with CE or CN non-reversing and reversing contactors. Four sizes are available for overload protection up to 144 A.
-
BrandEATON
-
UPC782113973234
-
Manufacturer Part NumberC306DN3B
-
CountryUSA
-
Terminal TypeStandard/Solid Copper
-
Mounting TypeDIN Rail/Panel
-
Amperage Rating20 to 39 A
-
SeriesFreedom C306
-
Number of Poles3
-
Enclosure TypeNEMA 00/0
- Heaters required
- Series B overload relays have load lugs built into relay base and will only accept series B heater packs
- These relays can be directly attached to a contactor or they can be DIN-rail or panel mounted using an adapter
-
Alternative Part Number7376174
-
UNSPSC39122330
-
IDEA Index ID7376174
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed,CSA Certified
-
Warranty1 year
-
