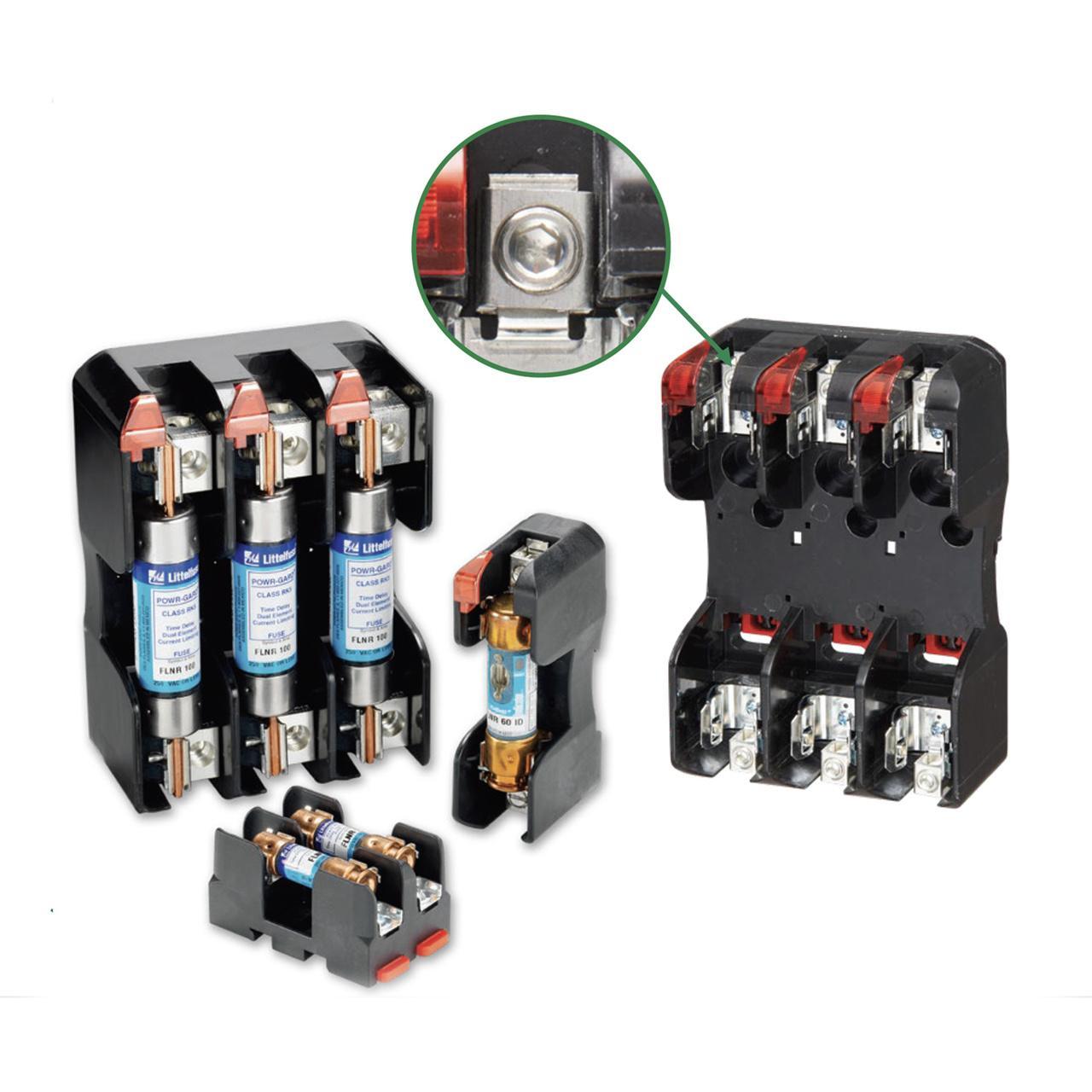

Littelfuse® POWR-GARD® LFR60200-1C Fuse Block, 600 V AC, 200 A, Class: R, 6 AWG to 250 kcmil Wire, 1 Poles
The new Littelfuse® class H and R blocks offer many advantages over previous generations that are noted in the features and benefits section. Class H and class R fuse blocks are dimensionally the same, but class R blocks incorporate A rejection feature, which only allows class R fuses to be inserted.
-
BrandLittelfuse®
-
UPC079458181449
-
Manufacturer Part NumberLFR60200-1C
-
CountryUSA|Canada
-
Temperature Rating130 deg C
-
MaterialThermoplastic
-
ClassR
-
Fuse Diameter1.874 in
-
Fuse Length7.126 in
-
Connection TypeBox Lug
-
Mounting TypeDIN Rail
-
Voltage Rating600 V AC
-
Amperage Rating200 A
-
SeriesLFR
-
Wire Size6 AWG to 250 kcmil
-
Number of Poles1
-
Dimensions9.62 in L x 3 in W x 2.85 in H
-
Suitable For Use WithFLSR/FLSR_ID, KLSR, LLSRK/LLSRK_ID and IDSR Series Fuse
- Universal mounting holes for easy replacement
- Only 1-hand is required to release from DIN rail (lock open lock closed)
- Reinforced fuse clips are standard on all class H and class R fuse blocks
- <0.6 mA at 600 VAC leakage current
- 200 kA rms symmetrical withstand rating
- Clip designs maximize electrical contact and minimize heat rise
- DIN rail releasable for all non-knife blade style fuses
- Lead (Pb) free
- Indication offered on most 250 and 600 VAC versions
-
Alternative Part Number11022959
-
UNSPSC39121629
-
IDEA Index ID11022959
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL Listed|CSA Certified|94 V-0 Flammability Rating|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.
-
