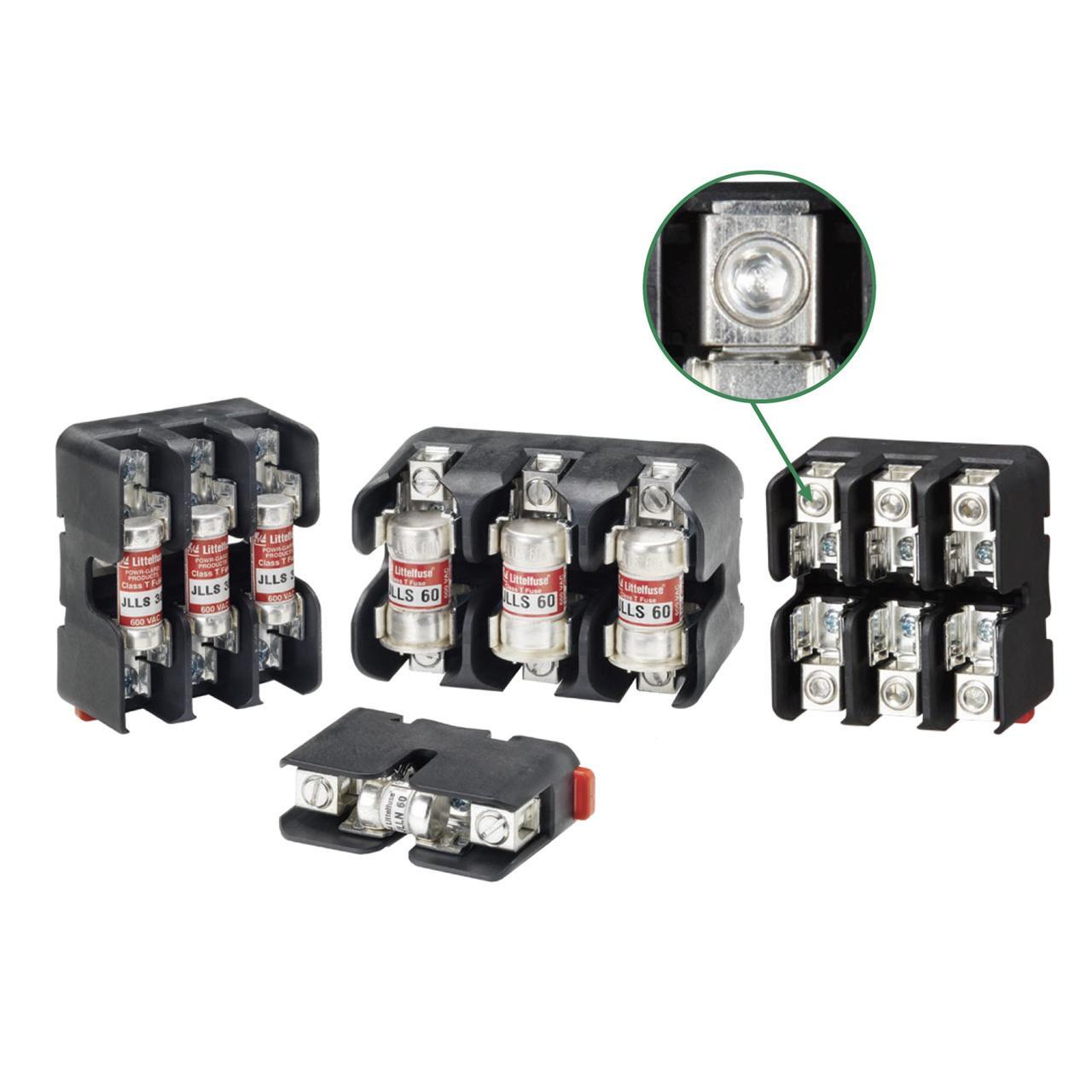

Littelfuse® POWR-GARD® LFT602003CS Fuse Block, 600 V AC, 200 A, Class: T, 6 AWG to 250 kcmil Wire, 3 Poles
The new Littelfuse® class T fuse blocks offer many advantages over previous generations that are noted in the features and benefits section. Of particular value is the space savings these new blocks provide.
-
BrandLittelfuse®
-
UPC079458182064
-
Manufacturer Part NumberLFT602003CS
-
CountryUSA|Canada
-
Temperature Rating130 deg C
-
MaterialPhenolic
-
ClassT
-
Fuse Diameter1.06 in
-
Fuse Length3.252 in
-
Connection TypeBox Lug
-
Mounting TypeDIN Rail
-
Voltage Rating600 V AC
-
Amperage Rating200 A
-
SeriesLFT
-
Wire Size6 AWG to 250 kcmil
-
Number of Poles3
-
Dimensions7-3/4 in L x 4-1/2 in W x 2-1/4 in H
-
Suitable For Use WithJLLS Series Fuse
- Compact design means increased space savings
- Universal mounting holes for easy replacement
- Reinforced fuse clips are standard on all class H and class R fuse blocks
- <0.6 mA at 600 VAC leakage current
- 200 kA rms symmetrical withstand rating
- Lead (Pb) free
- DIN rail releasable for all 30 to 60 A fuse blocks
- Only 1-hand is required to release from DIN rail (lock open lock closed)
- Molded phenolic base
- Steel reinforcing springs supplied as standard in order to provide low resistance connection and long-range reliability
- Larger blocks employ integral heat sink for maximum heat dissipation
- Covers available for most amperages to enhance safety
| Competitor Name | Cross-Reference Number |
|---|---|
| Grainger | 6MUW1 |
-
Alternative Part Number11126713
-
UNSPSC39121629
-
IDEA Index ID11126713
-
Package DescriptionEACH
-
Standards/ApprovalsRoHS Compliant|UL Listed|CSA Certified|94 V-0 Flammability Rating|PROP65: This product can expose you to chemicals including nickel, which is known to the State of California to cause cancer.
-
Specification Sheet
-
Owners/User Manual
