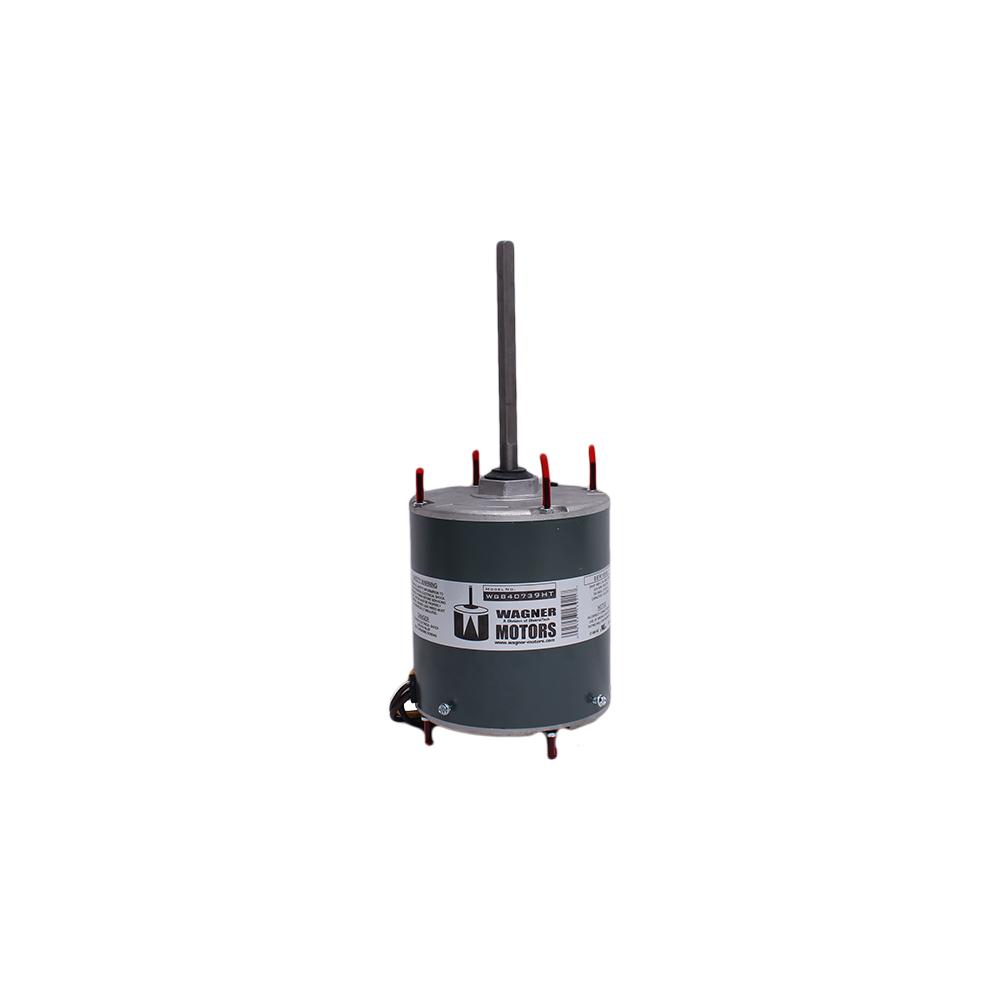

Diversitech WG840739HT High Temperature Condenser Fan Motor, 3/4 hp, 460 V AC, 60 Hz, 48 Frame, 1075 rpm Speed
These motors install with all standard 48 frame mounting brackets. They are a quiet operator and electrically reversible. There is an Automatic Thermal Overload Protector and they have class B insulation. They have 30 in leads and 60 Hz with low power consumption. The motor has a standard 48 frame motor casing size and has drain holes with plugs on both end plates. There is a continuous air over on this motor and a 70 deg C Ambient Design with Extended Studs.
-
BrandDiversitech
-
UPC095247139217
-
Manufacturer Part NumberWG840739HT
-
CountryUSA
-
Temperature Rating70 deg C Ambient
-
Frame48
-
Frequency Rating60 Hz
-
TypeHigh Temperature
-
RotationReversible
-
Voltage Rating460 V AC
-
Amperage Rating2.6 A Full Load
-
Application TypeCondenser Fan Motors
-
Horsepower3/4 hp
-
Bearing TypeBall
-
Number of Speeds1
-
Insulation ClassClass B
-
Speed1075 rpm
- Extended bolts - extended mounting bolts provides easier installation in cramped spaces and allows the installer to start the threaded mounting nut quickly and efficiently
- Supportive foam cradle - A unique styrofoam cradle inside the motor carton supports and protects the motor, shaft, and mounting bolts during shipment
- Large label - the informative product label contains the motor model number in large, easily identifiable type
- Capacitor size on box - the appropriate size of 370 VAC run capacitor is noted on every motor carton
- Ball bearings - fractional horsepower motors include ball bearings which allow greater heat endurance, improve performance, increase reliability, and enhance motor life
- Large wiring diagram - Detailed and large wiring diagrams are on the motor and the motor carton, and also in the installation and safety instruction sheet
- Carton handle - the motor carton has been designed with an innovative handle to make the motors much easier to carry
- For customer convenience, Wagner provides a complete manufacturer cross-reference on the side of every motor carton
- Insulated disconnects - run capacitor connections are insulated for increased safety
- The flag disconnects on condenser fan motors and inline disconnects on direct drive furnace blower motors are provided
- Easy-to-read packaging - the vibrant design of the fractional horsepower motor's packaging makes reading easy and direct
- The distributor can identify the stock of motors on the shelf with ease, the application, voltage, and horsepower of the motor are clearly visible
- Extended wires - Wagner motor wires are thirty inches long
- The added length makes it easier for the contractor to install the new motor
- Reversing plug - the electrical reversing plug simplifies rotation direction changes
-
UNSPSC26101105
-
Package Description90/PL
-
Warranty2 years
-
