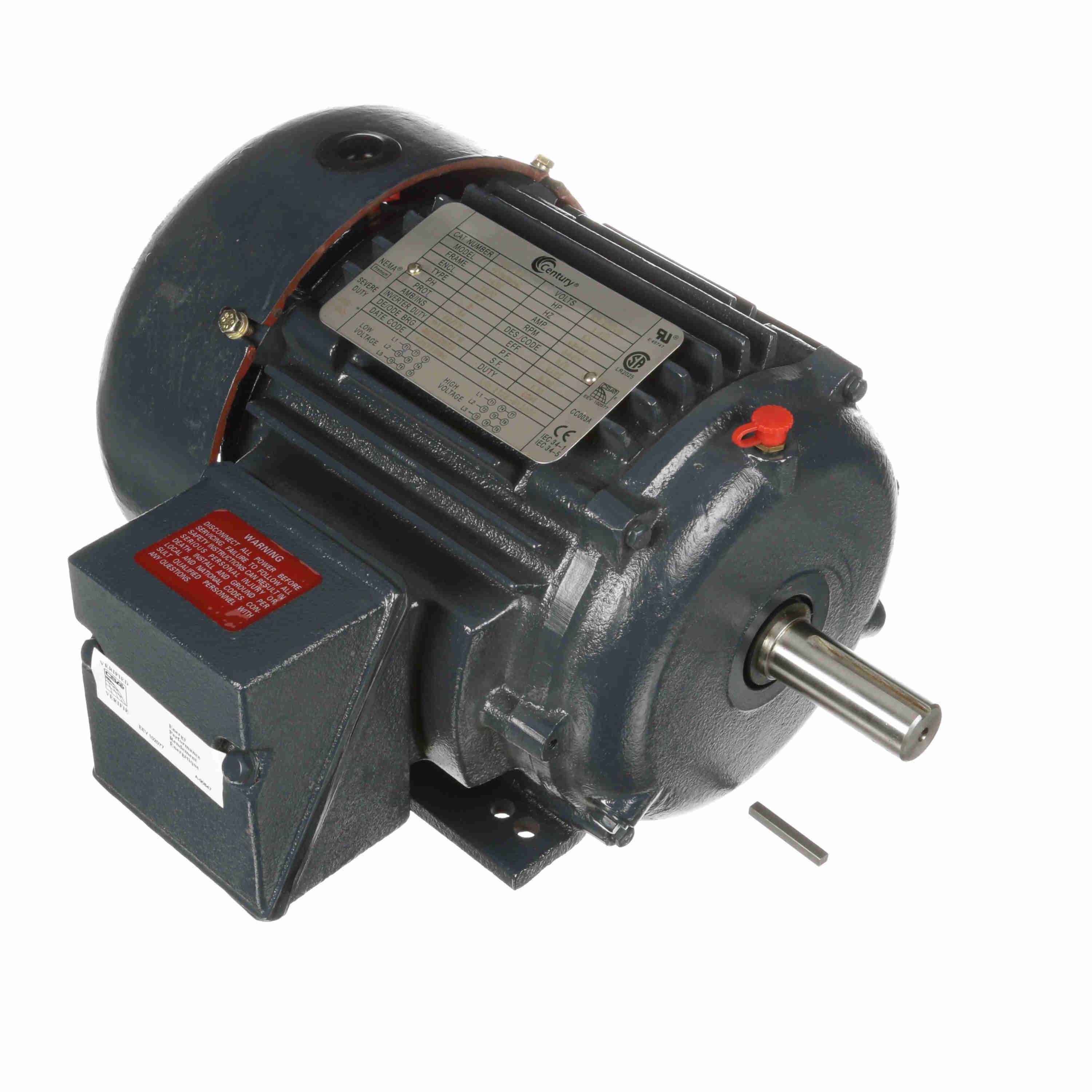

Century® SD112 4-Pole Continuous Duty Motor, Totally Enclosed Fan Cooled Enclosure, 5 hp, 208 to 230/460 V, 60 Hz, 3 Phase, 184T Frame, 1758 rpm Speed, Rigid Base Mount
-
BrandCentury®
-
UPC786674063540
-
Manufacturer Part NumberSD112
-
CountryUSA
-
Temperature Rating40 deg C
-
MaterialCast Iron
-
Frame184T
-
Frequency Rating60 Hz
-
Type4-Pole Continuous Duty
-
Mounting TypeRigid Base
-
RotationReversible
-
Voltage Rating208 to 230/460 V
-
Amperage Rating13.8 to 12.4/6.2 A
-
Service Factor1.15
-
Horsepower5 hp
-
Shaft Size1-1/8 in Dia x 2-3/4 in L
-
Dimensions16.14 in L x 13.45 in W x 12.07 in H
-
Bearing TypeBall
-
Insulation ClassClass F
-
Special FeaturesPolyphase Severe Duty Motor
-
Speed1758 rpm
-
Enclosure TypeTEFC
-
Phase3
- Severe duty
-
UNSPSC26101115
-
Standards/ApprovalsCE Certified|CSA Certified|UL Recognized
-
Line Drawing
-
Specification Sheet
-
Instruction/Installation Manual
