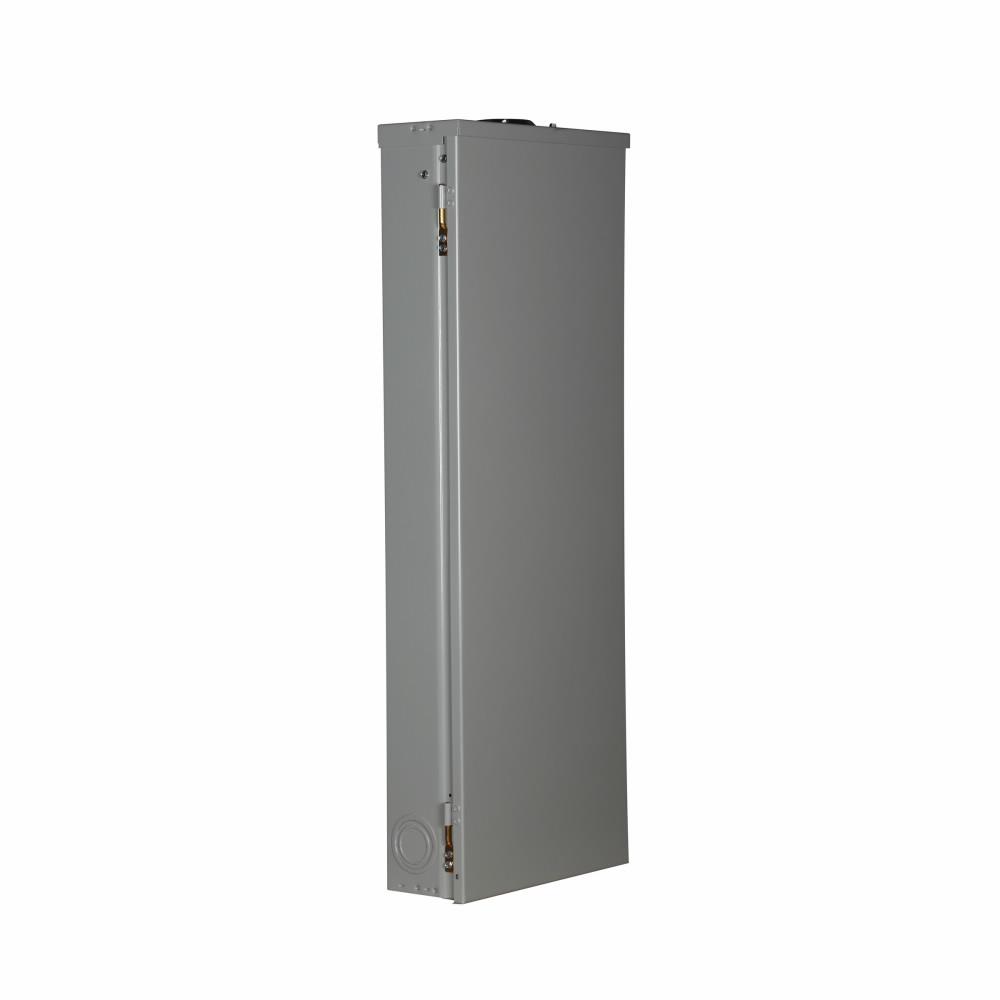

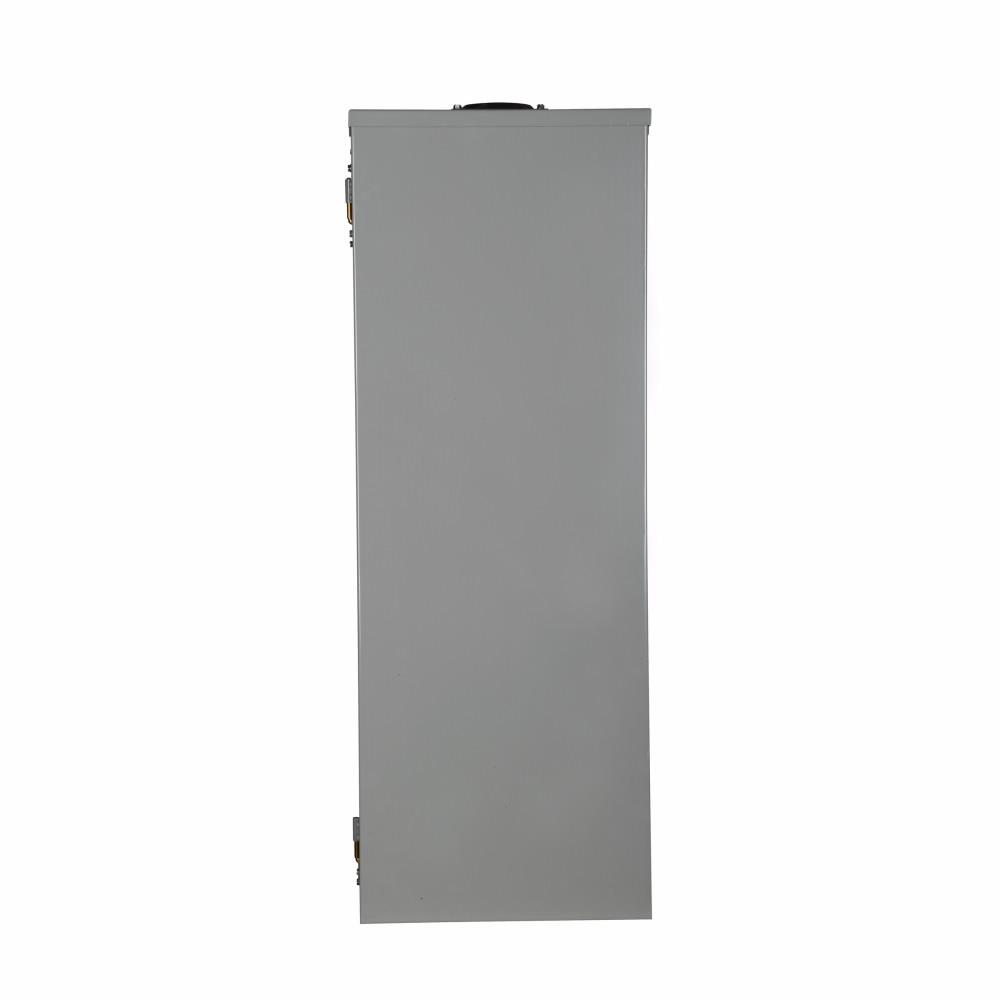

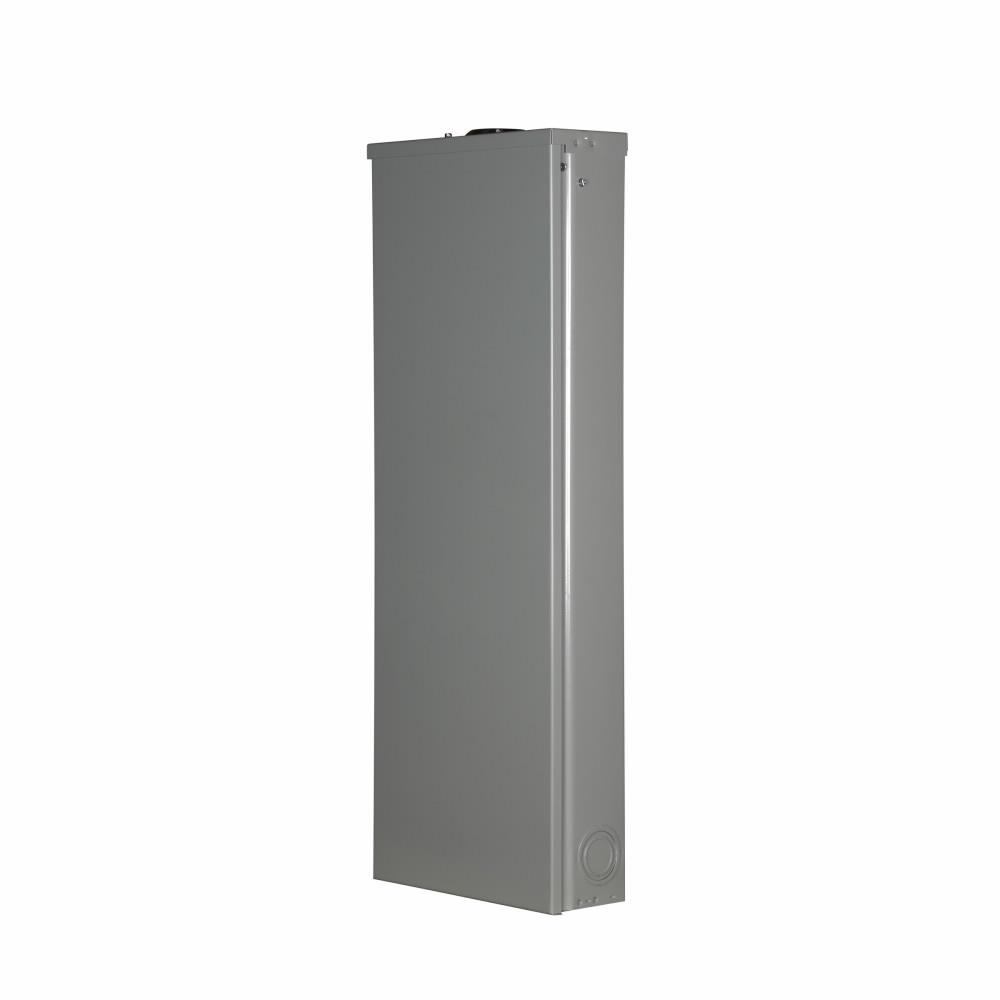

EATON BR4040B200R 1-Phase Metallic Main Circuit Breaker Loadcenter, 120/240 VAC, 200 A, 40 Poles, 25 kA Interrupt
Specially designed for easy installation, EATON BR 1 in load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786676446303
-
Manufacturer Part NumberBR4040B200R
-
CountryUSA
-
Type1-Phase Metallic
-
Mounting TypeFlush
-
Voltage Rating120/240 V AC
-
Amperage Rating200 A
-
Number of Circuits40
-
Wire Size2/0 AWG to 300 kcmil
-
Wiring Configuration3-Wire
-
Number of Poles40
-
Dimensions5.19 in L x 14.31 in W x 29.13 in H
-
Number of Spaces40
-
Interrupt Rating25 kA
-
Enclosure Box SizeNEMA D1R
-
Enclosure TypeNEMA 3R
-
Breaker TypeBR/BWH
- Flexible neutral design

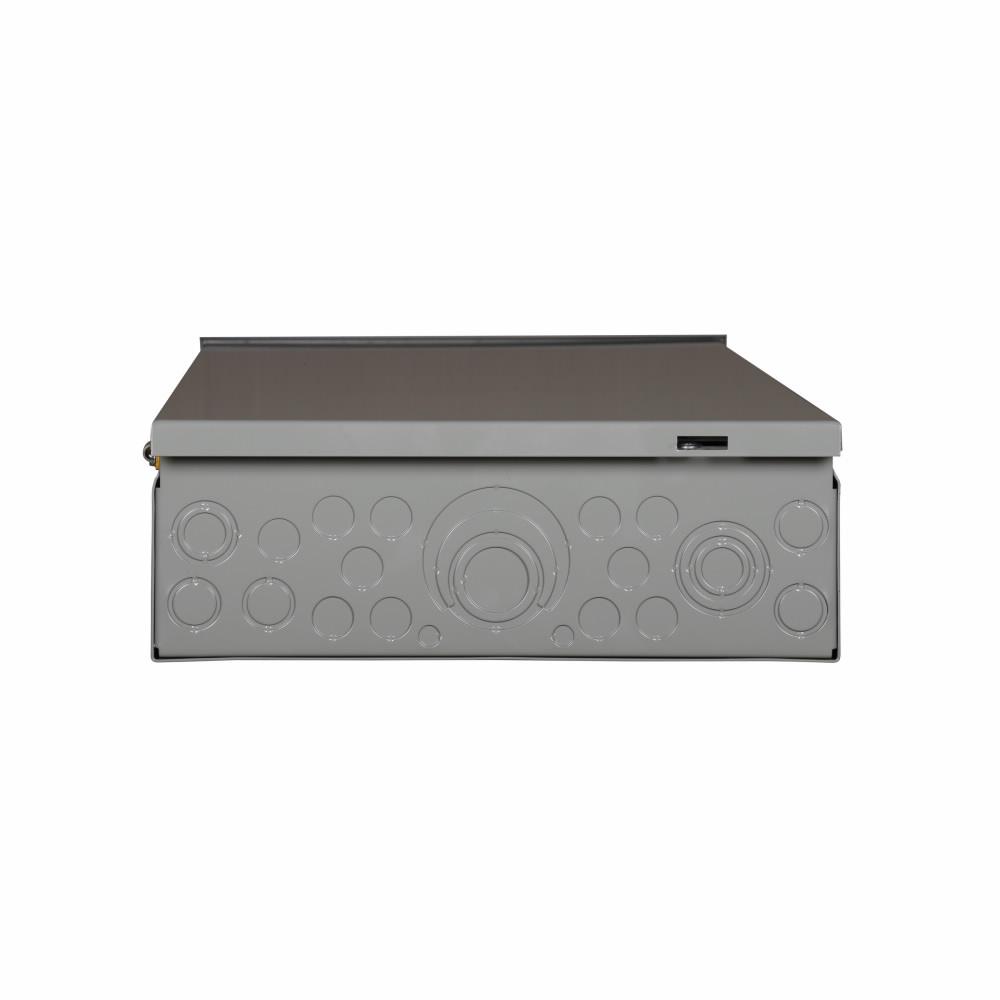

- Tangential main knockout
- Unique sandalwood finish provides an esthetically appealing, scratch-resistant powder coating
- Factory pre-attached neutral bonding strap
- Bottom or top feed location

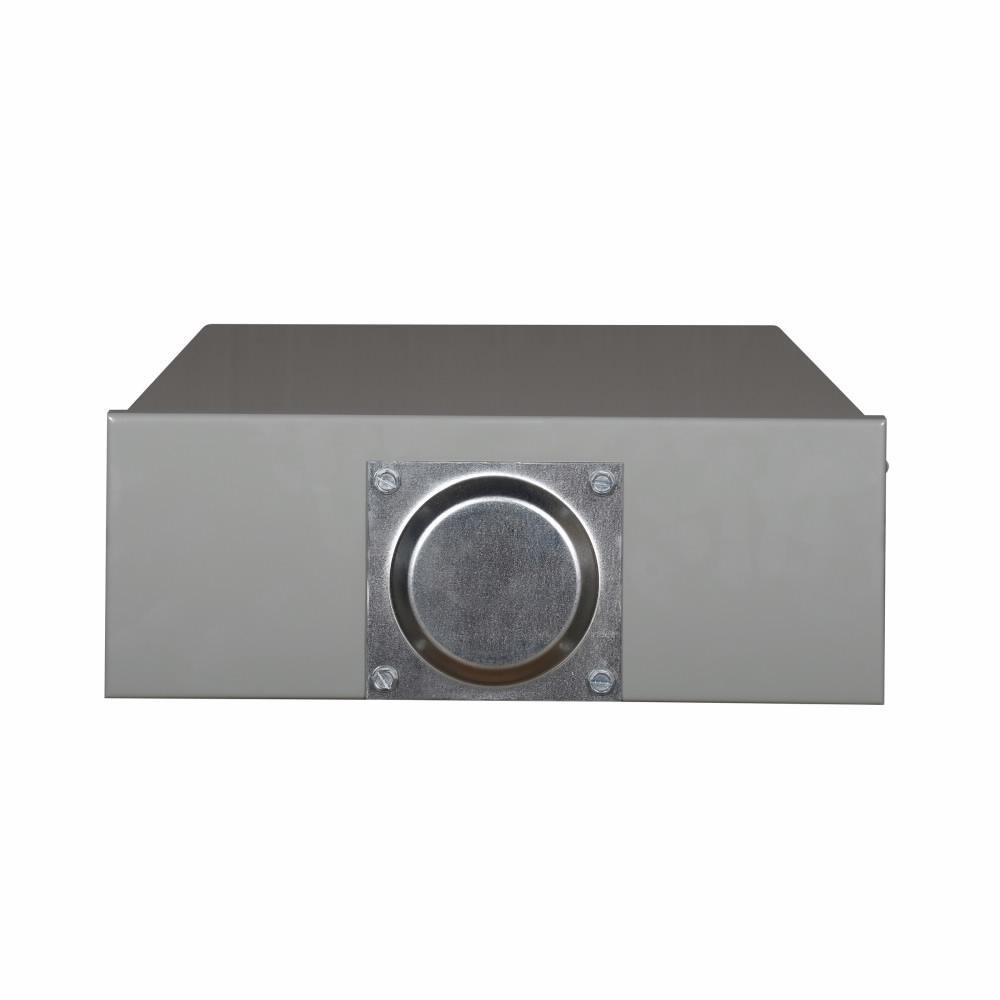

- Rainproof panels are furnished with hub closure plates, for rainproof hubs
- For use with type BR 1 in breakers
- Outdoor rainproof enclosure
- Copper aluminum wire at 60 to 75 deg C for main breakers
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- No feed through lugs
-
Alternative Part Number7437034
-
UNSPSC39121101
-
IDEA Index ID7437034
-
IncludesGround Bar and Interlock Cover
-
Package Description1/PK
-
Standards/Approvals2008 NEC 312.8|UL 50/67|UL E52977|UL E8741
-
Warranty10 years
-
Specification Sheet
-
Instruction/Installation Manual
-
Catalog
