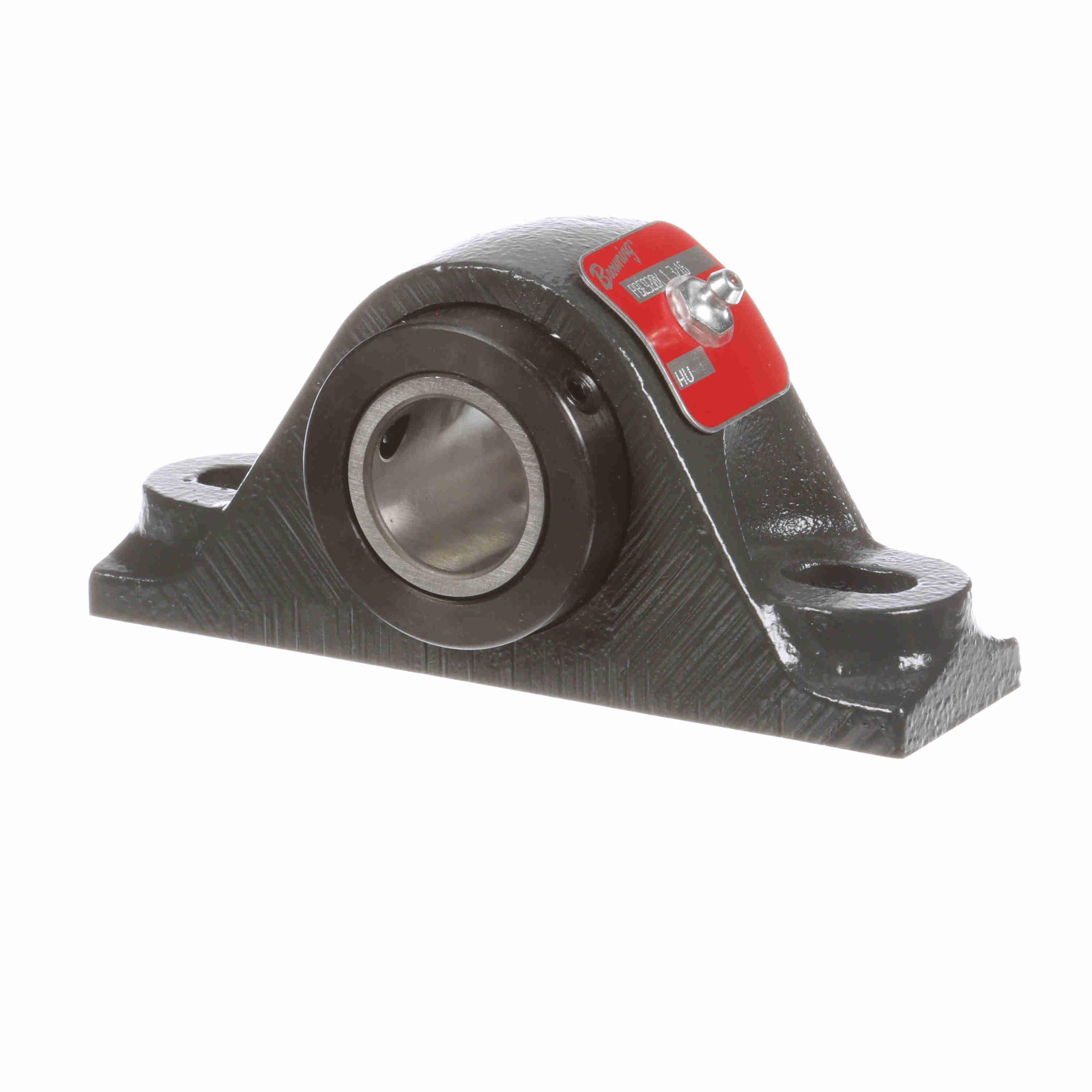

Browning 1-3/16"-ID 2-BOLT TRB PILLOW BLOCK BRW PBE-920 X 1.3/16
Browning® E920 series mounted tapered roller bearings feature durable 1-piece non-expansion housings with Type E mounting dimensions and limited misalignment. The E920 series contains setscrew locking collars for easy installation. It also contains a contact face riding seal in order to provide a good balance between contaminant entry, grease retention and friction. Depending on your application requirements, these bearings are available in a wide variety of bore sizes and housing configurations.
-
BrandMcGill®
-
UPC662289546756
-
Manufacturer Part Number0000730000
-
CountryUSA
-
Load Capacity2975 lb Dynamic
-
Locking DeviceDouble Set Screw Collar
-
Temperature Rating-20 to 200 deg F
-
FinishGray Painted
-
MaterialCast Iron
-
Maximum Speed3500 rpm
-
TypeHeavy Duty Type SR
-
Mounting TypeTwo-Bolt Base
-
Seal TypeContact
-
SeriesPBE920
-
Base Width1-7/8 in
-
Base to Bore Centerline1-1/2 in
-
Bolt Center-to-Center Length4-5/16 to 5 in
-
Bore Diameter1-3/16 in
-
Bore TypeRound/Tapered
-
Expansion TypeNon-Expansion (Fixed)
-
Overall Height3 in
-
Overall Length6-3/8 in
-
Overall Width2-3/4 in
- AMBA standard 18.2 precision rating
- Precision ground inner ring
- Powder coat epoxy 2-bolt cast iron housing
- Rubber contact face riding seals rotate with the shaft to help retain lubricant and help exclude contaminants
- Oil hole and annular lubrication groove
- Durable 1-piece cast iron housings provide support load
- Semi-solid housing base
- Steel retainer
- Double-collar interlock with 120 deg spacing setscrew lock, diamond faceted setscrews
- Narrow width configuration
- Thru hardened precision ground rings construction
- For use with Cagerol and Guiderol bearings
-
Alternative Part NumberMI 7 N|PBE920X 1 3/16
-
UNSPSC31171511
-
Package DescriptionEACH
-
Standards/ApprovalsAMBA Standard
-
