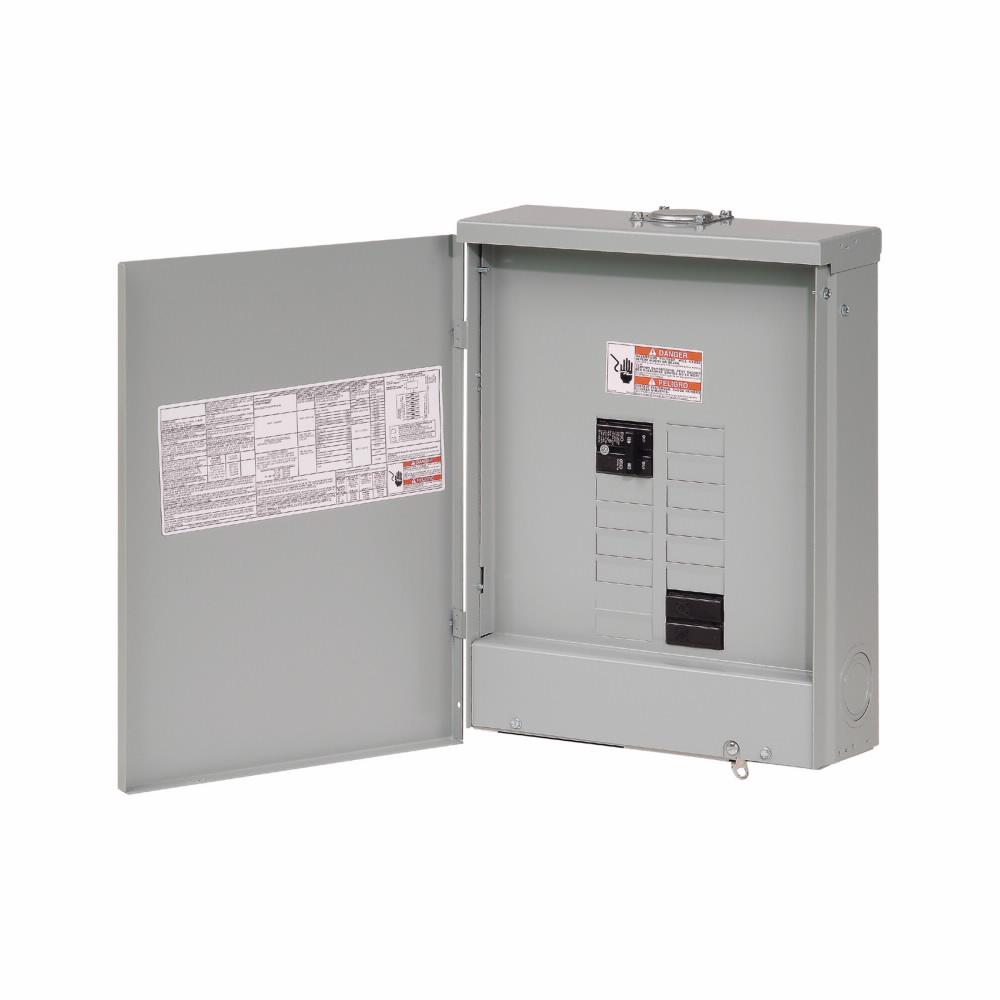

EATON BR1020B100RF 1-Phase Main Circuit Breaker Loadcenter, 120/240 VAC, 100 A, 20 Poles, 10 kA Interrupt
Specially designed for easy installation, EATON BR 1 in loadcenters house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786676443609
-
Manufacturer Part NumberBR1020B100RF
-
CountryUSA
-
Type1-Phase
-
Mounting TypePlug-In
-
Voltage Rating120/240 V AC
-
Amperage Rating100 A
-
SeriesBR Series
-
Number of Circuits20
-
Wire Size4 to 1/0 AWG Aluminum/Copper
-
Wiring Configuration3-Wire
-
Number of Poles20
-
Dimensions20-1/2 in L x 15-1/2 in W x 5-3/4 in H
-
Number of Spaces10
-
Interrupt Rating10 kA
-
Enclosure Box SizeNEMA B2R
-
Enclosure TypeNEMA 3R
-
Breaker TypeBR
- Flexible neutral design
- Tangential main knockout
- Unique sandalwood finish provides an esthetically appealing, scratch-resistant powder coating
- Factory pre-attached neutral bonding strap
- For use with type BR 1 in breakers
- Outdoor rainproof enclosure
- Copper aluminum wire at 60 to 75 deg C for main breakers
- Standard tin plated aluminum bus for excellent conductivity and corrosion-resistance
- Feed through lug
-
Alternative Part Number7436759
-
UNSPSC39121101
-
IDEA Index ID7436759
-
IncludesBR3RDOOR2 Cover and BR3RDF1 Dead front
-
Package DescriptionEACH
-
Standards/ApprovalsUL 50/67
-
Warranty10 years
-
Catalog
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
