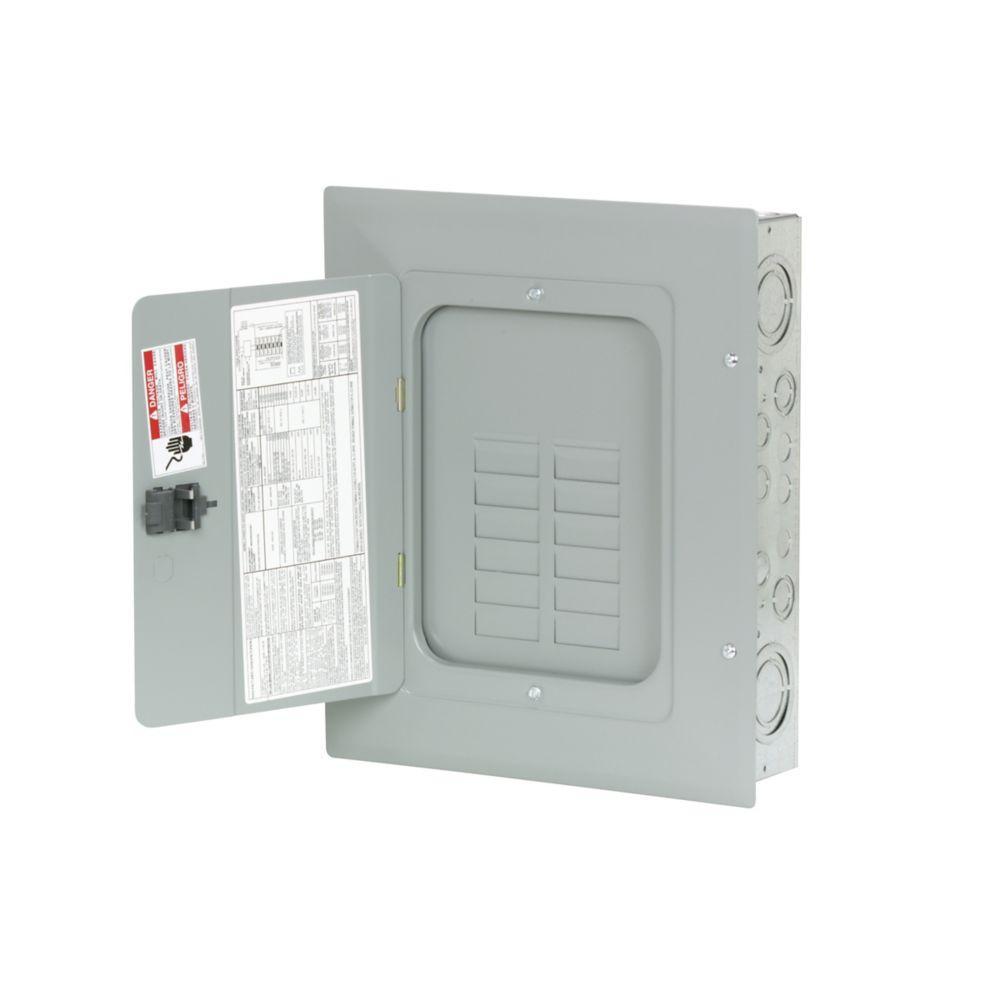

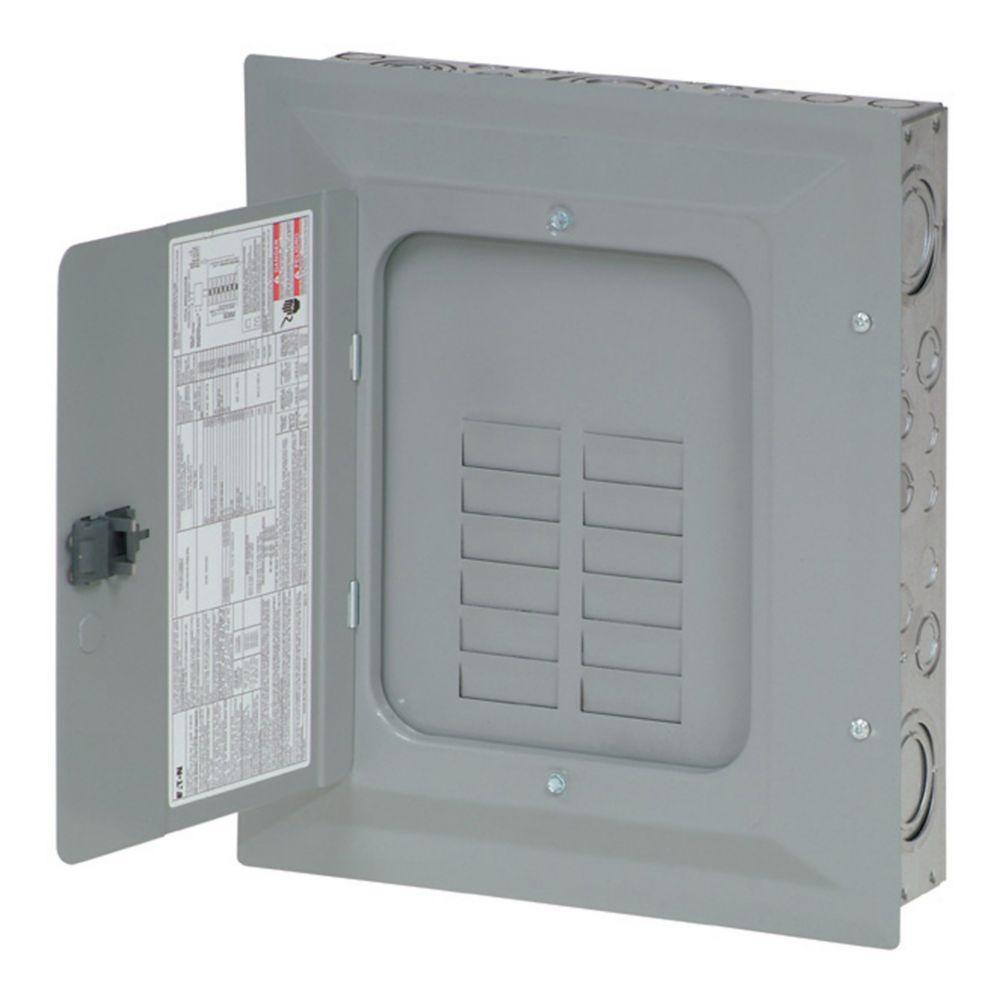

EATON BR1224L125 1-Phase Main Lug Loadcenter, 120/240 V AC, 125 A, 24 Poles, 10 kA Interrupt
Specially designed for easy installation, Eaton's BR 1-inch load centers house the branch circuit breakers and the wiring required to distribute power to individual circuits. They serve as main breaker for service entrances or as main lug when adding circuits to existing service. The main breaker protects the entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.
-
BrandEATON
-
UPC786676446556
-
Manufacturer Part NumberBR1224L125
-
CountryUSA
-
Type1-Phase
-
Mounting TypeCombination
-
Voltage Rating120/240 V AC
-
Amperage Rating125 A
-
Number of Circuits24
-
Wire Size6 to 2/0 AWG
-
Wiring Configuration3-Wire
-
Housing MaterialMetal
-
Number of Poles24
-
Dimensions3.88 in L x 14.31 in W x 16.75 in H
-
Number of Spaces12
-
Interrupt Rating10 kA
-
Enclosure Box SizeNEMA B1
-
Enclosure TypeNEMA 1
-
Breaker TypeBR
- No feed-through
- Aluminum bus material
- 1-phase
- Used with type BR 1 in breakers
- Has notch for BREQS125 hold down kit
- Combination cover style
- Suitable for use as service equipment when not more than six main disconnecting mains are provided and when not used as a lighting and appliance panelboard
- Insulated/bondable split neutral type
- 1 in maximum space
| Cross-Reference Number |
|---|
| 519834 |
-
Alternative Part Number7437070
-
UNSPSC39121101
-
IDEA Index ID7437070
-
Package DescriptionEACH
-
Standards/ApprovalsUL 50,UL 67
-
Specification Sheet
-
Instruction/Installation Manual
-
Owners/User Manual
