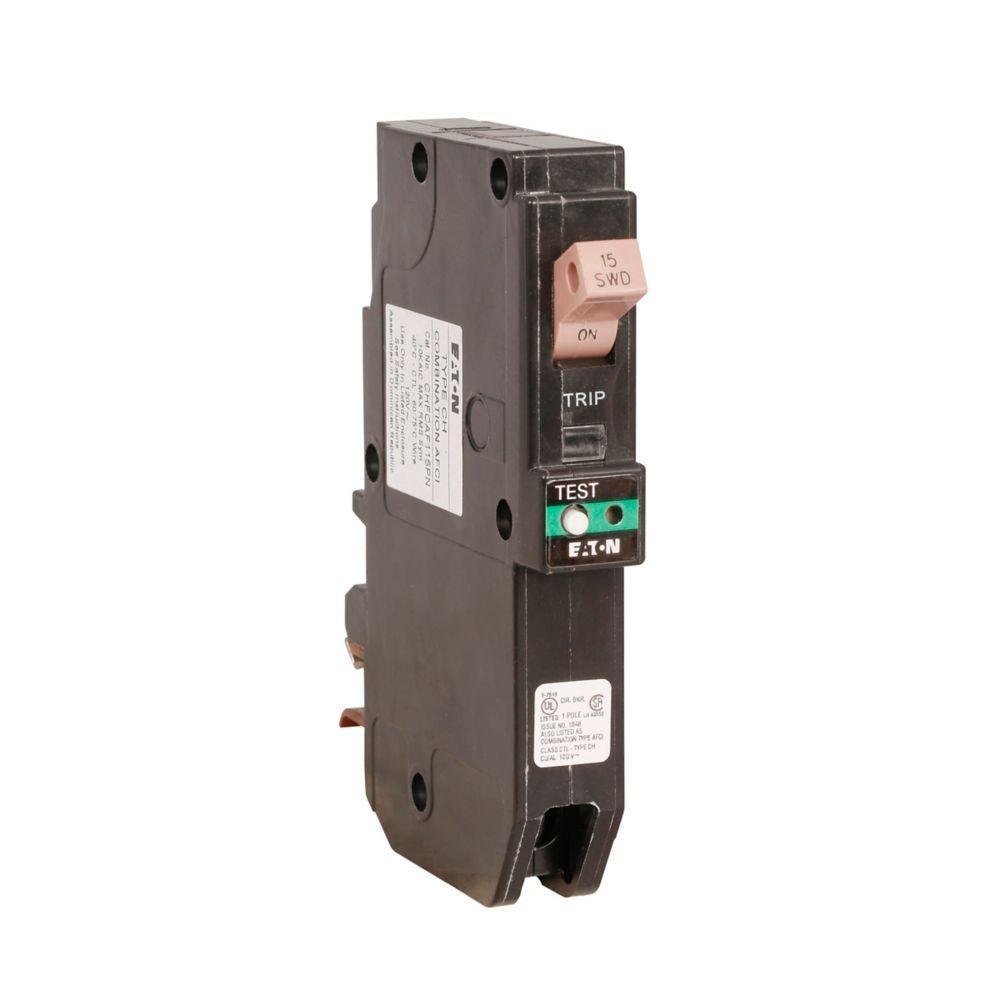

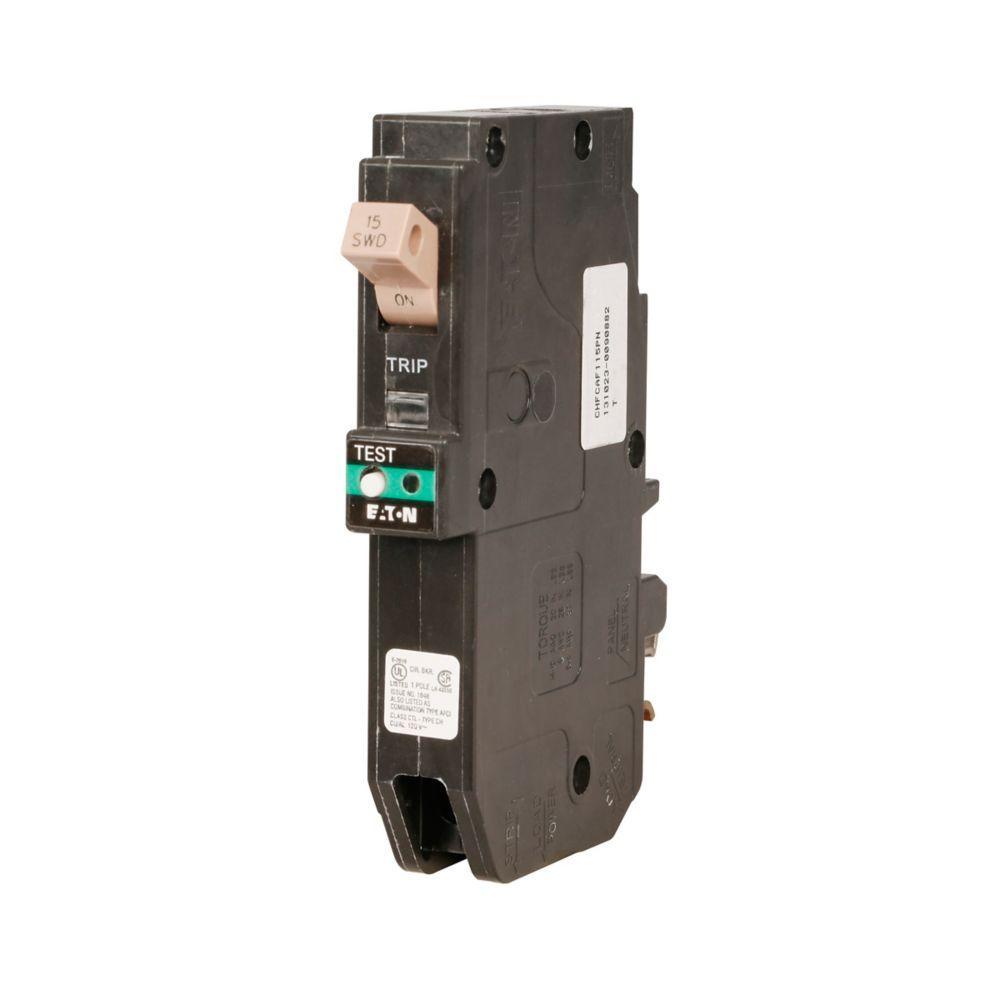

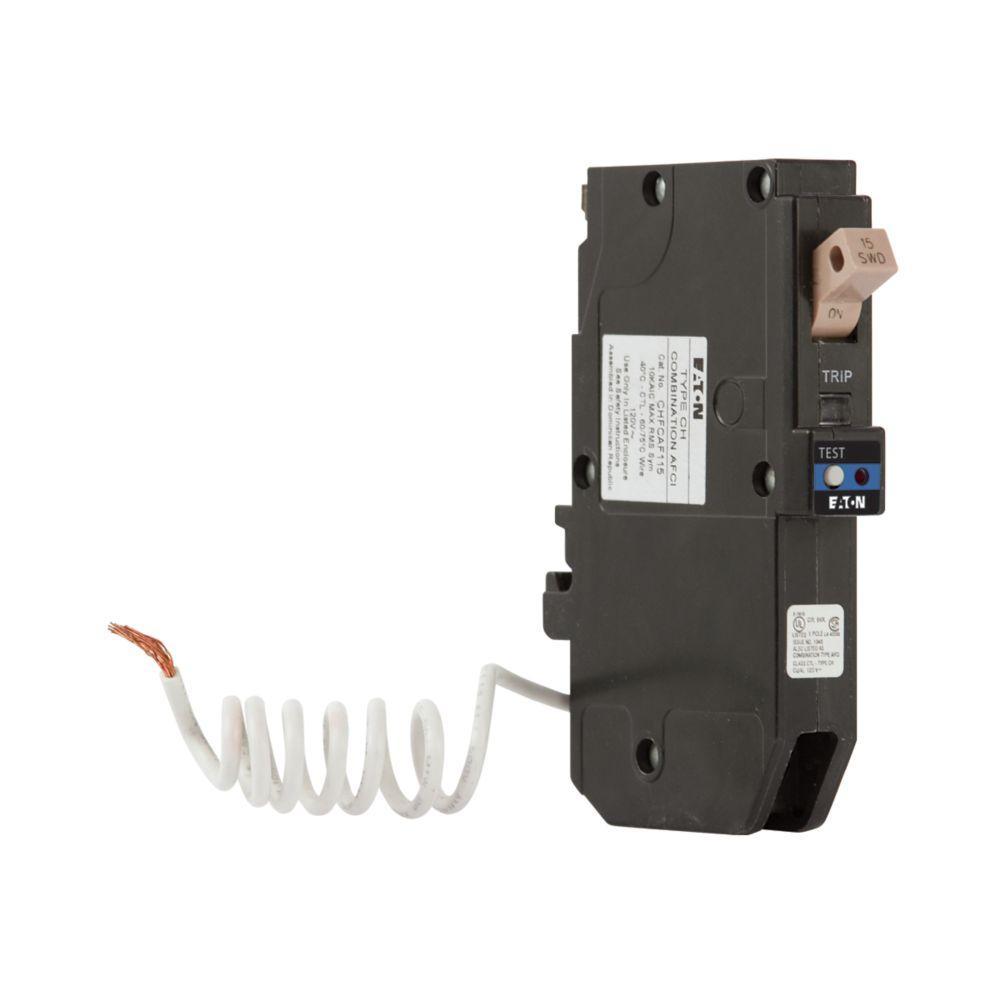

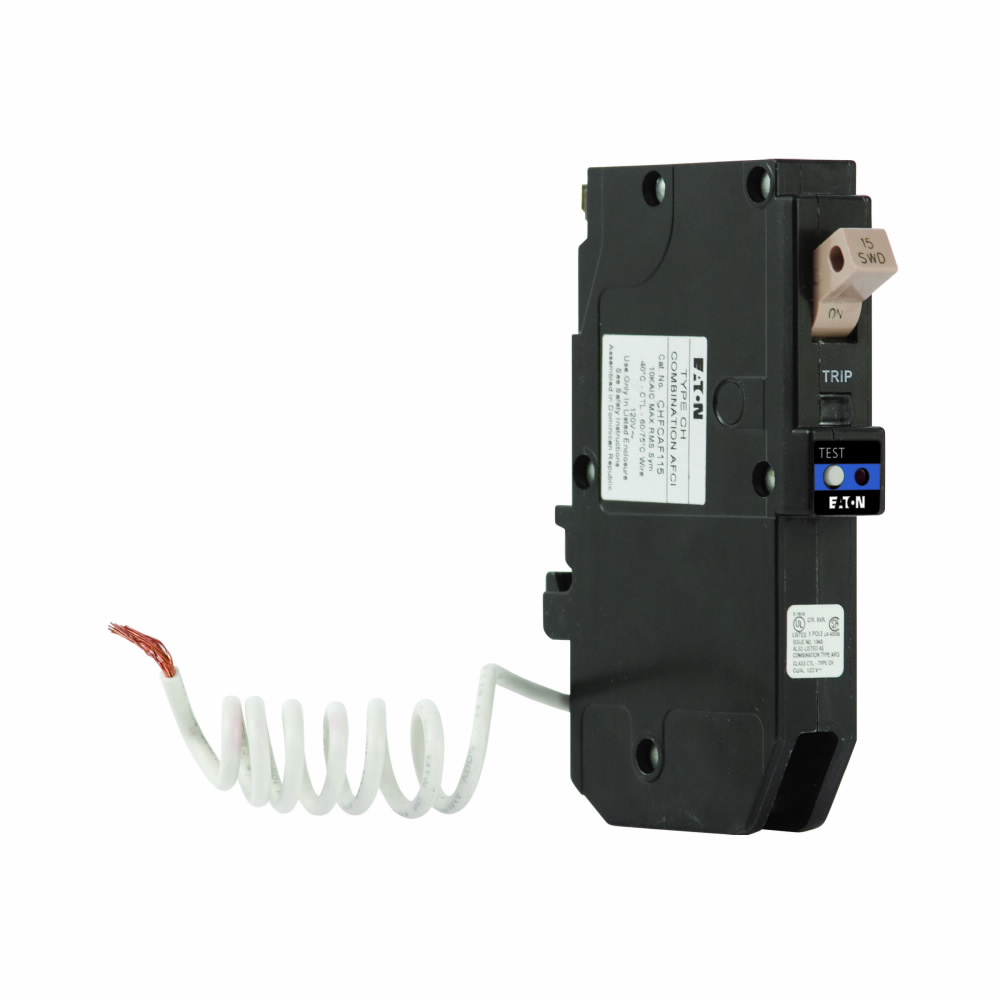

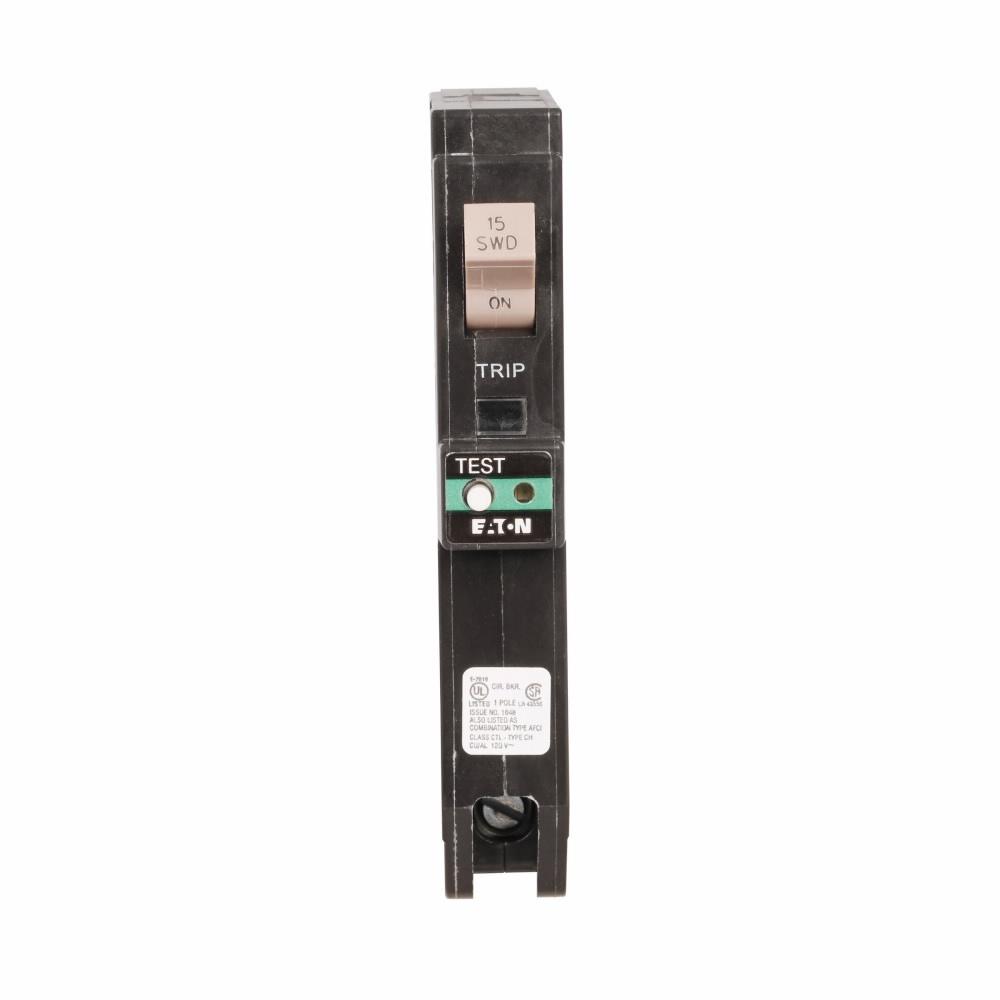

EATON CHFCAF115 Type CH Combination Standard Arc Fault Circuit Breaker, 120/240 V AC, 15 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Eaton's residential CH circuit breakers provide premium overload protection. The Type CH circuit breakers trip to the OFF position, eliminating nuisance callbacks. The CHF family also includes a trip flag to differentiate between a trip and the breaker being turned off. The thermal-magnetic trip curve avoids nuisance tripping on mild overloads while reacting almost instantaneously to severe short-circuit conditions. Multiple breakers have an internal common trip connection to operate all poles simultaneously. Handles are marked with ON-OFF indication and ampere rating of the breaker.
-
BrandEATON
-
UPC786685546179
-
Manufacturer Part NumberCHFCAF115
-
CountryUSA
-
Trip TypeThermal Magnetic
-
TypeType CH Combination Standard
-
Connection TypePigtail
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating15 A
-
Number of Poles1
-
Dimensions3-1/2 in L x 1 in W x 3 in H
-
Interrupt Rating10 kA
-
Phase1
-
Alternative Part Number12072440
-
UNSPSC39121603
-
IDEA Index ID12072440
-
Package DescriptionEACH
-
Standards/ApprovalsUL Listed,HACR Rated
-
Specification Sheet
-
Catalog
