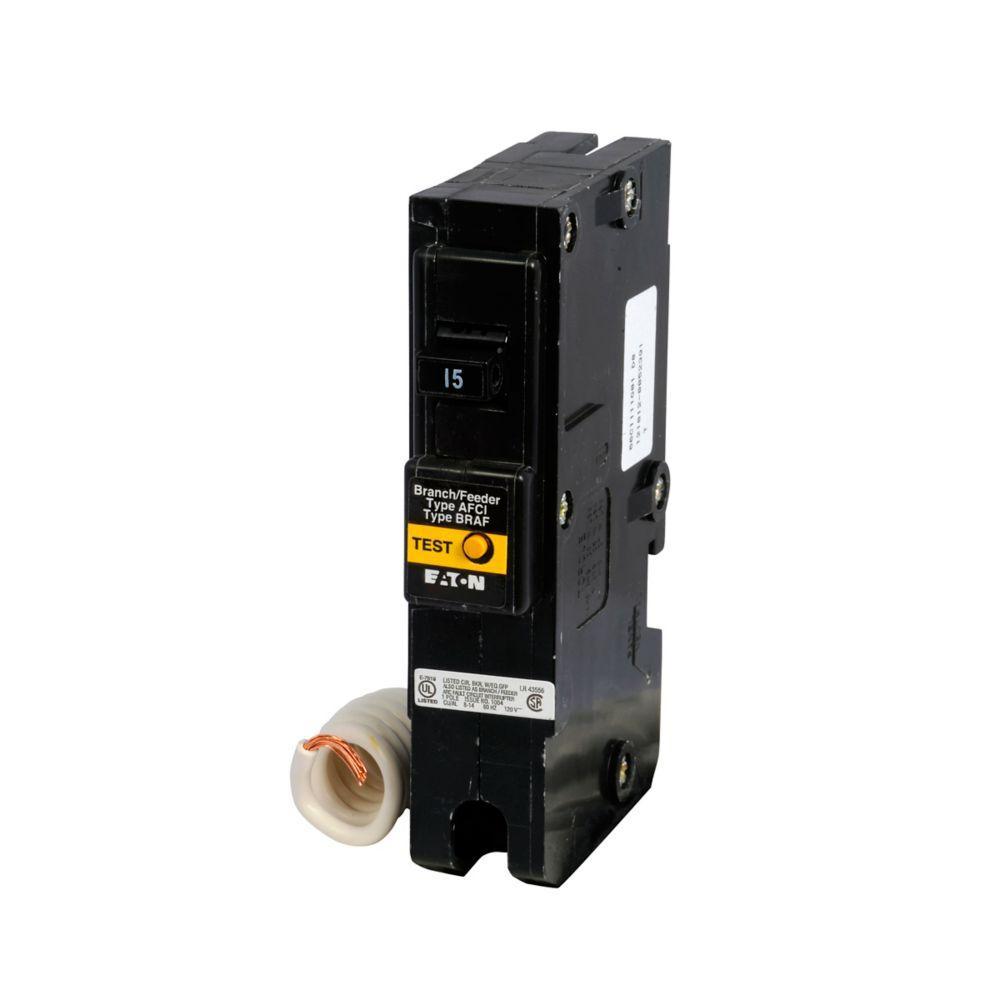

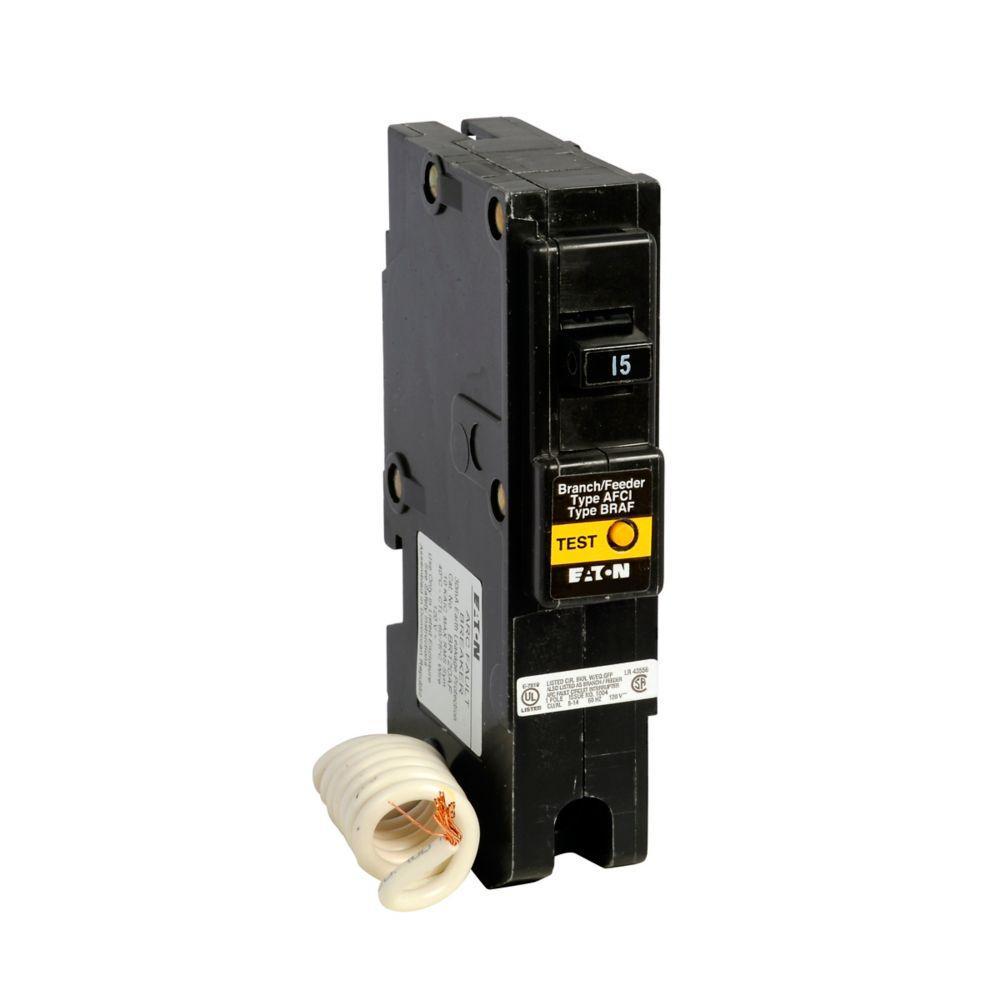

EATON FIRE-GUARD® BR115AF Type BR Arc Fault Circuit Breaker, 120/240 V AC, 15 A, 10 kA Interrupt, 1 Poles, Thermal Magnetic Trip
Eaton's residential BR Circuit Breakers are used in load centers, panelboards, or similar devices. They are made for a wide range of applications and include: BR 1" circuit breakers and accessories for BR-style load centers; arc fault circuit interrupters (AFCI); and ground fault circuit interrupters (GFCI).
-
BrandEATON
-
UPC782114231494
-
Manufacturer Part NumberBR115AF
-
CountryUSA
-
Temperature Rating60 to 75 deg C
-
Trip TypeThermal Magnetic
-
TypeType BR
-
Mounting TypePlug-On
-
Voltage Rating120/240 V AC
-
Amperage Rating15 A
-
Wire Size14 to 4 AWG
-
Number of Poles1
-
Dimensions3 in L x 4-3/4 in W x 1-1/4 in H
-
Interrupt Rating10 kA
-
Phase1
- For use with type BR loadcenters
-
Alternative Part Number7364037
-
UNSPSC39121601
-
IDEA Index ID7364037
-
Package DescriptionEACH
-
Standards/ApprovalsUL 1699
-
