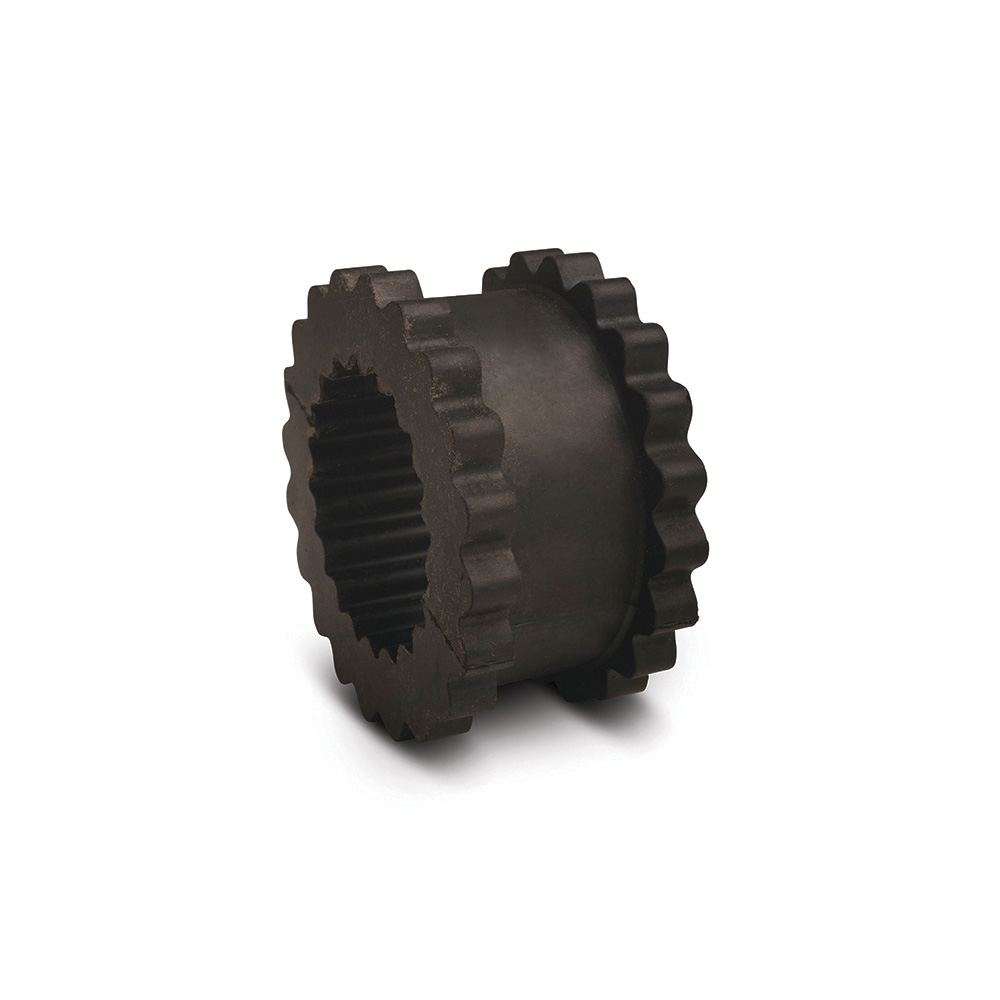

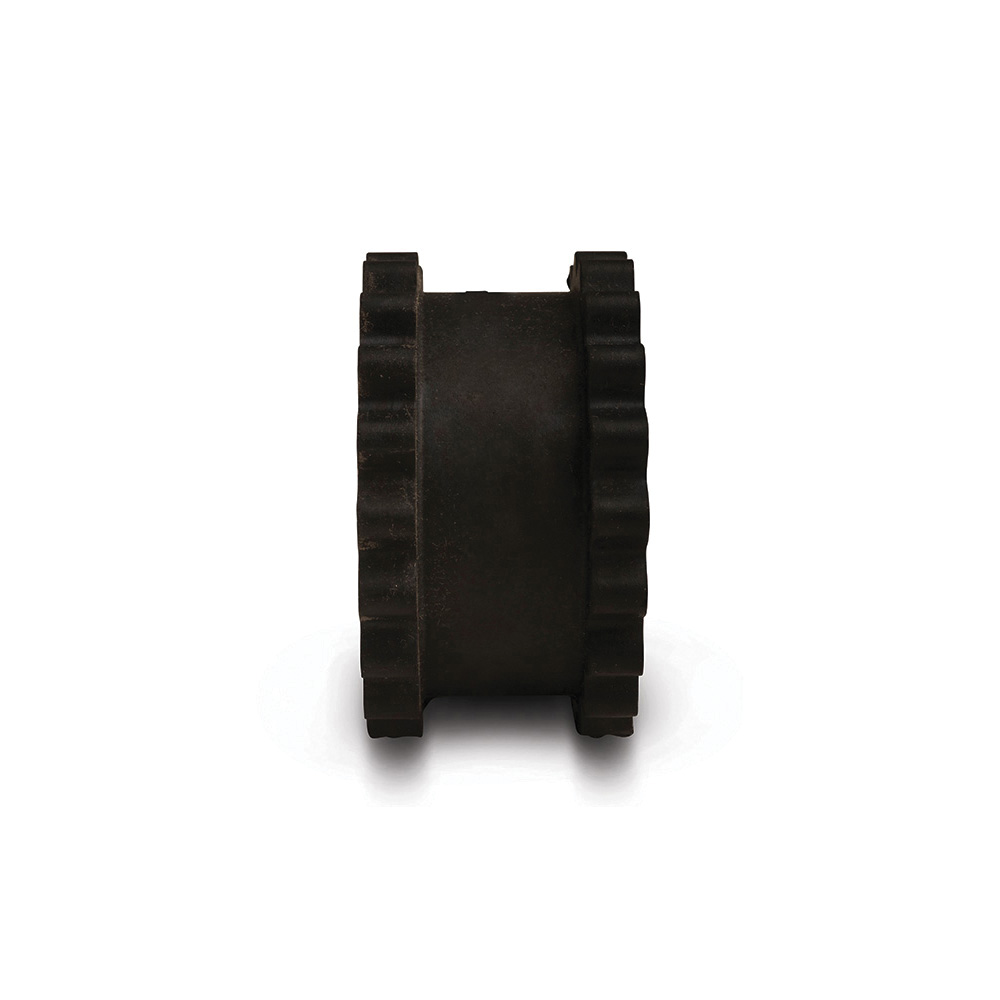

T.B. Woods COUPLING SLEEVE TBW 3-JN
Our new Sure-Flex® Plus EPDM and neoprene sleeves are best-in-class for coupling performance and value. Their 4-way flexing action absorbs virtually all types of shock, misalignment and end float. With Sure-Flex® couplings, the need for lubrication and maintenance is eliminated.
-
BrandTB Wood's®
-
UPC698672920223
-
Manufacturer Part Number3JN
-
CountryUSA
-
Temperature Rating-0 to 200 deg F
-
FinishBlack with Green Dot
-
MaterialNeoprene
-
Maximum Speed9200 rpm
-
Torque Rating78 in-lb
-
Type1-Piece Solid Type JN
-
Coupling Size3
-
Inside Diameter3/8 to 7/8 in
-
Outside Diameter1-7/8 in
-
Length1 in
-
Suitable For Use WithSure-Flex® Plus Flange and Elastomeric Coupling
-
UNSPSC31163000
-
Standards/ApprovalsCE Certified|PROP65: This product contains lead, known to the State of California to cause cancer and birth defects or other reproductive harm.
-
Catalog
-
Instruction/Installation Manual
Recently Viewed
Our new Sure-Flex® Plus EPDM and neoprene sleeves are best-in-class for coupling performance and value. Their 4-way flexing action absorbs virtually all types of shock, misalignment and end float. With Sure-Flex® couplings, the need for lubrication and maintenance is eliminated.

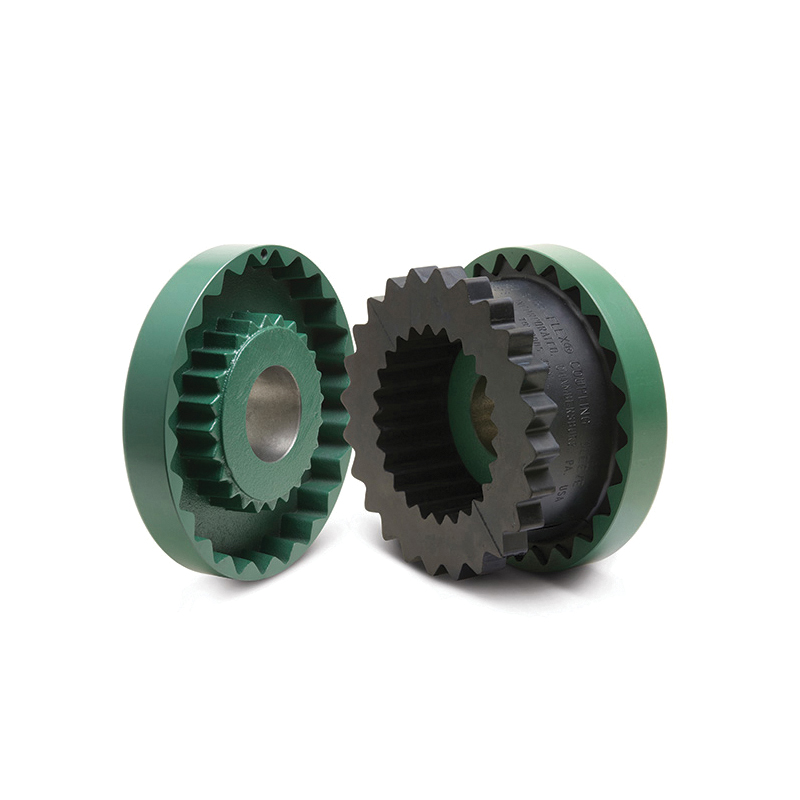

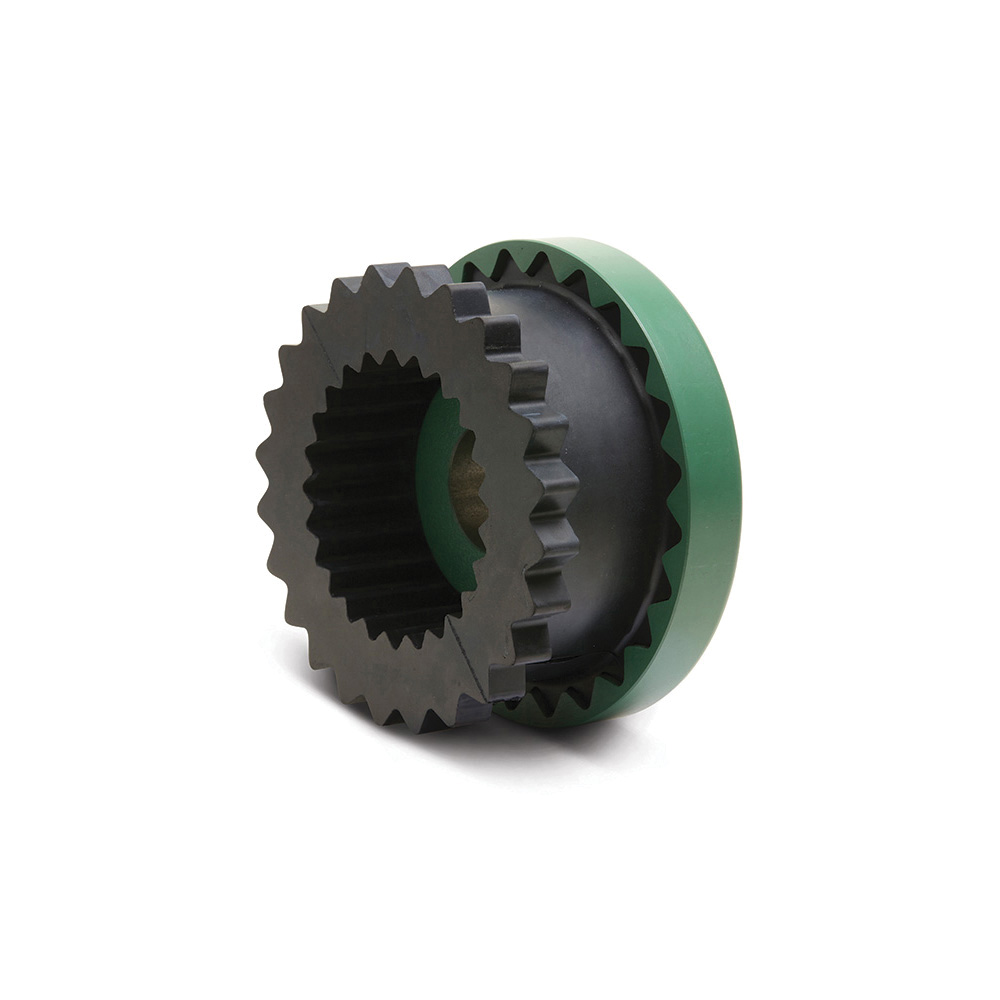

Type J flanges sizes 3, 4 and 5 are manufactured of sintered carbon steel. The powdered metal manufacturing process provides high dimensional accuracy and uniform material properties for high strength. Size 6 is made of high strength cast iron. Flanges are bored-to-size for a slip fit on standard shafts. The outside face of the flange is precision machined, allowing the surface to be used to align the coupling without special tools.
